This guide provides step by step instructions for the configuration of Bandwidth Control on a Siretta router. These instructions may be used with any Siretta router. This document explains how to set bandwidth limits for specific devices attached to the router in order to control overall data usage on the cellular network.
The following products were used to create this document: –


• QUARTZ-W22-UMTS (EU) + ACCECSORIES
• CAMERA DCS-932L
• PC for configuration both Camera and router
• Data enabled sim card
Steps to configure bandwidth control:


1. Insert data enabled sim card into the router and configure it as explained in the Router Quick Start guide (separate document)
2. Once the router is connected to a the cellular DATA networked ready to transfer data, it will have been assigned an IP address by the cellular network (10.136.164.140 in this example).

3. Attach the camera to be bandwidth controlled (DCS-932L) to one LAN port of the router.
4. Navigate to a device list on the router GUI and you will see the listed devices as per the screenshot below which indicates MAC and local IP addresses of the devices attached to the router.

Note: Mac address of the camera is 28:10:7B:24: B8:E7


5. Navigate to advanced network tab of the router GUI.
6. Navigate to the Bandwidth Control sub-tab.
7. Check the “Enable Control” box.
8. Enter the MAC address of the device you wish to bandwidth control. In this example is the camera with MAC address of 28:10:7B:24: B8:E. Also enter values for DL Rate, DL Ceil, UL Rate, UL Ceil and Priority.
9. Click Add, you will be presented with the screenshot below.



10. Table below explains parameters used in configuring bandwidth  control.

Max Available Download Rate Limit all the devices which are connected to the router
Max Available Upload Rate Limit all the devices which are connected to the router
IP/ IP Range/MAC Address Limit a specific user rata by IP/IP Range/ MAC Address
DL Rate Download rate
DL ceil Max download rate
UL Rate Upload rate
UL ceil Max upload rate
Priority The priority of a specific user
Default Class Limit the other devices which are not limited in the MAC/ IP list.
     Note: –
DL rate range between 1 and 999999
DL Ceil range between 1 and 999999
UL rate range between 1 and 999999
UL Ceil range between 1 and 999999
Select priority from: –
• Lowest
• Low
•  Normal
•  High
• Or Highest from the drop-down menu.

11. Click save and waits for the service to restart.

12. Now the setting is complete, Camera bandwidths is controlled by router.
Note: –
Multiple devices can be added using the similar way as described in this document.

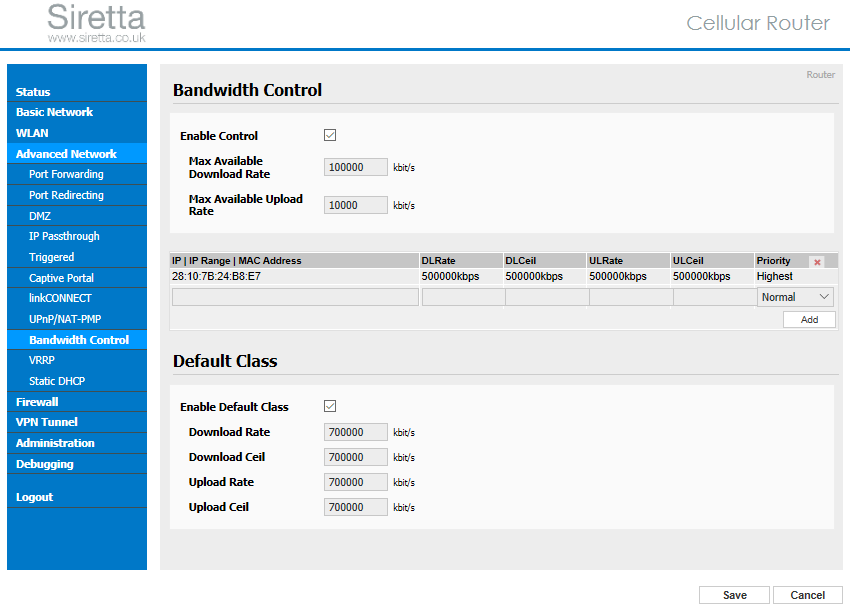

13. Default Class can be enabled by checking “Enable Default Class” check box on step 10 above.
14.  Enter default parameters of your choice (700000 used for the purpose of this guide).
15. Click save and waits for the service to restart.
16. Now the setting is complete with Default Class Enabled.
Note: The purpose of default class is to limit the other devices which are not limited in the IP/MAC address lists. For example in this guide camera (DCS-932L) and PC connected to the router as seen in step 5 above, we have   limited camera with “IP/ IP Range/MAC Address” list, and the default class is enabled, this limit will work for the  PC.
This application note can be used for setting other devices than stated in the document.
