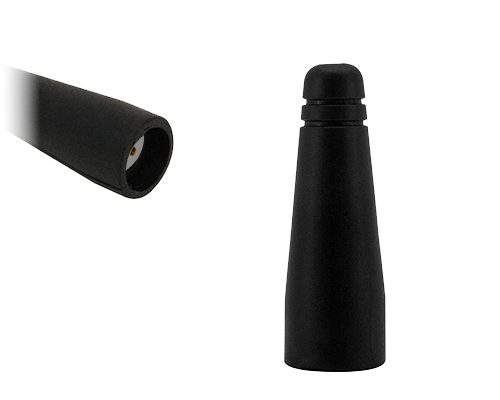

Delta 10AWiFi / WLAN Stubby Antenna

The Delta 10A series is a dedicated family of ¼ wave, omni-directional stub antennas tuned to a centre frequency of 2.4GHz and a peak gain of 1dBi.

The Delta 10A is popular choice for portable equipment and radio modules with its small size. The antenna connector is recessed to form a skirt down onto the equipment.

Key Features

• Rubber over-moulded, flexible whip antenna
• SMA Male and SMA Male RP
• Tuned to 2.4GHz
• Rubber over-mould with skirt
• Rugged construction for portable equipment
• Ideal for many popular radio modules and equipment
• Optimised for use on 2.4GHz equipment
• Meets all EU compliance criteria for electronic goods

Electrical Specifications

• Temperature range:-30 – +75°C
• Impedance: 50 Ohm
• Gain: 1 dBi
• Bandwidth:  100 MHz
• VSWR: <2
• Polarization: Vertical
• Frequency Range: 2400 – 2500MHz
• Radiating Element: ¼ wave dipole

Mechanical Specifications

• Dimensions: L38 x W14mm Ø
• Connector: SMA or SMA RP
• Antenna Length: 40mm
• Mounting method: Direct Connect
