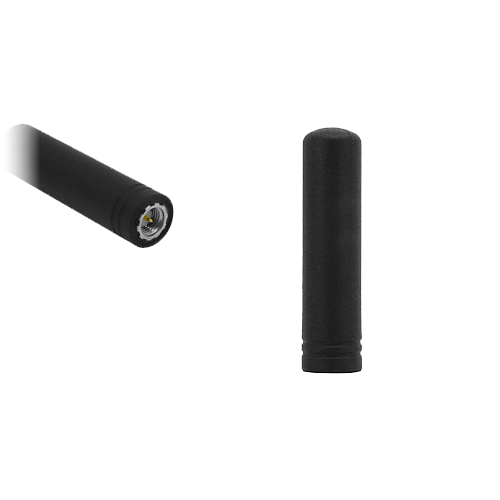

The Delta 60 is a compact, stubby terminal-mount GNSS antenna designed for direct connection via its SMA male connector. The antenna integrates a 4-axis ceramic helix with an active low noise design, providing reliable right-hand circularly polarised gain across the top hemisphere for strong satellite reception and reduced fix times.
Encapsulated in a rugged TPU housing, the Delta 60 is well suited to demanding outdoor and mobile environments. Its lightweight, space-efficient design makes it an ideal choice for vehicles, handheld receivers, IoT trackers and portable navigation devices.
Supplied as standard with an SMA male connector. Alternative connector types can be specified for high-volume projects.
Key Features
- Supports GPS L1, Galileo E1, BeiDou B1C and QZSS L1 for reliable global coverage
- Stubby terminal mount design with SMA male connector for easy installation
- Top hemisphere RHCP Gain of 7 -12 dBi (typical) for strong GNSS signal reception
- Wide voltage range 1.4 to 3.6 V DC with very low power consumption for extended device life
- Compact 12.4 × 50.4 mm form factor ideal for handheld and mobile applications
- Lightweight 8 g construction reducing strain on portable and embedded devices
Typical Applications
- Vehicle and fleet tracking units
- Handheld GNSS receivers
- Portable navigation systems
- IoT tracking and telemetry devices
- Rugged outdoor GNSS modules
Electrical Specifications
- Impedance: 50 Ω
- Polarisation: RHCP
- Frequency: 1575.42 MHz (GPS L1, Galileo E1, BeiDou B1C, QZSS L1)
- VSWR: <1.5
- Ground Plane Independent: Yes
- RHCP Gain (Top Hemisphere): 4.3 dBiC average, 12.1 dBiC peak
- Supply Voltage: 1.4 – 3.6 V DC
- Current Consumption: ~4 mA
Environmental Specifications
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5 % non-condensing
Mechanical Specifications
- Dimension: Ø12.4 × 50.4 mm
- Weight: 8 g
- Connector: TPU rubber
- Cable: SMA male straight
- Mounting Methods: Terminal mount
