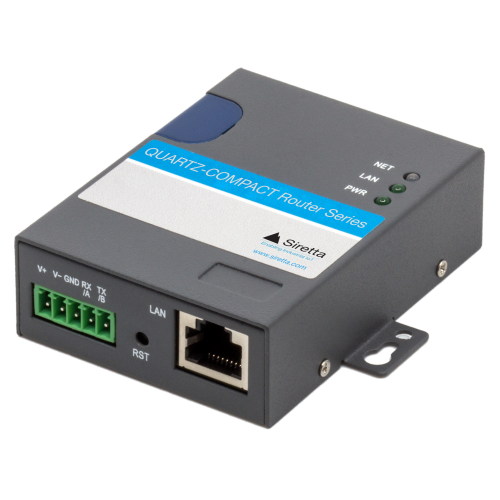

The QUARTZ-COMPACT-UMTS router is an ultra compact, high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-COMPACT-UMTS fast data transfer capability reaches up to 21Mbps download and up to 5.76Mbps upload speed. It also has fallback to 2.5G communication should 3G/ UMTS be unavailable. It is well suited for IoT/mobile broadband applications, offering reliable, secure wireless connectivity.

The QUARTZ-COMPACT-UMTS router is a robust design, coming in a ultra compact sized, metal enclosure, making it ideal for deployment in industrial embedded applications where space is at a premium. Cellular coverage is designed to match European frequencies. The QUARTZ-COMPACT-UMTS software means VPN security is supported, allowing the router to be used in commercial as well as industrial applications.

The QUARTZ-COMPACT-UMTS router meets many of the needs for management of remote communication and therefore has applications in security, digital signage, CCTV, vending, street furniture, traffic control, telemetry, parking systems &  environmental monitoring.

The QUARTZ-COMPACT-UMTS router comes equipped with a single SIM slot, single 10/100 ethernet LAN port and a serial port. Setting up the router is quick and easy – simply insert your SIM card and connect the antennas. Power up the router and connect to the internet by entering the correct APN settings in the web interface. The router will then connect and provide high speed 3G mobile broadband internet.

  • European 3G / UMTS bands
  • High speed data via UMTS network
  • Strong resistance to electromagnetic interference
  • Built-in watch dog, multi-link detection
  • Ultra Compact Industrial Design
  • Excellent temperature endurance
  • VPN: PPTP, L2TP, GRE, IPSec
  • 1 x LAN, 1 x Serial port
  • Optional GPS

2G
GSM
3G
UMTS
CLI
Telnet
DHCP
Server
EU
Coverage
GPRS
Enabled
GPS
Position
IP
Services
LAN
Single Port
LED
Status
PSU
6V to 32V
SNMP
Manage
SSH
Manage
TEMP
-30 to +70 C
VPN
Tunnel
WIN
Linux/MAC

UMTS Network Coverage
B1 (2100MHz)
B8 (900MHz)

Mechanical Specifications
Operating temperature range: -30 to 70°C
Storage temperature range: -40 to 85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces
1 × 10/100Mb LAN interface
1 × RS-232 console port
2 × SMA antenna interface
1 × Standard mini SIM interface (2FF)
1 × Standard DC power interface

Power and Consumption
Power Supply: 5V – 32V DC

Certification
CE
RoHS
CCC

Datasheet

QUARTZ-COMPACT-UMTS Datasheet

Manuals

QUARTZ Family Quick Start Guide
QUARTZ-COMPACT Hardware Manual
QUARTZ-COMPACT Software Manual

Ordering Information

Siretta Part Number: 60744
Description: QUARTZ-COMPACT-11-UMTS (EU) Compact single port router

Request For Quote

Siretta Part Number: 60450
Description: QUARTZ-COMPACT-11-UMTS (EU) Compact single port router with accessory kit (Connecting cables and Antennas)

Request For Quote
