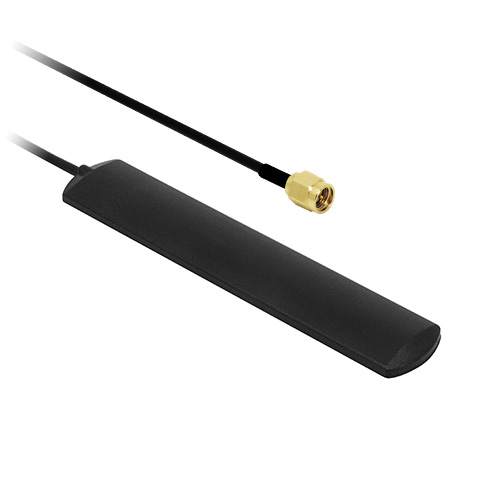

Alpha 105G / 4G / Bluetooth / Zigbee Adhesive Blade Antenna

The Alpha 10 is a slim, blade antenna measuring 116 x 21.5 x 4mm, which is suitable for mounting on any non-metallic surface using the adhesive base.

The Alpha 10 achieves a reputable gain of 3 – 5 dBi in sections of the RF spectrum typically used for Industrial IoT applications, helping to improve the short-range signal transmission/reception of Wi-Fi modems, Bluetooth gadgets or low power Zigbee sensors.

Typical applications are for smart energy meters, alarm panel equipment or on the side of telemetry equipment. However, this antenna will suit a wide variety of environments and applications.

Custom cable lengths and alternative connector types can be supplied for volume orders.

Key Features

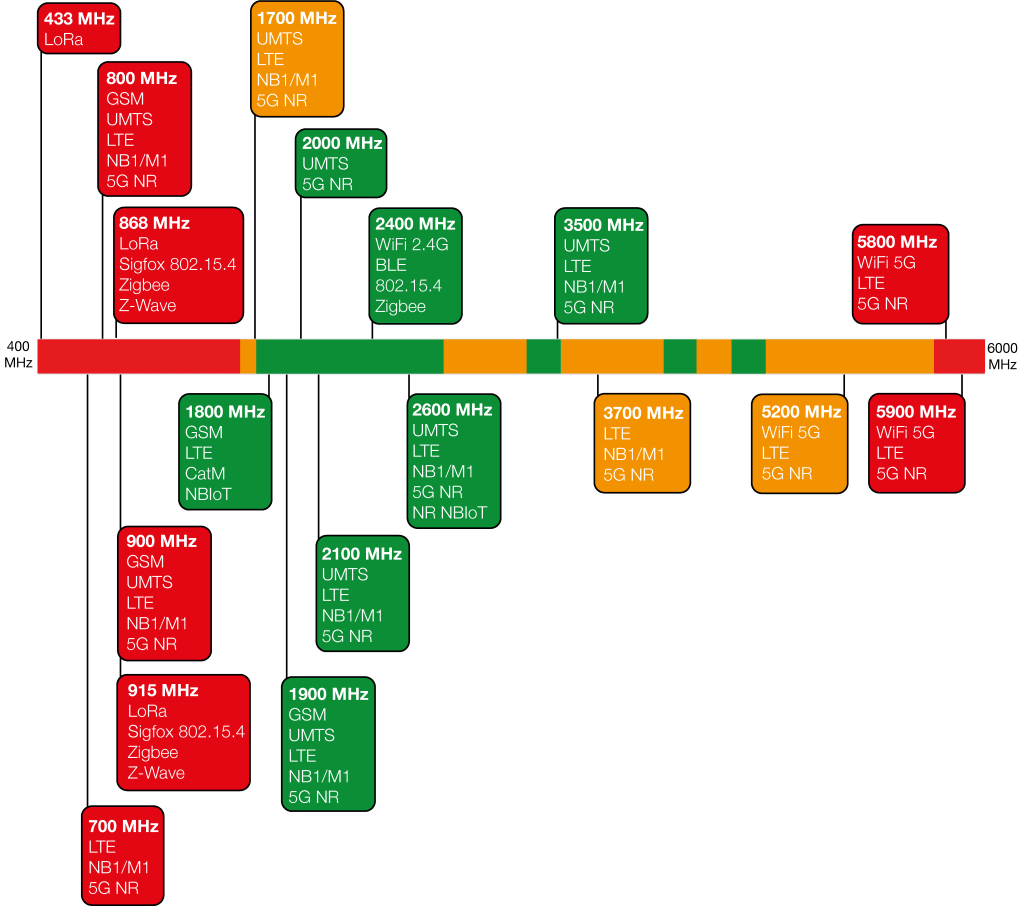

• Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM
• Supports LTE Cat M, LTE Cat NB & NR Cat NB Bands
• Supports WiFi 2.4 GHz
• Supports Bluetooth and BLE, Zigbee, ISM 2.4 GHz & IEEE 802.15.4 Band
• Adhesive Mount
• Suitable for mounting on any non-metallic surface
• Mounts discreetly, good for covert use
• Intended for internal to equipment use

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Vertical
• Max Input Power: 50 W
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -40 to +85 °C
• Storage Temperature range: -40 to +85 °C

Mechanical Specifications

• Dimensions: 116 x 21.5 x 4 mm
• Weight: 48 g (with 3m RG174 cable and SMA male Connector)
• Connector: SMA Male
• Mounting method: Adhesive Pad
• Housing materials: ABS
