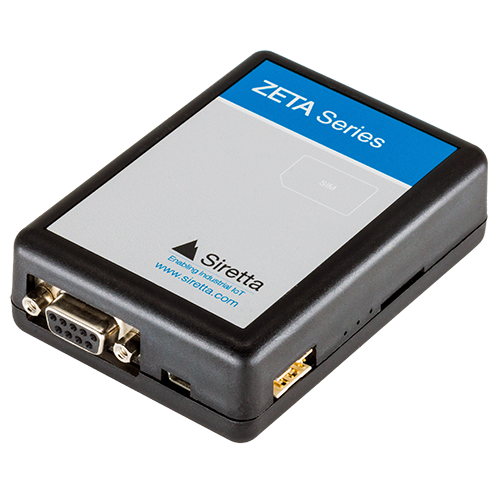

Low Power Global LTE Cat NBIoT Modem with GPIOZETA-NEP-LTEM (GL) with RS232, USB serial and GPIO

The ZETA-NEP-LTEM (GL) is a cutting edge, low power industrial modem with general purpose interfaces. It will connect equipment to the new global LTE Cat M1 and NB1 networks as they become available also providing backwards compatibility to the existing global 2G / GSM cellular network. The modem operates in a low power state which makes it ideal for use in industrial IoT applications today and for long term future developments.

The unique feature of the ZETA-NEP-LTEM (GL) allows it to run in a low power state due to its intelligent power saving design whilst monitoring general purpose inputs and driving full specification outputs. Additionally the range offers interface options including legacy RS232 for connection to existing equipment and a high speed USB interface.

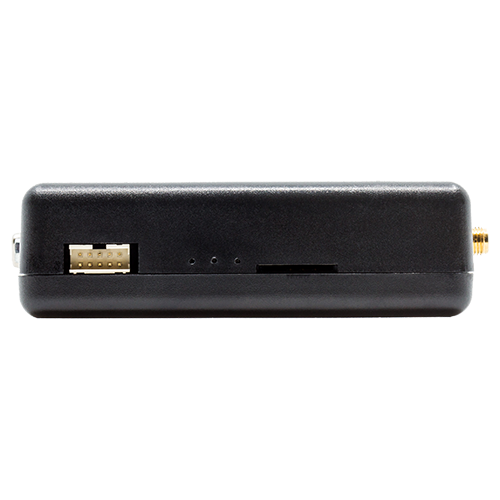

The multi-function header also offers the following interfaces to the user:

  • 3 x General Purpose Inputs (0V-42V tolerant)
  • 2 x General Purpose Outputs (0V-42V @ 1A)
  • 1 x Analogue to Digital Interface (0-42V range)
  • 1 x RS232 debug serial port (3-wire interface)
  • 1 x Peripheral Power Interface / Output Supply (Vcc)

The powerful C development environment reduces redundancy and lowers system component costs, allowing developers to maximise the power of their application directly on the device and eliminating the requirement for an external microcontroller. The application programming environment can provide cloud edge processing for interfacing to equipment in the field and offers the ability to make intelligent decisions without requiring a permanent online connection to a gateway server.

As a result the ZETA-NEP-LTEM (GL) lends itself to rapid proof-of-concept developments with minimal investment, providing fast time to market and maximum scalability offering intelligence and decision making at the cloud edge.

  • Access Control Systems
  • Car Parking Payment
  • Environmental Monitoring
  • Vending Machines
  • Agriculture
  • Tank Monitoring
  • Alarm Panels
  • Industrial Sensors
  • Automatic Meter Reading
  • Utilities
  • Smart Cities
  • Remote Monitoring and Control
  • Intelligent Cloud Processing

2G
GSM
5~42V
Industrial
ADC
Interface
AT
Commands
CODE
Embedded
CSD
Dialup
EDGE
Intelligence
FOTA
Updates
GPIO
Interface
GPRS
Enabled
IP
Services
LOW
Power
LTE
Cat M1
LTE
NB1
PSM
Low Power
RS232
Debug
RS232
Serial
SIM
Toolkit
SMS
Enabled
TEMP
-40 to +85 C
USB
Serial
WIN
Linux/MAC
WW
Global
eDRX
Low Power


RoHS
Compliant
Airlink modem, BGS2T modem, BGS5T modem, FX30 modem, Gemalto modem, multitech, Sierra Wireless, “Upgrade Airlink modem”,”Upgrade BGS2T modem”,”Upgrade BGS5T modem”,”Upgrade FX30 modem”,”Upgrade Gemalto modem”,”Upgrade multitech modem”,”Upgrade Sierra Wireless modem”,”Upgrading 2G modem to”,”Upgrading 3G modem to”,upgrade 2G, upgrade 3G modem, wireless serial connection,”RS232 modem,”USB modem
Mode of operation 7V 12V 42V
Low power mode enabled registered on network in idle state 5.19 mA

4321 uA

1898 uA
Low power mode enabled registered on network with socket connected in idle state 5.42 mA

4767 uA

2114 uA
Normal power mode with registered IP address in idle state 17.3 mA 11.3 mA 5.56 mA
Normal power mode with IP socket connected and transmitting data 128.5 mA 82.8 mA 45.1 mA
Normal power mode with active data call in progress 208.3 mA 131.1 mA 69.2 mA

Using the low power function on the Siretta Industrial Modem allows the device to consume very little power in its idle state. The modem will remain in the idle state for the majority of time and when there is data to send, the modem will enter normal power state for the duration of the transmission. This can reduce the overall power consumption in some applications by up to 97%.

blank

GSM Network Coverage
B2 (1900MHz)
B3 (1800MHz)
B5 (850MHz)
B8 (900MHz)

LTE Cat M / LTE Cat NB IoT Network Coverage
B1 (2100MHz)
B2 (1900MHz)
B3 (1800MHz)
B4 (AWS 1700MHz)
B5 (850MHz)
B8 (900MHz)
B12 (700MHz)
B13 (700MHz)
B18 (800MHz)
B19 (800MHz)
B20 (800MHz)
B26 (850MHz)
B28 (700MHz)

Mechanical Specifications
Dimensions: 93mm x 67mm x 28mm
Weight: 90 grams
Operating temperature range: -40 to +85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces
1 x RS232 serial port interface (9-wire)
1 x USB 2.0 FS
1 x RJ12 power connection (5 – 42V)
1 x SMA female cellular antenna connector
1 x SMA female GNSS antenna connector
1 x standard mini SIM (2FF push-push)
3 x GPI: Inputs (0-42V)
2 x GPO: Outputs (0-42V @ 1A)
1 x ADC (0-42V)
1 x RS232 secondary serial port (3-wire)
1 x PSU Output @ Vcc
3 x external LED status indicators (Red, Green, Blue)

Power and Consumption
Power: 5V to 42V
Low Power Idle: 4.3mA @ 12v
Low Power Idle On Network: 4.7mA @ 12v
Full Power Idle On Network: 11.3mA @ 12v

Certification
CE
RoHS

Datasheet

ZETA-NEP-LTEM (GL) Datasheet

Variant Manuals

User Manuals

ZETA-xxP Series Hardware User Manual

Datasheets

ZETA Modem Starter Kit Datasheet

Quick Start Guides

ZETA-xxP Quick Start Guide

Marketing Documents

ZETA-xxP Brochure
ZETA-xxP Flyer

Hardware Manuals

ZETA-xxP Quick Start Guide

Technology Manuals

ZETA-xxP-LTEM AT Command Reference Manual

Software Updates

User Manuals

SirettaSPARK User Manual

Software Downloads

Register to download the SirettaSPARK Tool

Software Manuals

SirettaSPARK User Manual

Modem Setup

User Manuals

Advanced Connectivity with AT Commands
Startup Modem with AT Commands

Software Downloads

RS232 USB to Serial Device Drivers

Software Manuals

Advanced Connectivity with AT Commands
Startup Modem with AT Commands

Ordering Information

Siretta Part Number: 60718
Description: ZETA-NEP-LTEM (GL) Low Power Modem with RS232, USB serial and GPIO

Request For Quote

Siretta Part Number: 61053
Description: ZETA-NEP-LTEM (GL) Low Power Modem with RS232, USB serial and GPIO with accessory kit (Adaptor, Cables and Antenna)

Request For Quote
