Non-Terrestrial Networks (NTN) are a branch of cellular technology standardised by the 3rd Generation Partnership Project (3GPP) that extend cellular coverage beyond traditional ground-based infrastructure. Rather than relying solely on terrestrial base stations, NTN uses satellites and high-altitude platforms (HAPS) as radio access points to provide connectivity over wide areas. Like other radio access technologies (Wi-Fi, LTE, 5G NR), NTN delivers radio-based communications — but on a regional to global scale.

NTN supports applications where terrestrial networks are limited or unavailable, including remote and rural regions, maritime and aviation use, and disaster recovery. It can carry both high-bandwidth services for broadband access and lower-bandwidth, energy-efficient links for IoT and machine-to-machine communications. Depending on the orbital configuration, NTN can offer relatively low latency (typical for LEO and some MEO systems) or higher latency (GEO systems); coverage and latency therefore depend on the satellite type and deployment.

As with terrestrial 5G NR, NTN work is defined within 3GPP to ensure interoperability and integration with existing cellular networks, enabling roaming and common signalling. Practical challenges for NTN deployments include Doppler shift, handover dynamics, antenna gain and orientation, and provider-specific provisioning — factors installers and planners need to consider when surveying and deploying NTN services.

What is NTN?

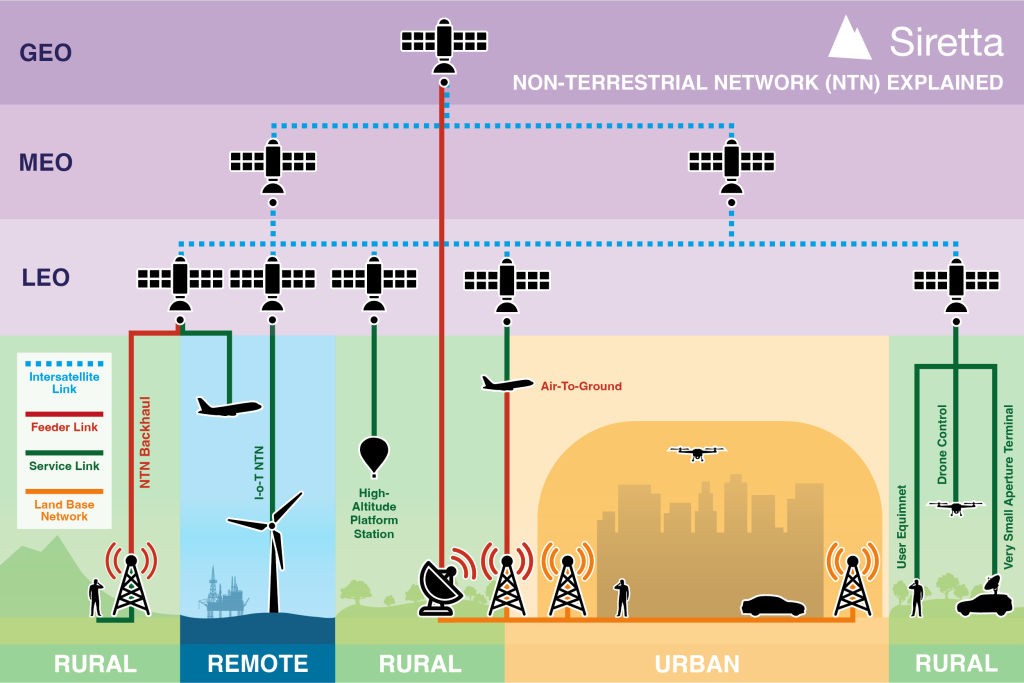

Non-Terrestrial Networks (NTN) extend 5G connectivity beyond traditional ground infrastructure by using satellites (LEO, MEO, GEO) and airborne platforms (HAPS and UAVs). This opens up mobile coverage in areas where terrestrial networks cannot reach — such as oceans, remote regions, and disaster zones.

3GPP Standardisation

Release 17 – First specifications for 5G NR-NTN and NB-IoT NTN, enabling satellite access for standard devices.
Release 18 – Enhancements in uplink coverage, mobility (between NTN and terrestrial, or NTN to NTN), regulatory location verification, plus support for Ka-band spectrum.
Release 19 (expected late 2025) – Focus on capacity improvements, additional frequency bands (Ka/Ku), and direct-to-handset communications.

blank

Satellite Payload Architectures

  • Transparent: Satellites act as repeaters, forwarding signals between ground stations and devices.
  • Regenerative: Satellites process signals onboard, functioning as active base stations in orbit.

Technical Challenges & Adaptations

To make NTN work within 5G standards, several radio adaptations are required:

  • Doppler shift & timing offsets – corrected with GNSS data and pre-compensation.
  • High latency – especially in GEO, managed with adjusted timers, HARQ tweaks, and buffer design.
  • Mobility & beam tracking – predictive handovers to support moving satellites, especially in LEO.

Spectrum Bands for NTN

NTN uses both established and satellite-specific frequency bands:

  • L-band (n255) / S-band (n256): Robust coverage, well-suited to IoT and mission-critical links.
  • Ka-band / Ku-band: High-capacity spectrum for broadband NTN, supported in Releases 18 and 19.

Unified 5G Connectivity

NTN is designed to integrate seamlessly with terrestrial 5G:

  • Works with standard 5G NR devices for global reach.
  • Maintains 5G core compatibility, enabling roaming between terrestrial and non-terrestrial networks.

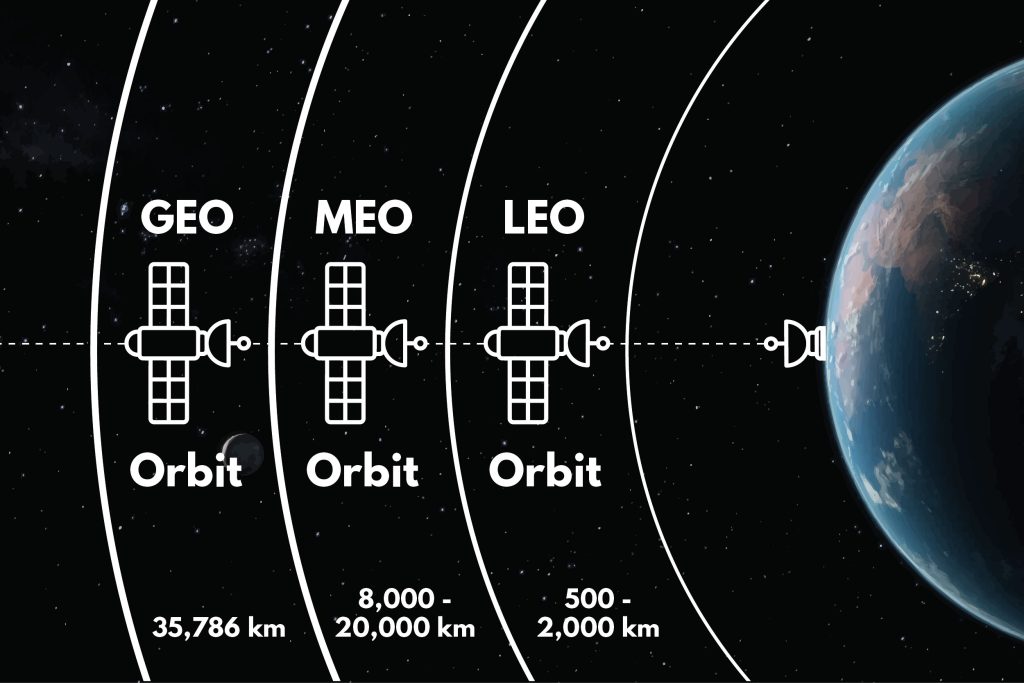

Key Satellite & Airborne Types

  • LEO (Low Earth Orbit – ~500–2,000 km):
    Low latency and potential for global coverage through large constellations. Requires frequent handovers due to fast-moving satellites and higher Doppler shift.
  • MEO (Medium Earth Orbit – ~2,000–20,000 km):
    A balance between latency (~100–150 ms) and coverage. Needs fewer satellites than LEO for wide service areas, often used for broadband and enterprise applications (e.g. O3b mPOWER).
  • GEO (Geostationary Orbit – ~35,786 km):
    Wide, stable coverage from fixed orbital slots. Higher latency (~500 ms round trip), but ideal for broadcast, backhaul, and certain IoT NTN use cases.
  • HAPS & UAVs (High-Altitude Platforms & Unmanned Aerial Vehicles):
    Operate in the stratosphere or lower atmosphere, offering regional coverage with low latency. Valuable for emergency response, temporary events, or bridging coverage gaps.
blank

Benefits of NTN

1. Global Coverage

NTN extends cellular connectivity to places where terrestrial networks cannot reach — oceans, mountains, skies, deserts, and remote rural regions.

2. Seamless Integration

Built into the 3GPP 5G standard, NTN allows devices to roam smoothly between satellite and terrestrial networks using the same SIM and protocols.

3. Business Continuity & Resilience

NTN ensures communications remain online during disasters, power outages, or network failures — a critical safety net for emergency response and industrial operations.

4. Mobility Support

Ships, aircraft, and vehicles operating outside terrestrial coverage can maintain reliable connectivity with direct satellite links.

5. IoT Expansion

NTN enables IoT devices to operate globally, supporting logistics, asset tracking, environmental monitoring, and smart agriculture in areas with no ground coverage.

6. Scalability & Flexibility

From low-power IoT sensors to broadband-level data, NTN supports a wide range of use cases with scalable capacity.

7. Future-Proofing

As satellite constellations expand and NTN capabilities grow, industries gain access to direct-to-device communications and unified global standards, reducing dependency on patchwork regional solutions.
