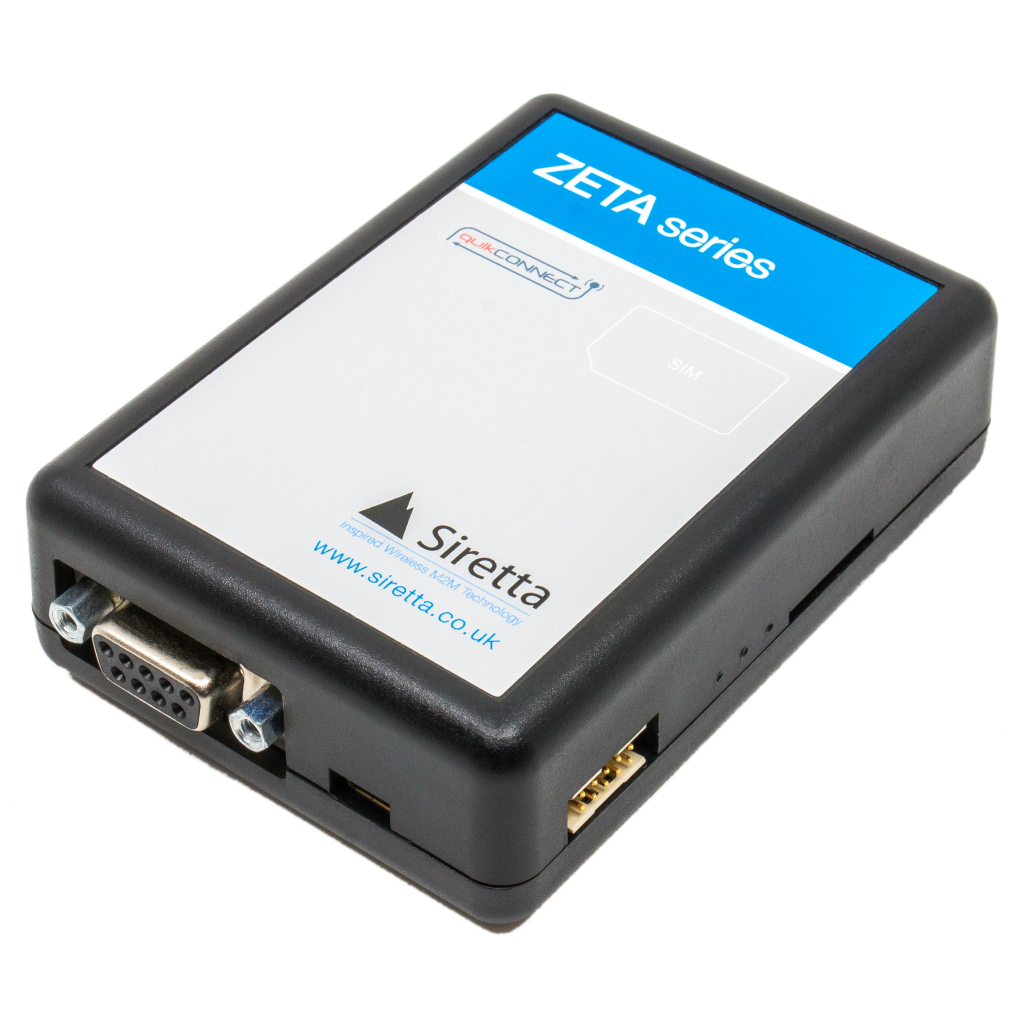

Entry Level GPRS Modem (GL)ZETA-N2-GPRS with RS232, USB serial and GPIO

The ZETA-N2-GPRS is an industrial modem designed for connecting equipment to the 2G / GSM cellular network. It has a global coverage quad band GPRS class 10 cellular engine offering CSD fall back.

The device offers a high level of functionality in a compact “plug and play” housing and provides RS232 & USB serial data interfaces in addition to a 10-way GPIO connector which offers a secondary TTL serial port, general purpose IO and an ADC.

It is ideal for integrating in to a wide range of IoT applications that require reliable and stable data connectivity.

The ZETA family of modems provide a proven industrial solution offering robust performance in harsh environments. The family of modems are suitable for use in a wide variety of applications requiring reliable performance and have a large installation base with many well known organisations in the IoT market place.

The ZETA family has built up a solid reputation as a low cost, dependable modem which has been established over a number of years.

  • Access Control Systems
  • Car Parking Payment
  • Vending Machines
  • Agriculture
  • Tank Monitoring
  • Alarm Panels
  • Dialup Cellular Connectivity
  • Automatic Meter Reading

2G
GSM
5~42V
Industrial
AT
Commands
CODE
Embedded
CSD
Dialup
FOTA
Updates
GPIO
Interface
GPRS
Enabled
IP
Services
RS232
Serial
SIM
Toolkit
SMS
Enabled
TEMP
-40 to +85 C
USB
Serial
WIN
Linux/MAC
WW
Global


RoHS
Compliant
Airlink modem, BGS2T modem, BGS5T modem, FX30 modem, Gemalto modem, multitech, Sierra Wireless, “Upgrade Airlink modem”,”Upgrade BGS2T modem”,”Upgrade BGS5T modem”,”Upgrade FX30 modem”,”Upgrade Gemalto modem”,”Upgrade multitech modem”,”Upgrade Sierra Wireless modem”,”Upgrading 2G modem to”,”Upgrading 3G modem to”,upgrade 2G, upgrade 3G modem, wireless serial connection,”RS232 modem,”USB modem

GSM Network Coverage
B2 (1900MHz)
B3 (1800MHz)
B5 (850MHz)
B8 (900MHz)

Mechanical Specifications
Dimensions: 93mm x 67mm x 28mm
Weight: 104 grams
Operating temperature range: -40 to +85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces
1 x RS232 serial port interface (5-wire)
1 x USB 2.0 FS
1 x RJ12 power connection (5 – 42V)
1 x SMA female cellular antenna connector
1 x standard mini SIM (2FF push-push)
5 x GPIO (Input 0-42V, Output 0-3.3V)
1 x ADC (0-42V)
1 x RS232 secondary serial port (3-wire TTL)
3 x external LED status indicators (Blue, Red, Green)

Power and Consumption
Power: 5V to 42V
Idle: 25mA @ 12v
Connected: 90mA @ 12v

Certification
CE
RoHS

Datasheet

ZETA-N2-GPRS Datasheet
Version: 1.0

Manuals

User Manuals

ZETA-GPRS AT Command Reference Manual
ZETA Series Quick Start Guide
Version: 1.6
ZETA Series Hardware User Manual
Version: 2.2

Quick Start Guides

ZETA Series Quick Start Guide
Version: 1.6

Hardware Manuals

ZETA Series Hardware User Manual
Version: 2.2

Software Manuals

ZETA-GPRS AT Command Reference Manual

Software Updates

User Manuals

SirettaSPARK User Manual

Software Downloads

Register to download the SirettaSPARK Tool

Software Manuals

SirettaSPARK User Manual

Ordering Information

Siretta Part Number: 60556
Description: ZETA-N2-GPRS with RS232, USB serial and GPIO

Request For Quote

Siretta Part Number: 60557
Description: ZETA-N2-GPRS with accessory kit (Adaptor, Cables and Antenna)

Request For Quote
