Dual Port Dual SIM LTE Router (EU) with GPSQUARTZ-LTE (EU) Dual LAN, Dual SIM, Digital I/O Industrial Router

The QUARTZ-LTE router is a high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-LTE’s fast data transfer capability reaches up to 100Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable.

It is well suited for IoT/mobile broadband applications, offering reliable, secure wireless connectivity. The QUARTZ-LTE router is of a robust design, coming in a small sized, metal enclosure, making it ideal for deployment in industrial embedded applications.

Cellular coverage is designed to match European frequencies. The QUARTZ software means VPN security is supported, allowing the router to be used in commercial as well as industrial applications. The QUARTZ 4G/LTE router meets many of the needs for management of remote communication, and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring, and many other IoT/mobile broadband applications.

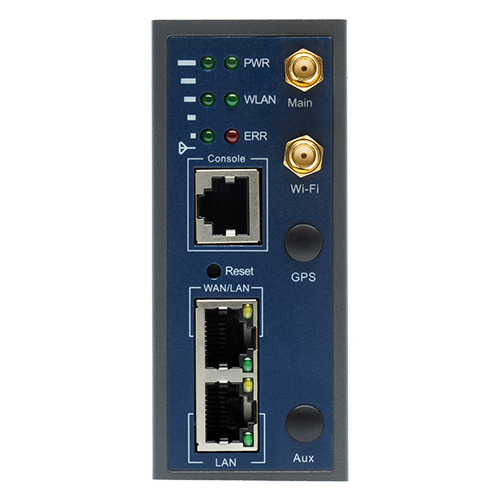

The QUARTZ-LTE router, has an array of features to empower your application. These include a dual SIM facility meaning you can configure a back-up cellular network between two different SIM cards, to ensure permanent reliable connection regardless of individual network availability. In addition, the QUARTZ-LTE has dual port ethernet capability, RJ45 serial RS232 linkCONNECT port and 3  digital I/O and comes as standard with LTE/4G antennas, but it has the option to come with, or without, Wifi. It also has optional GPS capability, which means the router is ideal for asset tracking or access management.

  • European 4G / LTE bands
  • 1 x linkCONNECT (RS232 to TCP/IP)

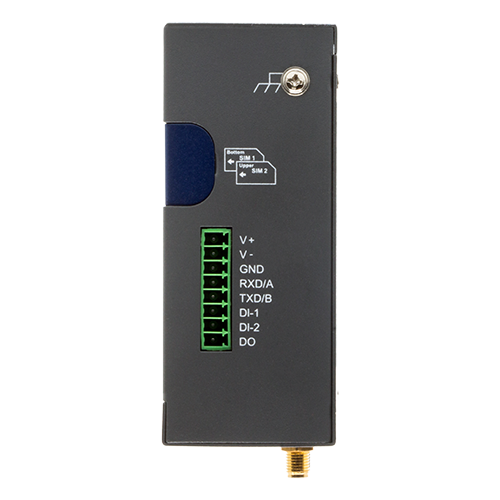

  • 3 x Digital I/O
  • High speed data via UMTS & LTE network
  • Strong resistance to electromagnetic interference
  • Built-in watch dog, multi-link detection

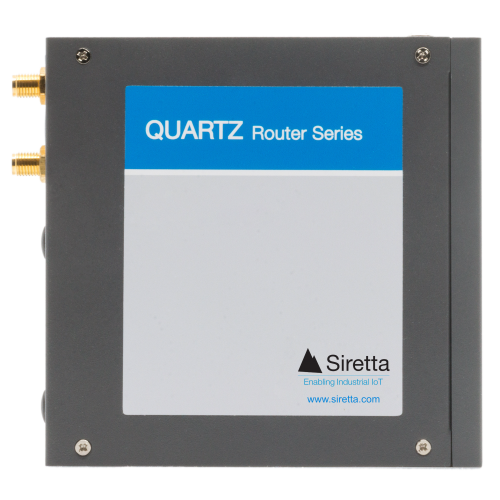

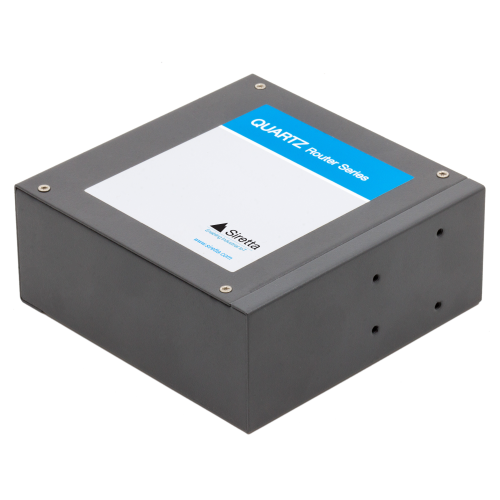

  • Industrial, robust design with metal housing
  • Dual SIM for failover / backup between network
  • WAN supports PPOE, Static IP, DHCP Client
  • VPN: PPTP/L2TP?GRE/IPIP/IPSec
  • Optional WiFi
  • Optional GPS
  • DIN Rail adapter clip

2G
GSM
3G
UMTS
4G
LTE
CLI
Telnet
DUAL
SIM Support
EMEA
Europe
GPIO
Interface
GPS
Position
IP
Services
LAN
Dual Port
LED
Status
PSU
7V to 32V
PTP
Connect
RS232
Serial
SNMP
Manage
SSH
Manage
TEMP
-30 to +70 C
UPNP
Protocol
VPN
Tunnel
WAN
Backup
WIFI 4
802.11n
WIFI
2.4G
WIN
Linux/MAC


RoHS
Compliant
CE
Compliant
3g router, 4g openvpn router, 4g router, 4g router with dual sim slot, 4g wifi router, dual sim router, industrial router, lte wireless router, machine to machine, umts router,open vpn,vpn router

UMTS Network Coverage
B1 (2100MHz)
B2 (1900MHz)
B5 (850MHz)
B8 (900MHz)

LTE Network Coverage
B1 (2100MHz)
B2 (1900MHz)
B3 (1800MHz)
B4 (1700MHz)
B5 (850MHz)
B7 (2600MHz)
B8 (900MHz)
B20 (800MHz)

Certification
UKCA
CE
RoHS

Mechanical Specifications
Operating temperature range: -30 to 70°C
Storage temperature range: -40 to 85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces
2 x 10/100Mb LAN (2 x LAN)
1 x RS232 linkCONNECT port (RJ45)
3 x I/O (Input/Output – user defined)

Power and Consumption
Idle: 213mA @ +12VDC
Communications: 265mA @ +12VDC
Power supply: 5 – 32V DC
1 x 3G/4G SMA female antenna interface
2 x standard SIM/R-UIM interface
1 x standard DC power interface

Features
Remote Access over HTTP/HTTPS
HTTPS Support
ICMP Ping Support
Integrated TCP/IP Services
NAT Support
DMZ Support
Port Redirection Support
Custom NTP Server Support
Internal logging and Remote Syslog Support
Current Routing Table
Static Routes

VPN Tunnel Support
OpenVPN Client
IPSec Tunnel
GRE Tunnel
L2TP Tunnel
PPTP Tunnel

Datasheets

QUARTZ-LTE (EU) Datasheet

Quick Start Guides

QUARTZ Family Quick Start Guide

Hardware Manuals

QUARTZ Hardware Manual

Software Manuals

QUARTZ Software Manual

Additional Documents

Router Fact Sheet
Siretta Device Safety and Product Care

Ordering Information

Siretta Part Number: 60280
Description: QUARTZ-GW22-LTE (EU) Dual port router with WiFi and GPS

Request For Quote

Siretta Part Number: 60274

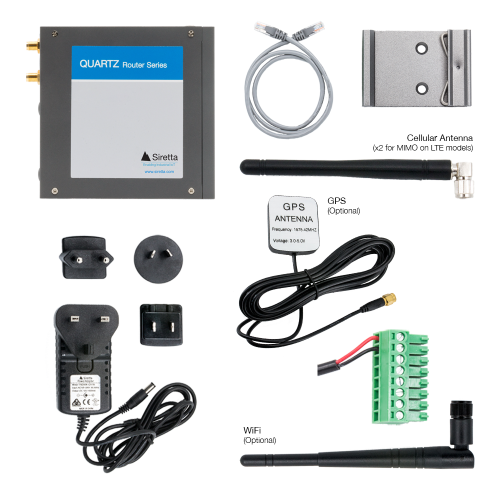

Description: QUARTZ-GW22-LTE (EU) Dual port router with WiFi and GPS including accessory kit (Connecting Cables and Antennas)

Request For Quote
