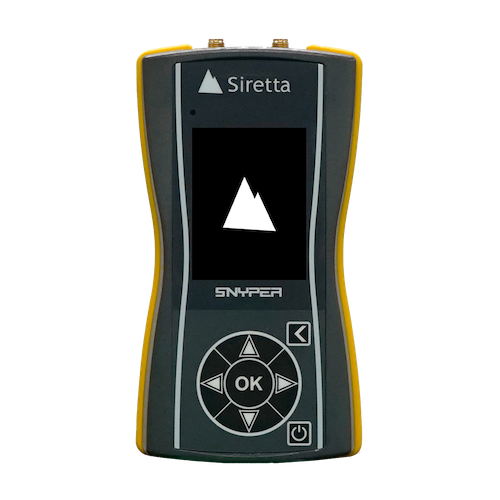

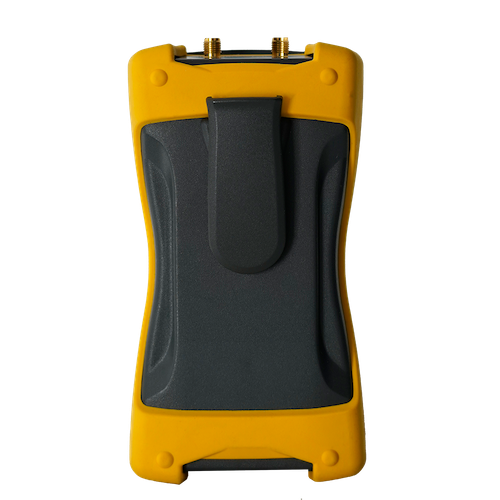

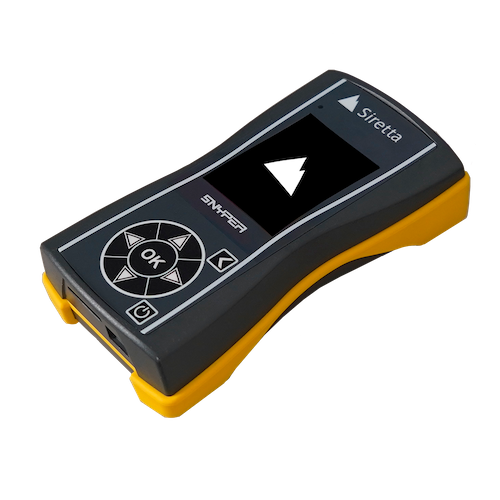

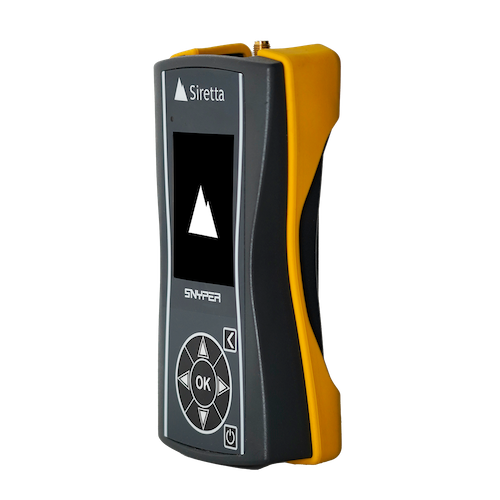

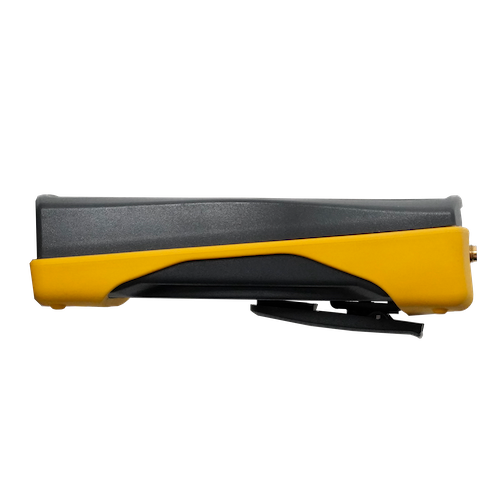

Continuous Survey 5G Logger (GL)SNYPER-5G Graphyte (GL) High performance 5G/NR signal analyser & cell logger

The SNYPER-5G Graphyte (GL) is a high performance, multi-language network signal analyser and cellular signal logger, dedicated to surveying and logging the 5G/NR 4G/LTE , LTE-Cat M, NB-IoT & 2G/GSM networks.

The unit can be left to conduct sequential surveys in a fixed location and automatically saving them. Four types of survey can be performed: a “FULL” survey (5G, 4G or CAT-M, NB-IoT, GSM combined), or a single selected technology only.

The SNYPER-5G Graphyte is capable of detecting 5G SA Cells without requiring a 5G SIM Card. However, if you require analysing 5G NSA Cells, a valid 5G SIM card is required. The SNYPER device will then display the 5G NSA cells of the network that the SIM card operates on. This is due to the specific way 5G NSA operates.

The U.S. National Telecommunications and Information Administration has an informative short video explaining how the 5G NR architecture is split into SA and NSA below.

For more information on 5G Technology please click here:

SNYPER-5G Graphyte (GL) can save a large amount of surveys each with different logging options and all survey results can be downloaded to a PC and displayed in a HTML graphical format to clearly show the logged detail over the survey session. This can identify unreliable base-stations & intermittent cellular service which is not possible with spot surveys. The full breakdown for the HTML summary graphs are displayed in corresponding CSV files (Summary and full detail files).

The SNYPER-5G Graphyte (GL) also incorporates Siretta’s leading liveSCAN feature, which allows you to select a base-station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording.

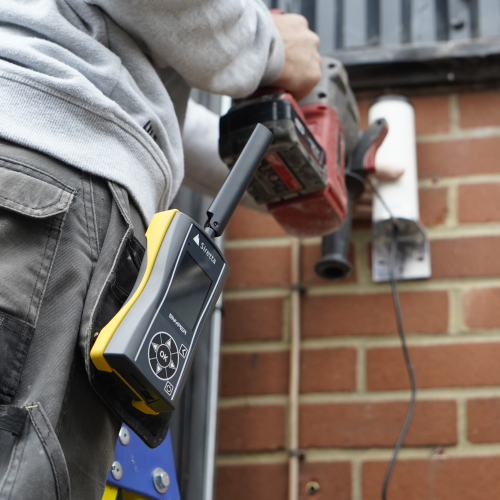

The SNYPER-5G Graphyte (GL) is an invaluable tool for understanding local network performance over hours, days and weeks to assist in the selection of reliable mobile network operators before cellular installations.

  • Enhanced cellular surveying & sequential logging of new and existing installations on 5G. 4G, Cat M, NB-IoT and 2G networks
  • 5G NSA Cells Identified (Based on USER SUPPLIED SIM)
  • User selectable survey logging options to determine most suitable & reliable mobile operator
  • Evaluate “preferred” MNO’s performance over time
  • Determines “hotspots” & assist with antenna alignment, through Siretta’s liveSCAN feature
  • Results are reported in CSV, graphical HTML format & Print to PDF
  • Save 1000’s of logged surveys with multiple liveSCAN logs

2G
GSM
3.7 Ah
Battery
4G
LTE
5G
New Radio
AUTO
SAVE Logs
CSV
Reports
Cloud
SURVEY
GEAR
Accessories
HARD
Carry Case
HTML
Reports
LIVE
SCAN Logs
LOG
Surveys
LTE
Cat M
LTE
NbIoT
MAP
Portal
MNO
Summary
MULTI
Language
P2P
Alignment
RTC
Timestamp
SCAN
Realtime
TFT
Display
Tripod
Clip
USB C
Connector
USB
Power
WIN
Linux/MAC
WW
Global


RoHS
Compliant
CE
Compliant
FCC
Compliant
UKCA
Compliant
3g signal strength tester,4g network analyser,4g network base station detection,4g network signal logging,lte network analyser,lte network signal logging,lte signal strength tester,network signal logging, logger

The SirettaSPARK Tool is an automated device management application developed by Siretta to simplify the process of keeping your devices up to date with the latest software and firmware. Software updates provide new features, performance improvements and bug fixes to applications developed by Siretta and enhance your products overall capabilities. Firmware updates provide improvements to the devices core operation, add performance improvements and enhance device network interaction.

Both of these elements are important to keep your device running in optimal condition and the SirettaSPARK tool helps to make this process simple and easy.

The SirettaSPARK Tool automates software and firmware updates for all of your Siretta devices and offers the following benefits:

  • Simplified device management
  • Ensures devices have the latest firmware and software installed
  • Increased performance and operating improvements
  • Apply the latest bug fixes

blank

In addition the SirettaSPARK Tool incorporates advanced features which offer the following:

  • Debugging tools saved locally to a log file
  • Debugging tools saved remotely to Siretta’s servers
  • Device configuration tools for application management
  • Simple network connectivity logging tools

The SirettaSPARK integrated tools provide automated device updates and allow the Siretta Engineering team to understand and debug any underlying issues with your application integration remotely.

NOTE: If SirettaSPARK does not find your connected equipment you may be running an outdated version of software or you may have a problem with your devices setup.
Please contact Siretta support for further assistance.

Software Manuals

SirettaSPARK User Manual

Software Downloads

Register to download the SirettaSPARK Tool

28 Supported Bands 5G NR
n1 (2100 MHz)
n2 (1900 MHz)
n3 (1800 MHz)
n5 (850 MHz)
n7 (2600 MHz)
n8 (900 MHz)
n12 (700 MHz)
n13 (700 MHz)
n14 (700 MHz)
n18 (850 MHz)
n20 (800 MHz)
n25 (1900 MHz)
n26 (850 MHz)
n28 (700 MHz)
n29 (700 MHz)
n30 (2300 MHz)
n38 (2600 MHz)
n40 (2300 MHz)
n41 (2500 MHz)
n48 (3500 MHz)
n66 (1700 MHz)
n70 (2000 MHz)
n71 (600 MHz)
n75 (1500 MHz)
n76 (1500 MHz)
n77 (3700 MHz)
n78 (3500 MHz)
n79 (4700 MHz)

31 Supported Bands 4G LTE
B1 (2100 MHz)
B2 (1900 MHz)
B3 (1800 MHz)
B4 (1700 MHz)
B5 (850 MHz)
B7 (2600 MHz)
B8 (900 MHz)
B12 (700 MHz)
B13 (700 MHz)
B14 (700 MHz)
B17 (700 MHz)
B18 (850 MHz)
B19 (850 MHz)
B20 (800 MHz)
B25 (1900 MHz)
B26 (850 MHz)
B28 (700 MHz)
B29 (700 MHz)
B30 (2300 MHz)
B32 (1500 MHz)
B34 (2000 MHz)
B38 (2600 MHz)
B39 (1900 MHz)
B40 (2300 MHz)
B41 (2500 MHz)
B42 (3500 MHz)
B43 (3700 MHz)
B46 (5200 MHz)
B48 (3500 MHz)
B66 (1700 MHz)
B71 (600 MHz)

18 Supported Bands LTE-M
B1 (2100 MHz)
B2 (1900 MHz)
B3 (1800 MHz)
B4 (1700 MHz)
B5 (850 MHz)
B8 (900 MHz)
B12 (700 MHz)
B13 (700 MHz)
B14 (700 MHz)
B18 (850 MHz)
B19 (850 MHz)
B20 (800 MHz)
B25 (1900 MHz)
B26 (850 MHz)
B27 (800 MHz)
B28 (700 MHz)
B66 (1700 MHz)
B85 (700 MHz)

17 Supported Bands NB-IoT
B1 (2100 MHz)
B2 (1900 MHz)
B3 (1800 MHz)
B4 (1700 MHz)
B5 (850 MHz)
B8 (900 MHz)
B12 (700 MHz)
B13 (700 MHz)
B18 (850 MHz)
B19 (850 MHz)
B20 (800 MHz)
B25 (1900 MHz)
B26 (850 MHz)
B28 (700 MHz)
B66 (1700 MHz)
B71 (600 MHz)
B85 (700 MHz)

4 Supported Bands 2G / GSM / GPRS
B2 (1900 MHz)
B3 (1800 MHz)
B5 (850 MHz)
B8 (900 MHz)

Mechanical Specifications
Operating temperature range: -10 to +60°C
Storage temperature range: -20 to +25°C*
Operating Humidity Range: 20 to 85% (non-condensing)

*for maximum battery life

Physical Interfaces

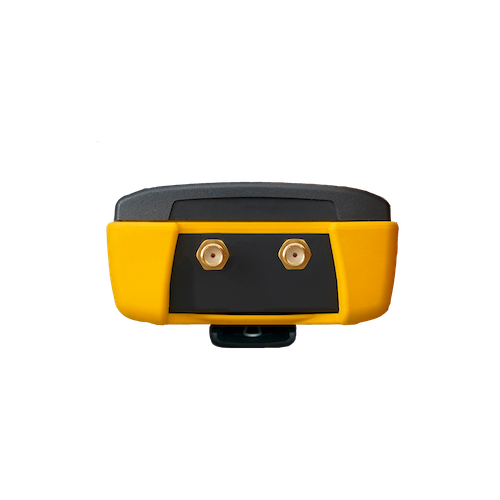

2 x SMA Female cellular antenna connector
1 x SIM card reader (push-push) 3V, 1.8V
1 x Red LED charging indicator
1 x 2.4” Diagonal VGA 480 x 640 RGB TFT
Display: 80 degree viewing angle
Display Brightness: 700md/m2
1 x Tactile multifunction keypad

Supplied Accessories
2M USB-C 2.0 for PC interface and for battery charging
Male USB-A to Female USB-C adaptor
Mini Tripod
Fixed Mounting Clip for Mini Tripod
LiveSCAN Antenna
1.5m LiveSCAN Low Loss cable

Power
Recommended Power Supply (Not Included):
Mains Input 100-240V 50/60Hz USB A Charger O/P: 5V @ DC 2A
Battery: Lithium Ion 3.7V, 3700mAh*

*The Graphyte features a smart sensor that tracks incoming and outgoing currents along with terminal voltage of its internal battery. This enables precise estimation of remaining battery capacity, factoring in variables like temperature and discharge rate.

For optimal accuracy, the sensor must initially calibrate to the battery’s true capacity. This involves fully charging and discharging the Graphyte multiple times.



Certification
UKCA
CE
FCC
RoHS

Datasheets

SNYPER-5G Graphyte (GL) Datasheet
CloudSURVEY Datasheet

Hardware Manuals

SNYPER-5G & SNYPER-IoT Graphyte User Manual

Software Manuals

SirettaSPARK User Manual
CloudSURVEY User Manual

Software Downloads

Register to download the SirettaSPARK Tool

Additional Documents

SNYPER – Feature Comparison
Siretta Device Safety and Product Care

Ordering Information

Siretta Part Number: 62096
Description: SNYPER-5G Graphyte (GL) Network Signal Analyser & Data Logger with Accessories and Hard Carry Case
