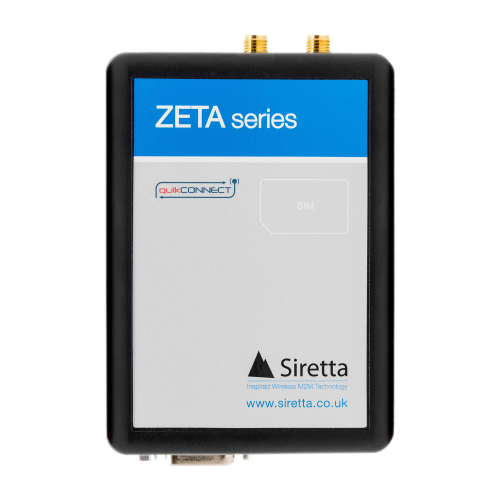

Entry Level GPRS Modem with GNSS (GL)ZETA-G-GPRS with RS232, USB serial, GPIO and GNSS

The ZETA-G-GPRS is an industrial modem designed for connecting equipment to the 2G / GSM cellular network. It has a global coverage quad band GPRS class 10 cellular engine offering CSD fall back. The ZETA-G-GPRS incorporates a full GNSS receiver which supports GPS, Glonass and Galileo for advanced tracking applications.

The device offers a high level of functionality in a compact “plug and play” housing and provides a GPS(GNSS) interface, RS232 & USB serial data interfaces in addition to a 10-way GPIO connector which offers a secondary TTL serial port, general purpose IO and an ADC.

It is ideal for integrating in to a wide range of IoT tracking applications.

The ZETA family of modems provide a proven industrial solution offering robust performance in harsh environments. The family of modems are suitable for use in a wide variety of applications requiring reliable performance and have a large installation base with many well known organisations in the IoT market place.

The ZETA family has built up a solid reputation as a low cost, dependable modem which has been established over a number of years.

  • Asset Tracking
  • Telematics
  • ANPR
  • Agriculture
  • Security Systems
  • Food and Beverage

2G
GSM
5~42V
Industrial
AT
Commands
CODE
Embedded
CSD
Dialup
FOTA
Updates
GNSS
Position
GPIO
Interface
GPRS
Enabled
IP
Services
PDP
Context
RS232
Serial
SIM
Toolkit
SMS
Enabled
TEMP
-40 to +85 C
USB
Serial
WIN
Linux/MAC
WW
Global


RoHS
Compliant
Airlink modem, BGS2T modem, BGS5T modem, FX30 modem, Gemalto modem, multitech, Sierra Wireless, “Upgrade Airlink modem”,”Upgrade BGS2T modem”,”Upgrade BGS5T modem”,”Upgrade FX30 modem”,”Upgrade Gemalto modem”,”Upgrade multitech modem”,”Upgrade Sierra Wireless modem”,”Upgrading 2G modem to”,”Upgrading 3G modem to”,upgrade 2G, upgrade 3G modem, wireless serial connection,”RS232 modem,”USB modem

GSM Network Coverage
B2 (1900MHz)
B3 (1800MHz)
B5 (850MHz)
B8 (900MHz)

GNSS Network Coverage
GPS
Glonass
Beidou
Galileo

Mechanical Specifications
Dimensions: 93mm x 67mm x 28mm
Weight: 104 grams
Operating temperature range: -40 to +85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces
1 x RS232 serial port interface (5-wire)
1 x USB 2.0 FS
1 x RJ12 power connection (5 – 42V)

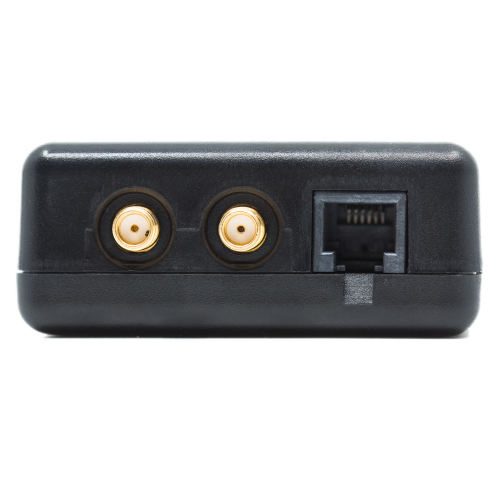

1 x SMA female cellular antenna connector
1 x SMA female GNSS antenna connector
1 x standard mini SIM (2FF push-push)
5 x GPIO (Input 0-42V, Output 0-3.3V)
1 x ADC (0-42V)
1 x RS232 secondary serial port (3-wire TTL)
3 x external LED status indicators (Blue, Red, Green)

Power and Consumption
Power: 5V to 42V
Idle: 25mA @ 12v (without GNSS)
Idle: 45mA @ 12v (with GNSS)
Connected: 90mA @ 12v (without GNSS)
Connected: 110mA @ 12v (with GNSS)

Certification
CE
RoHS

Datasheets

ZETA-G-GPRS Datasheet
Version: 1.0

Quick Start Guides

ZETA Series Quick Start Guide
Version: 1.6

Hardware Manuals

ZETA Series Hardware User Manual

Software Manuals

SirettaSPARK User Manual
ZETA-GPRS AT Command Reference Manual

Software Downloads

Register to download the SirettaSPARK Tool
RS232 USB to Serial Device Drivers

Accessories

ZETA DIN Rail Datasheet

Additional Documents

Modem Starter Kit Fact Sheet
Modem Fact Sheet
Siretta Device Safety and Product Care

Ordering Information

Siretta Part Number: 60017
Description: ZETA-G-GPRS with RS232, USB serial, GPIO and GNSS

Request For Quote

Siretta Part Number: 60793
Description: ZETA-G-GPRS with RS232, USB serial, GPIO and GNSS, with accessory kit (Adaptor, Cables and Antenna).

Request For Quote
