ZETA Modem Starter KitsEvaluate IoT Cellular Performance

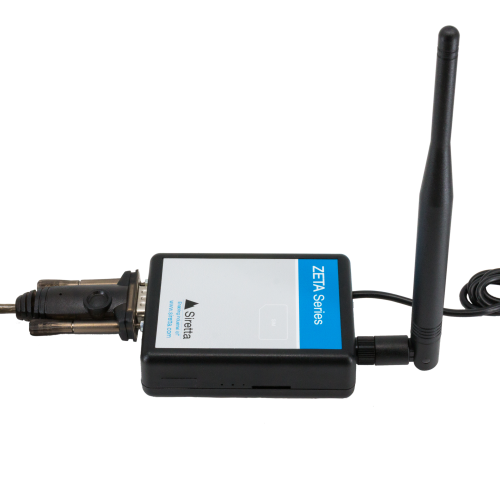

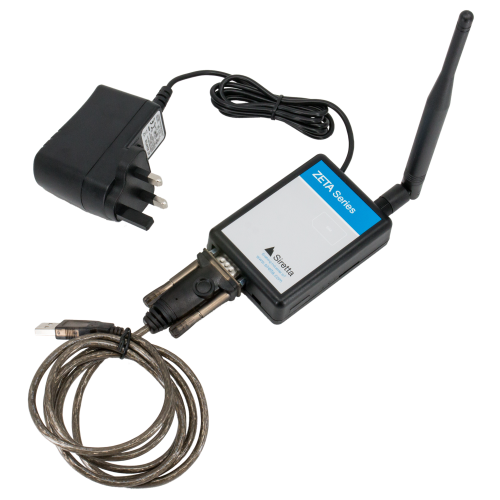

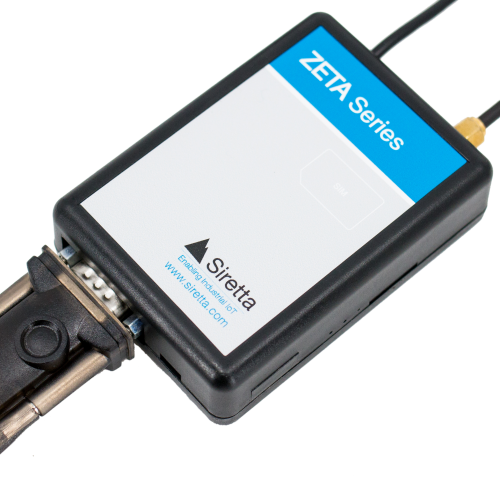

The ZETA Modem Starter Kits have been developed to partner perfectly with the ZETA family of industrial IoT modem solutions. The starter kits provide all of the accessories that you need to get your modem up and running including antennas, serial cables, multi region PSU and power cables. The ZETA modems are a family of low power industrial cellular communication devices with general purpose interfaces.

The ZETA family of modems connect equipment to the LTE Cat 4 / LTE Cat 1 / LTE Cat M / LTE Cat NBIoT networks and provide backwards compatibility to the existing 3G / UMTS and 2G / GSM cellular networks. The modems operate in a low power state which makes them ideal for use in industrial IoT applications today and for long term future developments.

The unique features of the ZETA family of modem devices are available across the entire range. The family of devices share the same set of compatible interface connectors which allows for accessories to be interchanged as required between devices.

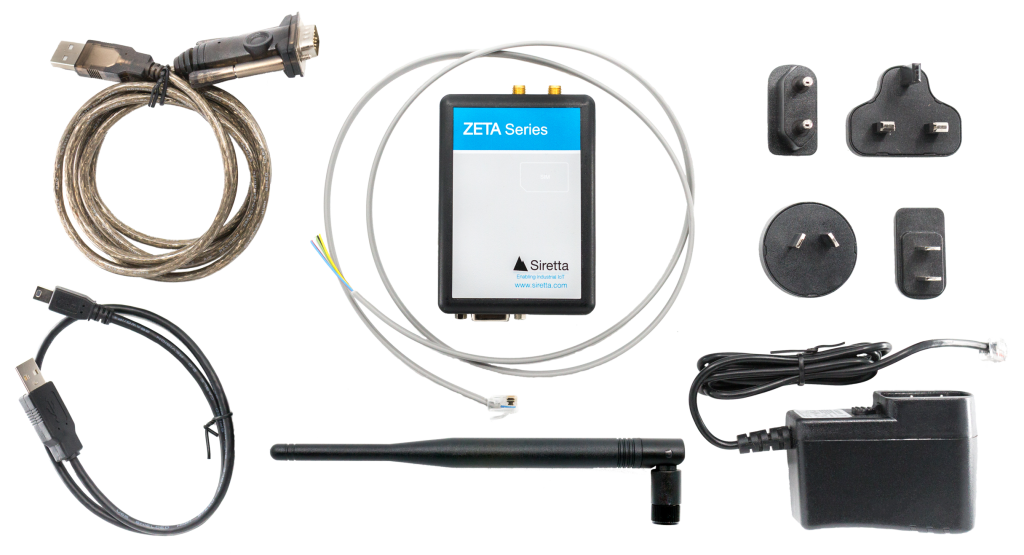

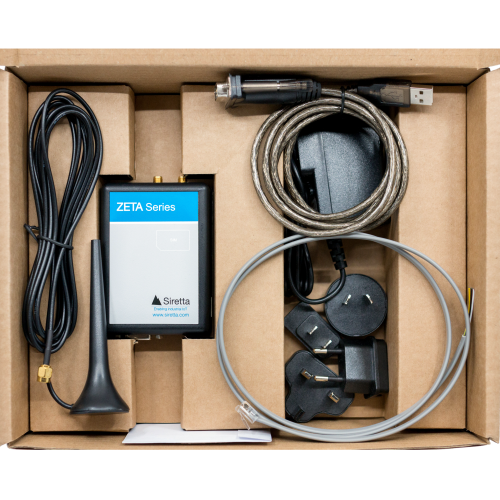

The starter kit contains the following components with common interfaces for each ZETA model:

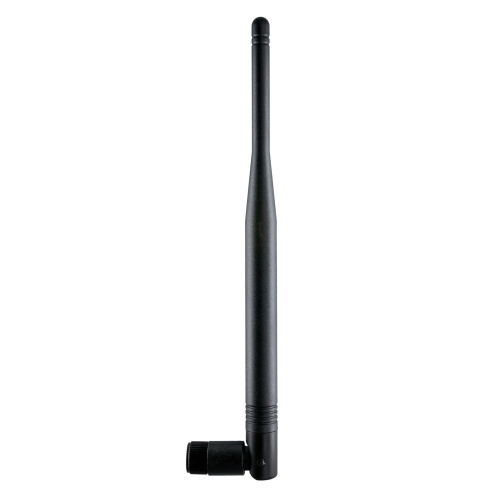

  • SMA Male Cellular Antenna
  • RJ12 Power Connector Cable
  • DB9 RS232 to USB Serial Interface Cable (1.0m)
  • USB Serial Interface Cable (0.5m)
  • Multi-region Mains PSU (12V @ 2A)
  • SMA Male GNSS Antenna (Option for ZETA-GEP)

The common interfaces are designed to be compatible with industry standard interfaces and offers access to the full functionality of the modem including legacy RS232 for connection to existing equipment and a high speed USB interface for higher speed devices.

The ZETA-NEP and ZETA-GEP models also include a GPIO 10-way multi-function header which offers the following interfaces to the user:

  • 3 x General Purpose Inputs (0V-42V tolerant)
  • 2 x General Purpose Outputs (0V-42V @ 1A)
  • 1 x Analogue to Digital Interface (0-42V range)
  • 1 x RS232 debug serial port (3-wire interface)
  • 1 x Peripheral Power Interface / Output Supply (Vcc)

There are a number of different ZETA models available which offer a different set of features. Each model has a common set of interfaces with additional interfaces on the ZETA-NEP and ZETA-GEP models:

The ZETA family of modems are available to cover different regions around the world. There are global LTE solutions marked as (GL), European LTE solutions marked as (EU) and American LTE solutions marked as (USA).

Every device in the ZETA modem family supports a powerful C development environment which can be used to develop applications directly within the modem. The programming interface reduces redundancy and lowers system component costs, allowing developers to maximise the power of their application directly on the device and eliminating the requirement for an external microcontroller. The application programming environment can provide cloud edge processing for interfacing to equipment in the field and offers the ability to make intelligent decisions without requiring a permanent online connection to a gateway server.

Starter Kit Benefits

  • Setup your Siretta modem to evaluate performance
  • Get up and running quickly with the correct accessories
  • Test different use case scenarios and swap out components
  • Trust on known working accessories to focus on your development
  • Evaluate different network technologies using existing equipment
  • Verify proof of concept before applying to end application

2G
GSM
3G
UMTS
4G
LTE
ADC
Interface
GNSS
Antenna
GPIO
Interface
LTE
Antenna
LTE
Cat 1
LTE
Cat 4
LTE
Cat M1
LTE
NB1
MULTI
Region PSU
RJ12
PSU Cable
RS232
Serial
USB
Serial


RoHS
Compliant
Airlink modem, BGS2T modem, BGS5T modem, FX30 modem, Gemalto modem, multitech, Sierra Wireless, “Upgrade Airlink modem”,”Upgrade BGS2T modem”,”Upgrade BGS5T modem”,”Upgrade FX30 modem”,”Upgrade Gemalto modem”,”Upgrade multitech modem”,”Upgrade Sierra Wireless modem”,”Upgrading 2G modem to”,”Upgrading 3G modem to”,upgrade 2G, upgrade 3G modem, wireless serial connection,”RS232 modem,”USB modem,CAT4

ZETA Modem Interfaces

ZETA Model LTE Category Ultra Low Power Low Power Digital Inputs Digital Outputs ADC Inputs Debug RS232 PSU Output GNSS Position
ZETA-NLP-LTEM (GL) M / NBIoT Yes
ZETA-NLP-LTE1 (EU) 1 Yes
ZETA-NSP-LTE1 (EU) 1 Yes
ZETA-NEP-LTEM (GL) M / NBIoT Yes 3 2 1 Yes Yes
ZETA-NEP-LTE4 (EU) 4 Yes 3 2 1 Yes Yes
ZETA-GEP-LTE4 (EU) 4 Yes 3 2 1 Yes Yes Yes

(GL) = Global Region | (EU) = European Region | (USA) = American Region

ZETA Modem Starter Kit Accessories

ZETA Model LTE Category Multi Region PSU Cellular Antenna RS232 to USB USB Serial Cable RJ12 PSU Cable GNSS Antenna
ZETA-NLP-LTEM (GL) M / NBIoT Yes Yes Yes Yes Yes
ZETA-NLP-LTE1 (EU) 1 Yes Yes Yes Yes Yes
ZETA-NSP-LTE1 (EU) 1 Yes Yes Yes Yes Yes
ZETA-NEP-LTEM (GL) M / NBIoT Yes Yes Yes Yes Yes
ZETA-NEP-LTE4 (EU) 4 Yes Yes Yes Yes Yes
ZETA-GEP-LTE4 (EU) 4 Yes Yes Yes Yes Yes Yes

(GL) = Global Region | (EU) = European Region | (USA) = American Region

Siretta ZETA Advantage

The ZETA family lends itself to rapid proof-of-concept developments with minimal investment, providing fast time to market and maximum scalability offering intelligence and decision making at the cloud edge.

The ZETA family of industrial modems has built up a solid reputation as a low cost, low power, reliable and dependable modem which has been established over a number of years with many industry leading industrial customers.

Related Products

Quick Start Guides

ZETA-xxP Quick Start Guide

Hardware Manuals

ZETA Series Hardware User Manual

Starter Kit Datasheet

ZETA Modem Starter Kit Datasheet

Starter Kit Quick Start Guide

ZETA-xxP Quick Start Guide

Software Updates

Software Manuals

SirettaSPARK User Manual

Software Downloads

Register to download the SirettaSPARK Tool

Modem Setup

Software Manuals

Startup Modem with AT Commands

Software Downloads

RS232 USB to Serial Device Drivers

Modem Datasheets

Quick Start Guides

ZETA-xxP Quick Start Guide

Hardware Manuals

ZETA Series Hardware User Manual

Ordering Information

Siretta Part Number: 60796
Description: ZETA-NLP-LTEM (GL) – Ultra Low Power Global LTE Cat M / NBIoT Modem Starter Kit

Request For Quote

Siretta Part Number: 61054
Description: ZETA-NLP-LTE1 (EU) – Ultra Low Power European LTE Cat 1 Modem Starter Kit

Request For Quote

Siretta Part Number: 61055
Description: ZETA-NSP-LTE1 (EU) – Low Power European LTE Cat 1 Modem Starter Kit

Request For Quote

Siretta Part Number: 61053
Description: ZETA-NEP-LTEM (GL) – Low Power Global LTE Cat M / NBIoT Modem with GPIO Starter Kit

Request For Quote

Siretta Part Number: 61052
Description: ZETA-NEP-LTE4 (EU) – Low Power European LTE Cat 4 Modem with GPIO Starter Kit

Request For Quote

Siretta Part Number: 61057
Description: ZETA-GEP-LTE4 (EU) – Low Power European LTE Cat 4 Modem with GPIO and GNSS Starter Kit

Request For Quote
