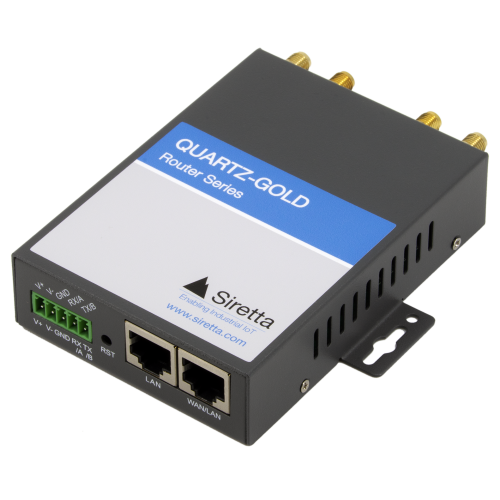

Gigabit Ethernet Small Footprint LTE Router (EU)QUARTZ-GOLD (EU) with gigabit ethernet, dual WiFi and RS232/485 Serial

The QUARTZ-GOLD router is a high speed dual port gigabit ethernet industrial router designed for transferring large amounts of data via the LTE cellular network. The QUARTZ-GOLD’s fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable. It is well suited for IoT mobile broadband applications, offering reliable, secure wireless connectivity.

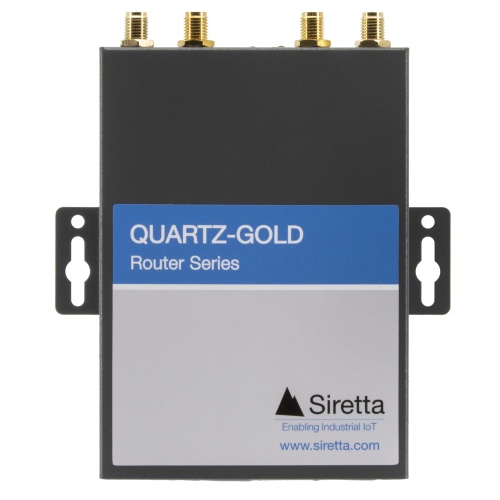

The QUARTZ-GOLD router has a robust design, encased in a small sized, metal enclosure, making it ideal for deployment in industrial embedded applications. The QUARTZ-GOLD software supports a number of high end VPN security protocols allowing the router to be used in commercial as well as industrial applications securely and reliably.

The QUARTZ-GOLD router meets many of the needs for management of remote systems and communication channels and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring, and many other IoT mobile broadband applications.

The QUARTZ-GOLD router comes as standard with a single SIM slot, dual port gigabit ethernet capability and 2.4GHz and 5GHz Wifi.

In addition the QUARTZ-GOLD supports RS232 serial connectivity as standard (RS485 can be ordered as an option) to connect remote equipment to a central resource using the Siretta LinkCONNECT TCP/IP serial gateway service. This service offering also allows you to interact directly to the cellular engine to automate notifications such as SMS alarm triggered alerts. It also allows your connected equipment to interrogate the connections status, signal strength and network parameters directly which can allow remote systems to run autonomously in the field.

  • European 4G / LTE bands
  • High speed data via LTE Cat 4 network
  • 2.4Ghz & 5GHz dual WiFi support
  • Strong resistance to electromagnetic interference
  • Built-in watch dog, multi-link detection
  • Compact industrial design
  • Excellent temperature endurance
  • VPN: OpenVPN, PPTP, L2TP, GRE, IPSec
  • 2 x GbE Local LAN (Router Mode)
  • 1 x GbE Local LAN & 1 x GbE Remote WAN (Backup Mode)

*Full GNSS Constellation available upon request subject to MOQ Requirements


2G
GSM
3G
UMTS
4G
LTE
CLI
Telnet
EMEA
Europe
Gbit
Ethernet
IP
Services
LAN
Dual Port
LTE
Cat 4
MIMO
Antenna
PSU
7V to 32V
RS232
Serial
RS485
Serial
SNMP
Manage
SSH
Manage
TEMP
-30 to +75 C
UPNP
Protocol
VPN
Tunnel
WAN
Backup
WEB
Portal
WIFI 5
802.11ac
WIFI
2.4G & 5G
WIN
Linux/MAC


RoHS
Compliant
CE
Compliant
3g router, 4g openvpn router, 4g router, 4g router with dual sim slot, 4g wifi router, dual sim router, industrial router, lte wireless router, machine to machine, umts router,open vpn,vpn router,mica-lte,mica

GSM Network Coverage
B3 (1800MHz)
B8 (900MHz)

UMTS Network Coverage
B1 (2100MHz)
B8 (900MHz)

LTE Network Coverage
B1 (2100MHz)
B3 (1800MHz)
B7 (2600MHz)
B8 (900MHz)
B20 (800MHz)
B28A (700MHz)
B38 (2600MHz)
B40 (2300MHz)
B41 (2500MHz)

Certification
UKCA
CE
RoHS
Complies to EN61000-6-2 Standards

Mechanical Specifications
Operating temperature range: -30 to 75°C
Storage temperature range: -40 to 85°C
Relative humidity: <95% (non-condensing)

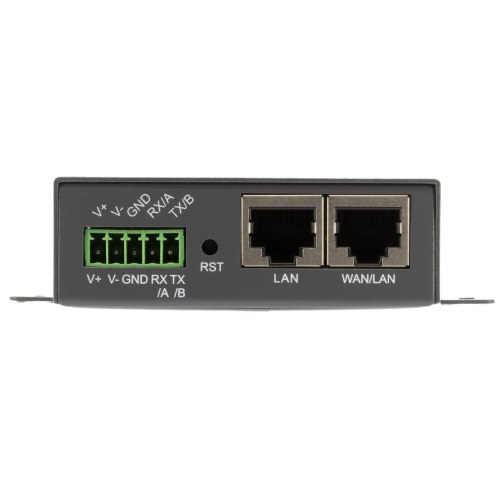

Physical Interfaces
1 × 100/1000Mb LAN Network interface
1 × 100/1000Mb WAN Internet interface

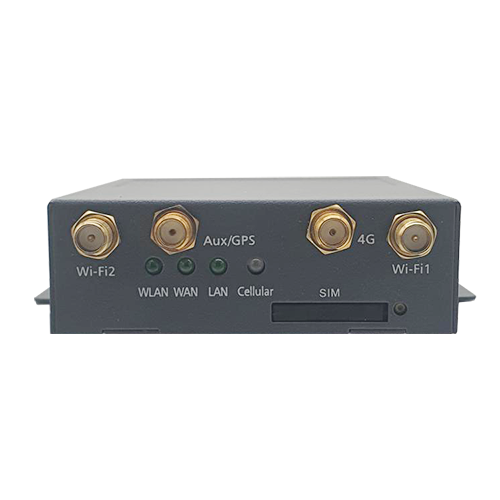

4 × SMA antenna interface
1 × RS232 Interface (RS485 can be ordered as an option)
1 × Standard SIM/R-UIM interface
1 × Standard DC power interface

Power and Consumption
Idle: 165mA @ +12V DC
Single mode comms: 320mA @ +12V DC
Dual mode comms: 600mA @ +12V DC
Power Supply: 7.5V – 32V DC

Features
Remote Access over HTTP/HTTPS
HTTPS Support
ICMP Ping Support
Integrated TCP/IP Services
NAT Support
DMZ Support
Port Redirection Support
Custom NTP Server Support
Internal logging and Remote Syslog Support
Current Routing Table
Static Routes

VPN Tunnel Support
OpenVPN Client
IPSec Tunnel
GRE Tunnel
L2TP Tunnel
PPTP Tunnel

Datasheet

QUARTZ-GOLD-LTE4 (EU) Datasheet

Manuals

Datasheets

QUARTZ-GOLD-LTE4 (EU) Datasheet

Quick Start Guides

QUARTZ-GOLD Quick Start Guide

Firmware Downloads

QUARTZ-GOLD (G5.0.1.5-221213)

Hardware Manuals

QUARTZ-GOLD Hardware Manual

Software Manuals

QUARTZ-GOLD Software Manual

User Manuals

QUARTZ-GOLD Quick Start Guide
QUARTZ-GOLD Software Manual
QUARTZ-GOLD Hardware Manual

Ordering Information

Siretta Part Number: 61133
Description: QUARTZ-GOLD-W21-LTE4 (EU) Gigabit Ethernet RS232 Industrial Router with dual WiFi

Request For Quote

Siretta Part Number: 62131
Description: QUARTZ-GOLD-W21(485)-LTE4 (EU) Gigabit Ethernet RS485 Industrial Router with dual WiFi

Request For Quote

Siretta Part Number: 61132

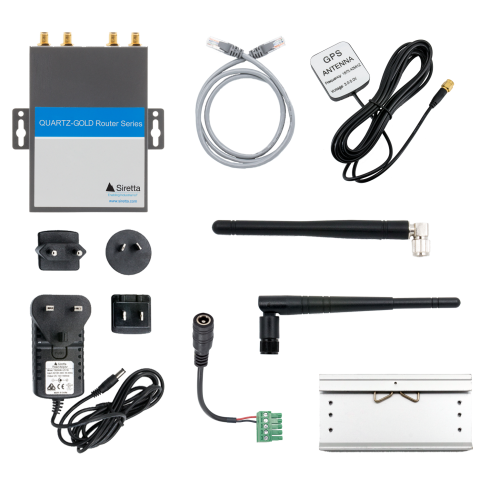

Description: QUARTZ-GOLD-W21-LTE4 (EU) Gigabit Ethernet RS232 Industrial Router with dual WiFi including accessory kit (Connecting Cables and Antennas)

Request For Quote

Siretta Part Number: 62008
Description: QUARTZ-GOLD-W21(485)-LTE4 (EU) Gigabit Ethernet RS485 Industrial Router with dual WiFi including accessory kit (Connecting Cables and Antennas)

Request For Quote
