Dual Port Gigabit Ethernet 5G NR Router (GL)QUARTZ-GOLD-5G Global NR Gigabit Ethernet, 2.4G + 5G Wi-Fi and RS232 Serial

The QUARTZ-GOLD-5G router is a high speed dual port gigabit ethernet industrial router designed for transferring large amounts of data via the 5G NR cellular network. The QUARTZ-GOLD-5G’s fast data transfer capability reaches up to 2.4Gbps download and up to 900Mbps upload speed. It also has fall-back to 4G/LTE and 3G/UMTS communication, should 5G NR be unavailable. It is well suited for high speed mobile broadband applications, offering reliable, secure wireless connectivity.

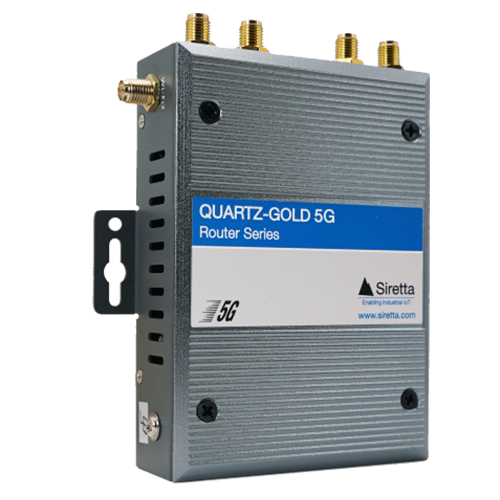

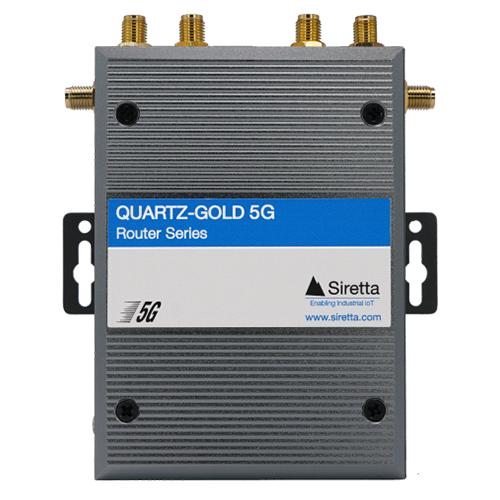

The QUARTZ-GOLD-5G router has a robust design, encased in a small sized metal enclosure, making it ideal for deployment in industrial embedded applications. The QUARTZ-GOLD-5G software supports a number of high end VPN security protocols allowing the router to be used in commercial as well as industrial applications securely and reliably.

The QUARTZ-GOLD-5G router meets many of the needs for management of remote systems and communication channels and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring, and many other IoT mobile broadband applications.

The QUARTZ-GOLD-5G router comes as standard with dual port gigabit ethernet capability and optional 2.4GHz and 5GHz Wi-Fi.

In addition the QUARTZ-GOLD-5G supports 1 x RS232 serial connectivity to connect remote equipment. The QUARTZ-GOLD-5G also allows you to interact directly to the cellular engine to automate notifications such as SMS alarm triggered alerts. It also allows your connected equipment to interrogate the connections status, signal strength and network parameters directly which can allow remote systems to run autonomously in the field.

  • Global 5G NR (NSA & SA Modes) , 4G / LTE and 3G / UMTS bands
  • High speed data downlink via LTE Cat 16 network
  • High speed data uplink via LTE Cat 18 network
  • 2.4 GHz & 5 GHz dual Wi-Fi support (Optional)
  • Strong resistance to electromagnetic interference
  • Built-in watch dog, multi-link detection
  • Compact industrial design
  • Excellent temperature endurance
  • VPN: OpenVPN, PPTP, L2TP, GRE, IPSec
  • 2 x GbE Local LAN (Router Mode)
  • 1 x GbE Local LAN & 1 x GbE Remote WAN (Backup Mode)

3G
UMTS
4G
LTE
5G
New Radio
AT
Over IP
CLI
Telnet
DATA
Real--Time
EMEA
Europe
Gbit
Ethernet
IP
Wireshark
LAN
Dual Port
LIVE
Stats
MIMO
Antenna
PSU
7V to 32V
PTP
Connect
RS232
Serial
SNMP
Manage
SSH
Manage
Syslog
Service
TEMP
-30 to +75 C
UPNP
Protocol
USER
Portal
VLAN
Network
VPN
Tunnel
VRRP
Protocol
WAN
Backup
WEB
Portal
WIFI 5
802.11ac
WIFI
2.4G & 5G
WIN
Linux/MAC
WW
Global


RoHS
Compliant
CE
Compliant
FCC
Compliant
UKCA
Compliant
3g router, 4g openvpn router, 4g router, 4g router with dual sim slot, 4g wifi router, dual sim router, industrial router, lte wireless router, machine to machine, umts router,open vpn,vpn router,mica-lte,mica, 5g new radio, 5g nr, robustel, r5020, quad gigabit, 4 x gb, 4 x gbe, digi, ex50

5G NR Network Coverage
n1 (2100MHz)
n2 (1900MHz)
n3 (1800MHz)
n5 (850MHz)
n7 (2600MHz)
n8 (900MHz)
n12 (700MHz)
n13 (700MHz)
n14 (700MHz)
n18 (850MHz)
n20 (800MHz)
n25 (1900MHz)
n26 (850MHz)
n28 (700MHz)
n29 (700MHz)
n30 (2300MHz)
n38 (2600MHz)
n40 (2300MHz)
n41 (2500MHz)
n48 (3500MHz)
n66 (1700MHz)
n70 (2000MHz)
n71 (600MHz)
n75 (1500MHz)
n76 (1500MHz)
n77 (3700MHz)
n78 (3500MHz)
n79 (4700MHz)

LTE Network Coverage
B1 (2100MHz)
B2 (1900MHz)
B3 (1800MHz)
B4 (1700MHz)
B5 (850MHz)
B7 (2600MHz)
B8 (900MHz)
B12 (700MHz)
B13 (700MHz)
B14 (700MHz)
B17 (700MHz)
B18 (850MHz)
B19 (850MHz)
B20 (800MHz)
B25 (1900MHz)
B26 (850MHz)
B28 (700MHz)
B29 (700MHz)
B30 (2300MHz)
B32 (1500MHz)
B34 (2000MHz)
B38 (2600MHz)
B39 (1900MHz)
B40 (2300MHz)
B41 (2500MHz)
B42 (3500MHz)
B43 (3700MHz)
B46(LAA) (5200MHz)
B48 (3500MHz)

UMTS Network Coverage
B1 (2100MHz)
B2 (1900MHz)
B4 (1700MHz)
B5 (850MHz)
B8 (900MHz)
B19 (800MHz)

Mechanical Specifications
Operating temperature range: -30 to 75°C
Storage temperature range: -40 to 85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces

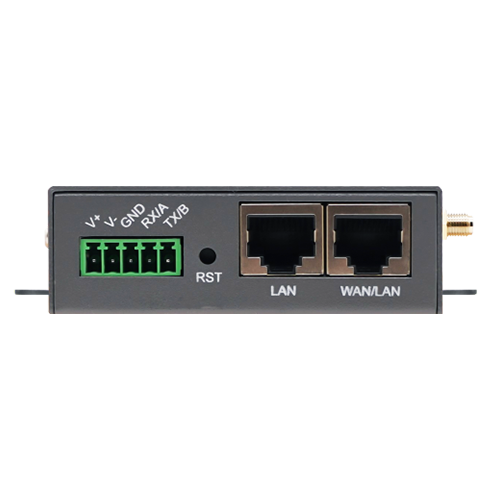

2 x Gigabit RJ-45 Ethernet Interfaces
1 × Standard SIM/R-UIM interface
2 x RP-SMA (Male) Wi-Fi Interface (For Wi-Fi equipped Models)

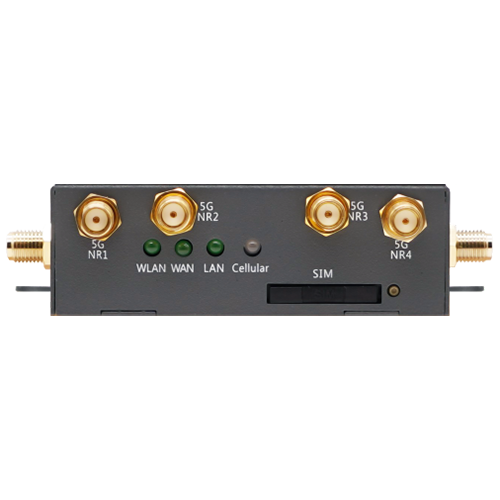

4 × SMA (Female) Cellular interface
1 x Serial RS232
1 × DC Power Interface (7.5 to 32 V DC)

Power and Consumption
Idle: 600mA @ +12V DC
Communications: 850mA @ +12V DC

Certification
CE
UKCA
FCC (TBC)
RoHS



Features
Captive User Portal
Current Routing Table
Custom NTP Server Support
DDNS Support
Direct Modem Access
DMZ Support
HTTPS Support
ICMP Ping Support
Integrated TCP/IP Services
Internal logging and Remote Syslog Support
NAT Support
Network Bandwidth Throttling
Port Redirection Support
Port Triggering
Remote Access over HTTP/HTTPS
Static DHCP
Static Routing
WAN Backup
Wireless Network Survey
Wake On LAN Support

VPN Tunnel Support
GRE Tunnel
IPSec Tunnel
L2TPv3 Client
OpenVPN Client
PPTP/L2TP Client

NOTE: If your QUARTZ-GOLD 5G has default firmware G9.xxxx please email [email protected]

Datasheets

QUARTZ-GOLD-5G Datasheet

Quick Start Guides

QUARTZ-GOLD-5G Quick Start Guide

Hardware Manuals

QUARTZ-GOLD-5G Hardware Manual

Software Manuals

QUARTZ-GOLD-5G Software Manual

Additional Documents

Siretta Device Safety and Product Care

Ordering Information

Siretta Part Number: 61901
Description: QUARTZ-GOLD-21-5G (GL) Gigabit Ethernet Industrial Router

Request For Quote

Siretta Part Number: 61902

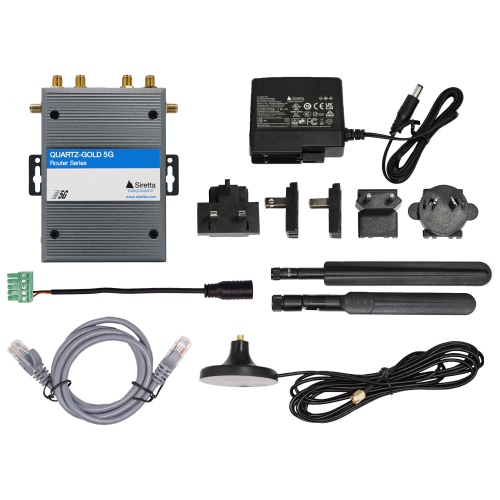

Description:  QUARTZ-GOLD-21-5G (GL) Gigabit Ethernet Industrial Router including accessory kit (Connecting Cables and Antennas)

Request For Quote

Siretta Part Number: 61867
Description:  QUARTZ-GOLD-W21-5G (GL) Gigabit Ethernet Industrial Router with dual Wi-Fi

Request For Quote

Siretta Part Number: 61896
Description:  QUARTZ-GOLD-W21-5G (GL) Gigabit Ethernet Industrial Router with dual Wi-Fi including accessory kit (Connecting Cables and Antennas)

Request For Quote
