SIM Free - Single Survey LTE Analyser (USA)SNYPER-LTE+ (USA) High performance 4G / LTE network signal analyser

The SNYPER-LTE+ (USA) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE & 3G/UMTS North American networks. The SNYPER-LTE+ (USA) does not require a SIM in order  to provide network survey results.

It incorporates a number of important features and can perform three types of survey: 4G/LTE only, 3G/UMTS only and a combined 4G/LTE & 3G/UMTS survey. The combined 4G/LTE & 3G/UMTS survey will provide multiple results from each network operator, in one single survey.

The powerful SNYPER summary page displays percentage thresholds to determine the most suitable mobile network operator available and the performance of a “preferred” MNO can be evaluated against the other networks.

The SNYPER can also be used to help establish optimum antenna placement and perform local site surveys.

  • Enhanced cellular surveying of new and existing installations on 4G and 3G networks
  • Establish most suitable operator for application
  • Evaluate your “preferred” MNO’s performance
  • Determine optimum antenna placement
  • Results are reported in CSV & graphical HTML format
  • SIM free operation on all bands and technologies
  • Complete network breakdown and summary results
  • SNYPER-LTE plus (USA)-image above

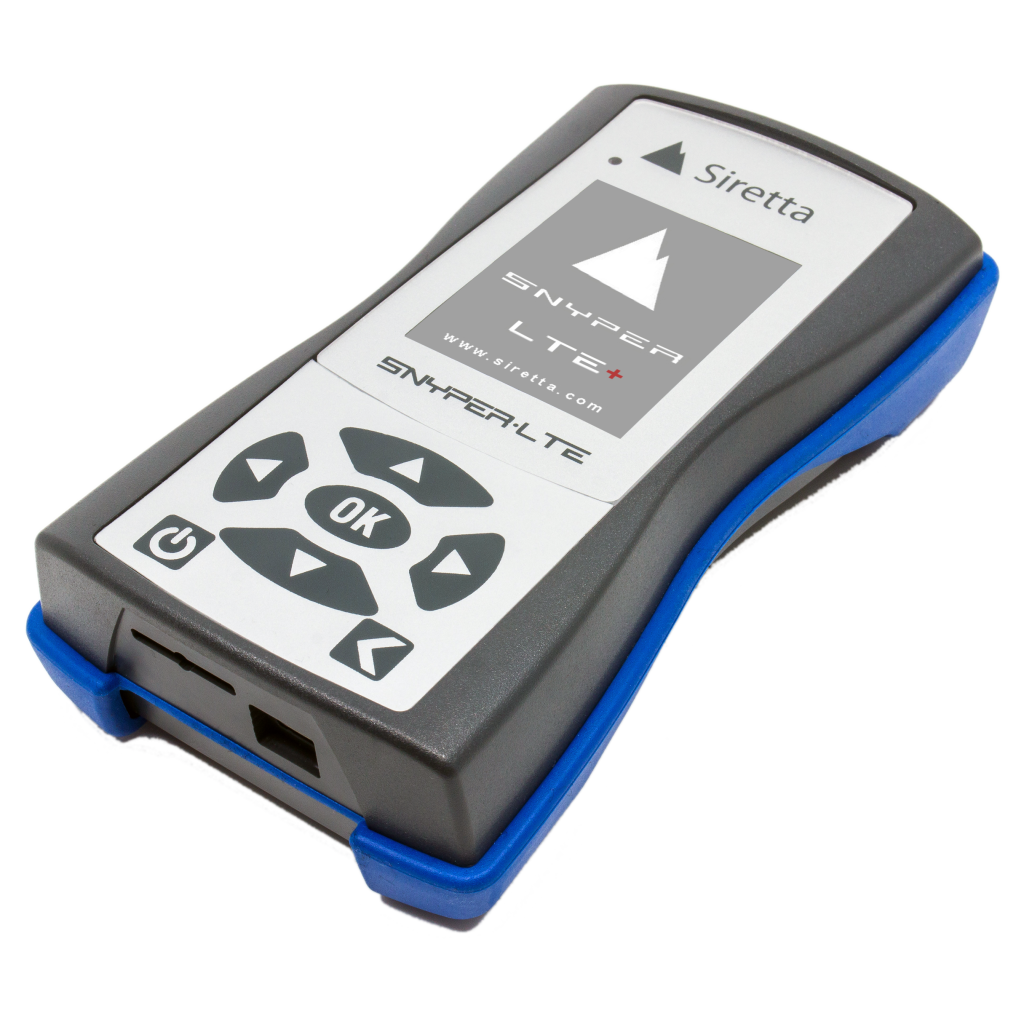

  • Snyper-LTE+ 3D(USA)
  • Snyper-LTE-bottom
  • Snyper-LTE-side
  • Snyper-LTE-top

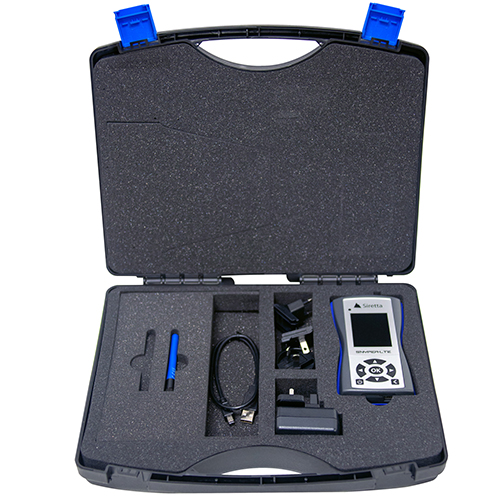

  • synper-lte-carrycase-open-500×500-2

Product Features
2Ah
Battery
3G
UMTS
4G
LTE
CSV
Reports
Cloud
SURVEY
GEAR
Accessories
HARD
Carry Case
HTML
Reports
MAP
Portal
MNO
Summary
MULTI
Language
SAVE
1 Survey
SIM
Free
TEMP
-10 to +50 C
TFT
Display
USA
Americas
USB
Power
USB
Serial
WIN
Linux/MAC

Product Compliance
RoHS
Compliant
REACH
Compliant
TSCA
Assessed
CMRT
Aligned
Anti
Slavery
CE
Compliant

SNYPER-LTE (USA) V1

4 Supported Bands 4G / LTE

  • B12-B13 (700 MHz)
  • B5 (850 MHz)
  • B4 (1700 MHz)
  • B2 (1900 MHz)

2 Supported Bands 3G / UMTS / HSPA+

  • B5 (850 MHz)
  • B2 (1900 MHz)
  • SNYPER-LTE (USA) V2

SNYPER-LTE (USA) V2

8 Supported Bands 4G / LTE

  • B71 (600 MHz)
  • B12-B13 (700 MHz)
  • B14 (700 MHz)
  • B5 (850 MHz)
  • B4 (1700 MHz)
  • B66 (1700 MHz)
  • B2 (1900 MHz)

3 Supported Bands 3G / UMTS / HSPA+

  • B5 (850 MHz)
  • B4 (1700 MHz)
  • B2 (1900 MHz)

Mechanical Specifications

  • Operating temperature range: -10 to +50°C
  • Storage temperature range: -20 to +50°C
  • Relative humidity:

Power and Consumption

  • Power: 5V @ 500mA from USB supply
  • Battery: Lithium Ion 3.7V, 2000mAh
  • Life: 48 hours based on 20 surveys/day
  • Warm up time: 2s

Certification

  • FCC
  • RoHS

Ordering Information

Siretta Part Number: 61216
Description: SNYPER-LTE+ (USA) V2 Network Signal Analyser with Accessories and Hard Carry Case

Request For Quote
