To identify the ideal Industrial Cellular Modem for your application we have developed the Modem Selector Tool which is a configurable filter to narrow down the results to match your exact requirements.

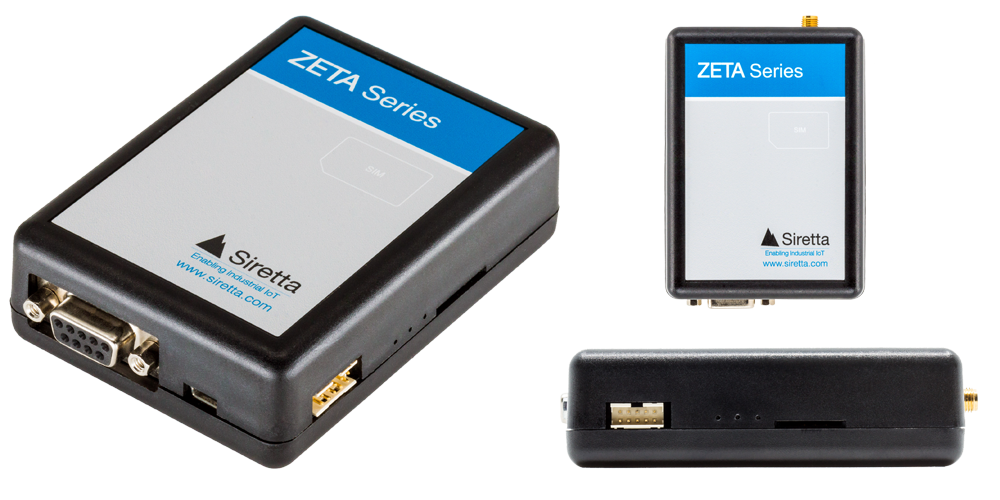

Siretta Modem Range

The Siretta range of industrial low power modem solutions are a family of cellular enabled modems which have been designed to an industrial specification to allow an easy connection for remote devices over the internet. The family of products supports a standard set of features including low power operation with a wide range and robust power supply, RS232 and USB serial connectivity and extended temperature spec as standard.

Each member of the modem family supports an embedded TCP/IP stack for simple network connectivity and an enhanced set of AT commands to support many advanced features such as FTP, email, SMS, CSD, direct data socket connections and over the air software updates. As a result the units are designed to be used as a direct replacement for existing equipment and can be easily setup with the correct commands to operate out-of-the-box.

In addition to the data communication services offered by the industrial low power modem family, they can also be configured to detect the cellular network provider, signal strength and perform a complete network survey to establish the optimum network for the location.

Siretta Industrial Low Power Modem Application Example

The power supply has been designed to cope with difficult operating environments such as wide voltage spikes seen with an engine cranking and also extremes of operation at low and high voltage operation. With the latest application developments there is a requirement for solutions to run on a much lower power budget and as a result Siretta has designed a family of extremely low power products. These products encompass an intelligent power management solution to shut down power to any non essential components and reduce consumption to an absolute minimum. When running the cellular engine in its lowest power state these devices can operate at less than 1mA whilst remaining connected to the cellular network. This means that they are always online and available to respond to incoming data socket connections whilst drawing substantially lower power than existing solutions.

The Siretta industrial low power modem family also support eSIM profiles to allow multiple SIM profiles to be stored within the cellular engine. This allows users to specify in real time which network they want to connect to and enables a global connectivity platform to take advantage of different pricing structures around the globe. Profiles can also be downloaded in to the unit once they have been shipped in to the field which means that there is no longer a need for an engineering visit.

The Siretta industrial low power modem solutions can be connected to most existing applications and remote equipment in the field can be configured to control and remotely access online resources with the minimal amount of effort using the serial interface and a standard set of AT commands.

Modem Features:

  • AT Command Interface for Complete Control
  • Low power solutions for sensitive power budget applications
  • Optional automatic reboot timer
  • Embedded TCP/IP software stack
  • Pre-configured eSIM enabled solution
  • Remote Firmware Over The Air (FOTA) updates
  • Embedded C Programming Environment for Intelligent Applications
  • 2G / GPRS for low cost legacy connectivity
  • 3G / UMTS for intermediate connectivity
  • 4G / LTE Cat 1 for medium performance, medium speed internet access
  • 4G / LTE Cat 4 for high performance, high speed internet access
  • LTE Cat M / NB IoT for next generation LTE IoT connectivity

Low Power Industrial ZETA Modem Interfaces

ZETA Model LTE Category Ultra Low Power Low Power Digital Inputs Digital Outputs ADC Inputs Debug RS232 PSU Output GNSS Position
ZETA-NLP-LTEM (GL) M / NBIoT Yes
ZETA-NLP-LTE1 (EU) 1 Yes
ZETA-NSP-LTE1 (EU) 1 Yes
ZETA-NEP-LTEM (GL) M / NBIoT Yes 3 2 1 Yes Yes
ZETA-NEP-LTE4 (EU) 4 Yes 3 2 1 Yes Yes
ZETA-GEP-LTE4 (EU) 4 Yes 3 2 1 Yes Yes Yes

(GL) = Global Region | (EU) = European Region | (USA) = American Region

Low Power Industrial ZETA Modem Data Throughput

ZETA Model LTE Category Data Uplink Data Downlink
ZETA-NLP-LTEM (GL) M / NBIoT 375 kbps 300 kbps
ZETA-NLP-LTE1 (EU) 1 5 Mbps 10 Mbos
ZETA-NSP-LTE1 (EU) 1 5 Mbps 10 Mbps
ZETA-NEP-LTEM (GL) M / NBIoT 375 kbps 300 kbps
ZETA-NEP-LTE4 (EU) 4 50 Mbps 150 Mbps
ZETA-GEP-LTE4 (EU) 4 50 Mbps 150 Mbps

(GL) = Global Region | (EU) = European Region | (USA) = American Region

Benefits:

  • Reduced risk of deployment with tried and tested reliable industrial solution
  • Quickly develop into your application to provide internet access to remote equipment
  • Increase response times and equipment reliability without adding any complicated system infrastructure
  • System agnostic design supports any type of equipment or operating system
  • Automatically detect network and perform network scan
  • Multiple device options allow for a single footprint and form factor solution to provide end equipment with all connectivity options
  • Cost savings and improvements in efficiency by reducing costly engineer callouts, improved reporting on entire estate and monitor high usage areas to provide better maintnenance

Feedback:

  • Due to the wide range of solutions available we have a fully future proof roadmap to cover low speed 2G and low power LTE cat M all the way up to high speed LTE cat 4
  • The rugged design means that the equipment is ultra reliable in the field with a whole host of enhanced service offerings to offer a long term field solution
  • Improvements in overall system performance increase revenues and offer the ability to provide additional services to end customers and for customers to remotely monitor system performance

Common application areas include:

  • Internet enable remote equipment in the field
  • Remotely access information from your estate of devices
  • Allow legacy equipment to become internet enabled
  • Push software and firmware updates to remote devices
  • Add cellular connectivity with minimal development work
  • Control, monitor and improve performance of remote equipment
  • Burglar Alarm / Fire Alarm / PIR Alarm remote access

Low Power Industrial ZETA Modem Regional Coverage

ZETA Model LTE Category B1 B2 B3 B4 B5 B7 B8 B12 B13 B18 B19 B20 B26 B28
ZETA-NLP-LTEM (GL) M / NBIoT Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
ZETA-NLP-LTE1 (EU) 1 Yes Yes Yes Yes Yes Yes
ZETA-NSP-LTE1 (EU) 1 Yes Yes Yes Yes Yes Yes
ZETA-NEP-LTEM (GL) M / NBIoT Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
ZETA-NEP-LTE4 (EU) 4 Yes Yes Yes Yes Yes Yes
ZETA-GEP-LTE4 (EU) 4 Yes Yes Yes Yes Yes Yes

(GL) = Global Region | (EU) = European Region | (USA) = American Region

Siretta industrial managed modem solutions are intelligent modems which have been designed to connect remote equipment over a TCP/IP connection to a central location. Very little knowledge is required to setup the modem and configure the Siretta linkCONNECT solution. The unit can be setup to operate out-of-the-box and configured remotely via SMS once in the field or alternatively it can be pre-configured before deployment via a serial configuration tool.

The configuration of the managed modem solutions is controlled by the user simply using command SMS messages sent from a standard mobile phone. Alternatively when configuring large volumes of units there is a configuration tool which configures the unit over RS232 serial and can be replicated very quickly to aid the production programming. The configuration can be saved to a ‘.gtc’ file which can be deployed and re-used in multiple locations and production environments.

Siretta linkCONNECT Application Example

linkCONNECT Application

The managed modem solution deals with all common cellular network issues and maintains a robust connection to the cellular network which enables a consistent communication channel with your remote equipment. The units are configurable as a dial-up client using either static or dynamic IP SIMs or alternatively as a dial-in server device using a static fixed IP SIM card. This offers the most flexibility to gain access to information on your remote equipment and provides the most cost effective solution with regards to providing a cellular tariff to suit your entire estate.

Siretta industrial managed modem solutions are used to cellular enable new and existing equipment without any need for product development or the need to understand complicated software application development. The managed modems work out of the box and can be installed immediately in to you application once you have tested the operating process in a test environment.

The managed solutions can be setup simply via a standard mobile phone and uses a remote link to transmit information from your equipment to a central location to record, log and control the application. The Siretta managed modem solution enables remote access to all of the interfaces in your application and can enable you to query a host of sensors, processes, power usage and any number of other important parameters.

The managed modem detects the cellular network provider and can automatically configure the GPRS network settings for the connected network eliminating the need to enter any network specific details (only for dial-up client mode). The only settings which are required to be entered are the IP address / domain of the server where the solution is connecting to and the listening port on the server. Once these settings are configured the unit will establish and maintain a connection to the server once there is data available to be sent. Alternatively you can configure the device to maintain the connection permanently using client maintain. In the event of the network dropping a connection the unit will attempt to reconnect to the server and the software employs a number of techniques to ensure a robust, reliable connection.

The managed modem solution is agnostic of the connected equipment as the software within the unit controls and manages the internet link and TCP connection to route the RS232 serial data over the cellular network. As a result the unit can support any protocol or data type including binary and ASCII data so that the underlying operating system or control software within the equipment does not need to interact with the connected modem solution. This means that there needs to be no understanding of the the connection mechanics which makes connecting any remote equipment quick and simple.

Common application areas include:

  • Cellular enable equipment in the field
  • Remotely access information from your estate
  • Allow legacy equipment to become data enabled
  • Remote software updates to remote devices
  • Add cellular connectivity without any development work
  • Plug and play directly to your existing application

Features:

  • Automatic network detection and setup
  • Automatic APN setup (standard on UK networks)
  • Remote SMS configuration
  • Cellular and GPRS keepalive with mulitple options
  • Configurable automatic reboot timer
  • Configurable connection timeout
  • CSD backup for GPRS failure

Advantages:

  • Simple to set up and change configuration remotely using standard SMS commands
  • System agnostic design supports any type of equipment or operating system
  • Automatically and reliably routes bidirectional serial data simultaneously
  • Network registration is maintained and automatically reconnected when lost

Benefits:

  • Reduced risk of deployment with the ability to make changes simply and easily in the field
  • Quickly gain diagnostic information of remote site equipment with no equipment changes required
  • Increase response times and equipment reliability without adding any complicated system infrastructure
  • Cost savings and improvements in efficiency by reducing costly engineer callouts, improved reporting on entire estate and monitor high usage areas to provide better maintnenance

Feedback:

  • Due to the simplicity of the linkCONNECT software we have many customers using the solution in many varied applications.
  • The plug-and-play design means that the end equipment needs no modifications at all to communicate reliably and simply to a remote server
  • Improvements in overall system performance increase revenues and offer the ability to provide additional services to end customers
