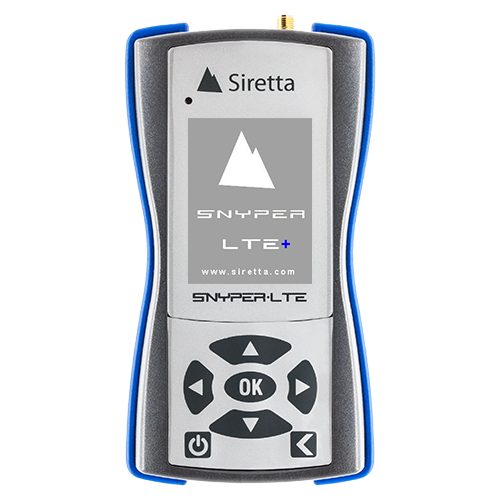

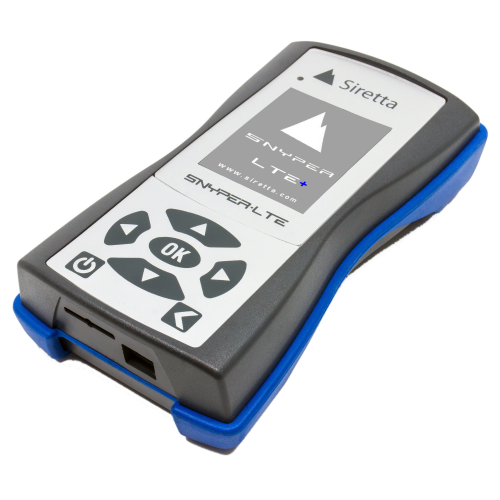

The SNYPER-LTE+ (EU) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE, 3G/UMTS & 2G/GSM European networks. The SNYPER-LTE+ (EU) does not require a SIM in order  to provide network survey results.

It incorporates a number of important features and can perform four types of survey: 4G/LTE, 3G/UMTS, 2G/GSM and a combined 4G/3G/2G survey. The combined 4G/3G/2G survey will provide multiple results from each network operator, in one single survey.

The powerful SNYPER summary page displays percentage thresholds to determine the most suitable mobile network operator available and the performance of a “preferred” MNO can be evaluated against the other networks.

The SNYPER can also be used to help establish optimum antenna placement and perform local site surveys.

  • Enhanced cellular surveying of new and existing installations on 4G, 3G and 2G networks
  • Establish most suitable operator for application
  • Evaluate your “preferred” MNO’s performance
  • Determine optimum antenna placement
  • Results are reported in CSV & graphical HTML format
  • SIM free operation on all bands and technologies
  • Complete network breakdown and summary results

2Ah
Battery
2G
GSM
3G
UMTS
4G
LTE
CSV
Reports
EMEA
Europe
GEAR
Accessories
HARD
Carry Case
HTML
Reports
LTE
Cat 4
MAP
Portal
MNO
Summary
MULTI
Language
SAVE
1 Survey
SIM
Free
TEMP
-10 to +50 C
TFT
Display
USB
Power
USB
Serial
WIN
Linux/MAC
3g signal strength tester,4g network analyser,4g network base station detection,4g network signal logging,lte network analyser,lte network signal logging,lte signal strength tester,network signal logging

SNYPER-LTE (EU) V1

5 Supported Bands 4G / LTE
B1 (2100 MHz)
B3 (1800 MHz)
B7 (2600 MHz)
B8 (900 MHz)
B20 (800 MHz)

2 Supported Bands 3G / UMTS / HSPA+
B8 (900 MHz)
B1 (2100 MHz)

2 Supported Bands 2G / GSM / GPRS
B8 (900 MHz)
B3 (1800 MHz)

SNYPER-LTE (EU) V2

6 Supported Bands 4G / LTE
B1 (2100 MHz)
B3 (1800 MHz)
B7 (2600 MHz)
B8 (900 MHz)
B20 (800 MHz)
B28A (700 MHz)

3 Supported Bands 3G / UMTS / HSPA+
B8 (900 MHz)
B1 (2100 MHz)
B3 (1800 MHz)

2 Supported Bands 2G / GSM / GPRS
B8 (900 MHz)
B3 (1800 MHz)

Mechanical Specifications
Operating temperature range: -10 to +50°C
Storage temperature range: -20 to +50°C
Relative humidity: <85% (non-condensing)

Physical Interfaces
1 x USB 2.0 FS (12 MBits/s)
1 x SMA female cellular antenna connector
1 x Red LED charging indicator
1 x 2.4″ Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multi function keypad

Power and Consumption
Power: 5V @ 500mA from USB supply
Battery: Lithium Ion 3.7V, 2000mAh
Life: 48 hours based on 20 surveys/day
Warm up time: 2s

Certification
CE
RoHS

Datasheet

SNYPER-LTE+ (EU) Datasheet

Manuals

SNYPER-LTE+ (EU) V1/V2 Datasheet
SNYPER-LTE+ Spectrum (EU) V1/V2 Datasheet
SNYPER V2 – Comparison Chart
SNYPER Firmware Update Guide
7 Great Things about the SNYPER-LTE+
SNYPER Programming Guide (Rev 1.1)
SNYPER-LTE+ Family Quick Start Guide
SNYPER-LTE+ & Spectrum Flyer
SNYPER-LTE Family Product Comparison
SNYPER-LTE+ Family User Manual

Ordering Information

Siretta Part Number: 60808

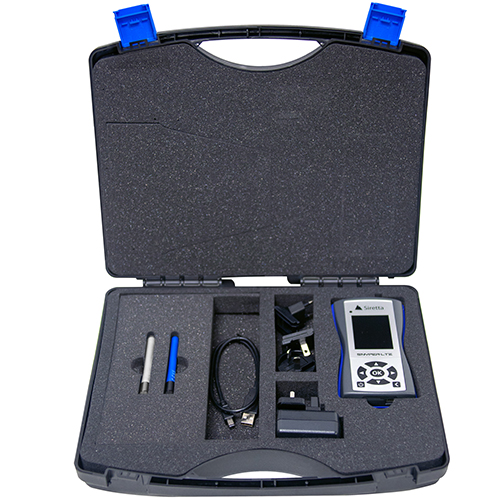

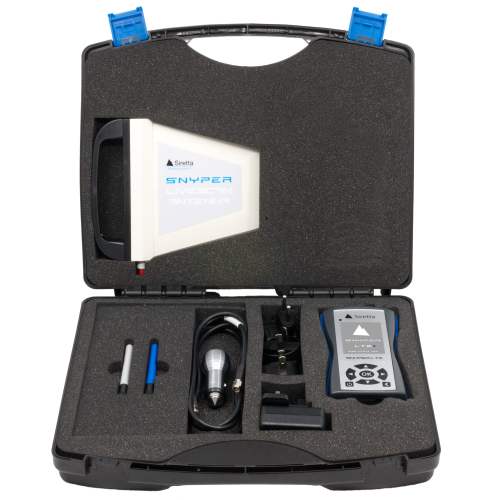

Description: SNYPER-LTE+ (EU) Network Signal Analyser with Accessories and Hard Carry Case

Request For Quote

Siretta Part Number: 61035
Description: SNYPER-LTE+ (EU) Network Signal Analyser Only (Without Accessories and Hard Carry Case)

Request For Quote
