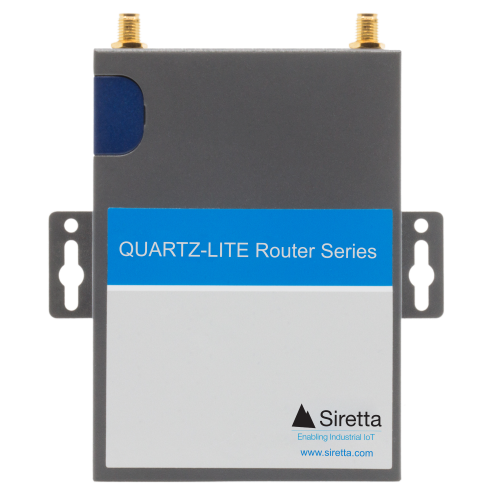

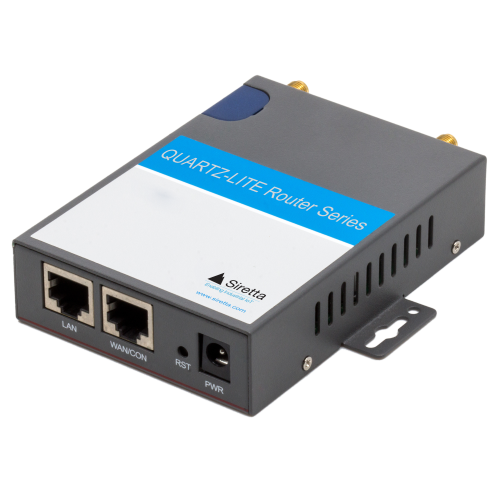

Dual Port Small Footprint LTE Router (EU) with GPSQUARTZ-LITE-LTE (EU) Dual LAN Small Footprint Industrial Router

The QUARTZ-LITE-LTE router is a high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-LITE-LTE’s fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable. It is well suited for IoT mobile broadband applications, offering reliable, secure wireless connectivity.

The QUARTZ-LITE-LTE router has a robust design, coming in a small sized, metal enclosure, making it ideal for deployment in industrial embedded applications. The QUARTZ-LITE software supports VPN security allowing the router to be used in commercial as well as industrial applications.

The QUARTZ-LITE-LTE router meets many of the needs for management of remote communication and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring, and many other IoT mobile broadband applications.

The QUARTZ-LITE router comes as standard with a single SIM slot, dual port ethernet capability and has the option to come with, or without, Wifi. It also has optional GPS capability, which means the router is ideal for asset tracking or access management.

  • European 4G / LTE bands
  • High speed data via LTE network
  • Strong resistance to electromagnetic interference
  • Built-in watch dog, multi-link detection
  • Compact industrial design
  • Excellent temperature endurance
  • VPN: PPTP, L2TP, GRE, IPSec
  • Optional GPS

2G
GSM
3G
UMTS
4G
LTE
CLI
Telnet
EMEA
Europe
GPS
Position
LAN
Dual Port
LIVE
Stats
NAT
Mapping
PSU
7V to 32V
PTP
Connect
SMALL
Footprint
SNMP
Protocol
SSH
Manage
Syslog
Service
TEMP
-30 to +70 C
TRACE
Route
UPNP
Protocol
VPN
Tunnel
WAN
Backup
WIFI 4
802.11n
WIFI
2.4G
WIN
Linux/MAC


RoHS
Compliant
CE
Compliant
3g router, 4g openvpn router, 4g router, 4g router with dual sim slot, 4g wifi router, dual sim router, industrial router, lte wireless router, machine to machine, umts router,open vpn,vpn router,mica-lte,mica

GSM Network Coverage
B3 (1800MHz)
B8 (900MHz)

UMTS Network Coverage
B1 (2100MHz)
B5 (850MHz)
B8 (900MHz)

LTE Network Coverage
B1 (2100MHz)
B3 (1800MHz)
B5 (850MHz)
B7 (2600MHz)
B8 (900MHz)
B20 (800MHz)

Certification
UKCA
CE
RoHS

Mechanical Specifications
Operating temperature range: -30 to 70°C
Storage temperature range: -40 to 85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces

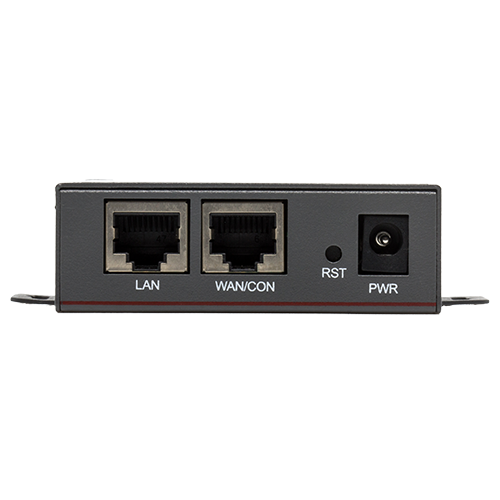

2 x 10/100Mb LAN (2 x LAN)

Power and Consumption
Idle: 80mA @ +12V DC
Single mode comms: 320mA @ +12V DC
Dual mode comms: 600mA @ +12V DC
Power Supply: 7.5V – 32V DC

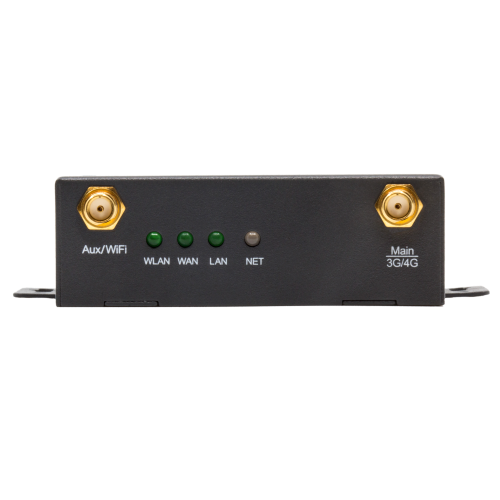

1 x 3G/4G SMA female antenna interface
1 x standard mini SIM interface (2FF)
1 x standard DC power interface

Features
Remote Access over HTTP/HTTPS
HTTPS Support
ICMP Ping Support
Integrated TCP/IP Services
NAT Support
DMZ Support
Port Redirection Support
Custom NTP Server Support
Internal logging and Remote Syslog Support
Current Routing Table
Static Routes

VPN Tunnel Support
OpenVPN Client
IPSec Tunnel
GRE Tunnel
L2TP Tunnel
PPTP Tunnel

Datasheets

QUARTZ-LITE-LTE Datasheet

Quick Start Guides

QUARTZ Family Quick Start Guide

Hardware Manuals

QUARTZ-LITE Hardware Manual

Software Manuals

QUARTZ-LITE Software Manual

Additional Documents

Router Fact Sheet
Siretta Device Safety and Product Care

Ordering Information

Siretta Part Number: 60383
Description: QUARTZ-LITE-G21-LTE (EU) Dual port router with GPS

Request For Quote

Siretta Part Number: 60804
Description: QUARTZ-LITE-GW21-LTE (EU) Dual port router with WiFi and GPS

Request For Quote

Siretta Part Number: 60281

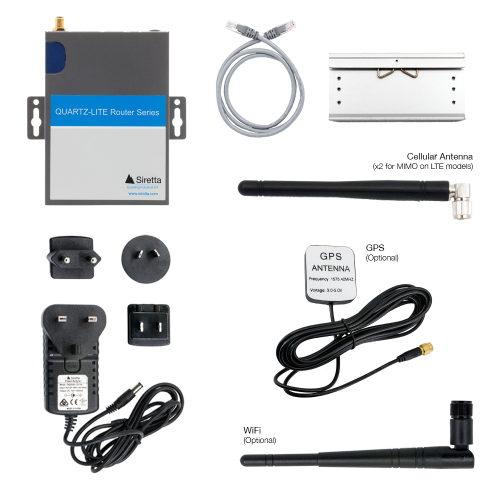

Description: QUARTZ-LITE-G21-LTE (EU) Dual port router with GPS including accessory Kit (Connecting Cables and Antennas)

Request For Quote

Siretta Part Number: 60805
Description: QUARTZ-LITE-GW21-LTE (EU) Dual port router with WiFi and GPS including accessory Kit (Connecting Cables and Antennas)

Request For Quote
