Siretta Ultra Band Cables

Siretta Ultra Band Cables – SHC300 are high-performance assemblies engineered for demanding high-frequency and broadband applications. Supporting operation up to 40 GHz with 2.92 mm connectors, they deliver low insertion loss, excellent phase stability, and exceptional shielding effectiveness, ensuring consistent signal integrity across the full frequency range. Each assembly is built using premium materials and precision SMA or 2.92 mm connectors to provide superior electrical and mechanical reliability. The SMA versions operate up to 26.5 GHz, while the 2.92 mm variants extend capability to 40 GHz, meeting the needs of modern high-bandwidth and K-band systems. The cable utilizes flame-retardant materials tested in accordance with IEC 60695-11-10:2013 Method B, providing enhanced fire safety while maintaining the outstanding electrical performance required for demanding RF and microwave applications. Whether connecting a VNA to a device under test, linking components in a high-frequency test bench, or integrating advanced RF modules, SHC300 cables ensure accurate, repeatable, and stable performance in every application.

Key Features

  • Frequency range up to 40 GHz
  • Low insertion loss for improved signal integrity
  • Excellent VSWR and return loss performance
  • High-accuracy and repeatable measurements
  • Compatible with leading RF test instruments
  • Ideal for harmonic, spurious emission and compliance testing

Applications

  • RF and microwave testing
  • VNA and spectrum analyser measurements
  • 5G, cellular and wireless device testing
  • Antenna development and verification
  • Aerospace and defence applications
  • Manufacturing and production test environments

SHC300 Cable Standard Parts

Electrical Specification

Nominal Impedance 50 Ohm
Nominal Capacitance 86pf/m
Nom. Velocity of Propagation 85%
Shielding Effectiveness (dB@1GHz) >90dB
Phase change vs Temperature ≤2200ppm (-55 to +85°C)
Attenuation dB/1m  1.0GHz 10.0GHz 18.0GHz 26.5GHz 40.0GHz
0.39dB 1.31dB 1.81dB 2.23dB 2.85dB

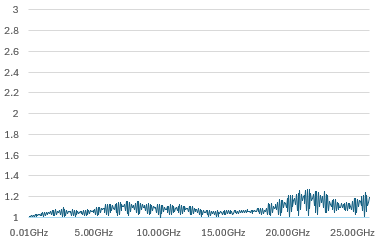

VSWR

Physical Specification

Material Diameter (mm)
Center Conductor Silver plated copper 0.91
Dielectric ePTFE 2.69
1st Outer Conductor Silver-plated copper tape —
2nd Outer Conductor Silver-plated copper braid 3.10
Jacket FEP 3.60
Operating temperature -65 to +165°C
