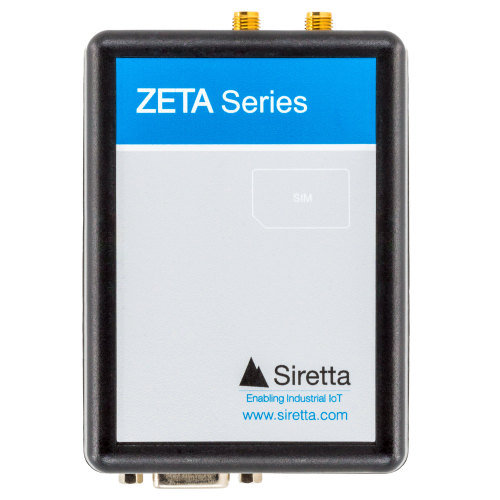

Low Power LTE Cat 4 European Modem with GPIO and GNSSZETA-GEP-LTE4 (EU) with RS232, USB serial, GPIO and GNSS

The ZETA-GEP-LTE4 (EU) is a cutting edge, low power industrial modem with general purpose interfaces. It will connect equipment to the European LTE Cat 4 network and provide backwards compatibility to the existing European 3G / UMTS and 2G / GSM cellular networks. The modem has a full global GNSS receiver which supports GPS, Glonass, BeiDou, QZSS and Galileo and operates in a low power state which makes it ideal for use in industrial IoT applications today and for long term future developments.

The unique feature of the ZETA-GEP-LTE4 (EU) allows it to run in a low power state due to its intelligent power saving design whilst monitoring general purpose inputs and driving full specification outputs. Additionally the range offers interface options including legacy RS232 for connection to existing equipment and a high speed USB interface.

The multi-function header also offers the following interfaces to the user:

  • 3 x General Purpose Inputs (0V-42V tolerant)
  • 2 x General Purpose Outputs (0V-42V @ 1A)
  • 1 x Analogue to Digital Interface (0-42V range)
  • 1 x RS232 debug serial port (3-wire interface)
  • 1 x Peripheral Power Interface / Output Supply (Vcc)

The powerful C development environment reduces redundancy and lowers system component costs, allowing developers to maximise the power of their application directly on the device and eliminating the requirement for an external microcontroller. The application programming environment can provide cloud edge processing for interfacing to equipment in the field and offers the ability to make intelligent decisions without requiring a permanent online connection to a gateway server.

As a result the ZETA-GEP-LTE4 (EU) lends itself to rapid proof-of-concept developments with minimal investment, providing fast time to market and maximum scalability offering intelligence and decision making at the cloud edge.

The ZETA family of industrial modems has built up a solid reputation as a low cost, low power, reliable and dependable modem which has been established over a number of years.

  • CCTV
  • Video Surveillance
  • Car Parking Payment
  • Kiosks
  • Smart Cities
  • Alarm Notification Systems
  • Environmental Monitoring
  • Asset Tracking
  • Telematics
  • ANPR
  • Agriculture
  • Security Systems
  • Food and Beverage

2G
GSM
3G
UMTS
4G
LTE
5~42V
Industrial
ADC
Interface
AT
Commands
CODE
Embedded
CSD
Dialup
EDGE
Intelligence
EMEA
Europe
FOTA
Updates
GNSS
Position
GPIO
Interface
GPRS
Enabled
IP
Services
LOW
Power
LTE
Cat 4
RS232
Debug
RS232
Serial
SIM
Toolkit
SMS
Enabled
TEMP
-40 to +85 C
USB
Serial
VoLTE
Capable
WIN
Linux/MAC


RoHS
Compliant
Airlink modem, BGS2T modem, BGS5T modem, FX30 modem, Gemalto modem, multitech, Sierra Wireless, “Upgrade Airlink modem”,”Upgrade BGS2T modem”,”Upgrade BGS5T modem”,”Upgrade FX30 modem”,”Upgrade Gemalto modem”,”Upgrade multitech modem”,”Upgrade Sierra Wireless modem”,”Upgrading 2G modem to”,”Upgrading 3G modem to”,upgrade 2G, upgrade 3G modem, wireless serial connection,”RS232 modem”, USB modem, CAT4, GNSS, GPS, Galileo, Glonass, Beidou, QZSS
Mode of operation 7V 12V 42V
Low power mode enabled registered on network in idle state no GNSS 17.2 mA 12.4 mA 5.1 uA
Low power mode enabled registered on network with socket connected in idle state no GNSS 18.42 mA 12.7 mA 5.6 uA
Low power mode enabled registered on network in idle state with GNSS in 3D fix 24.5 mA 15.3 mA 9.1 mA
Low power mode enabled registered on network with socket connected in idle state with GNSS in 3D fix 24.9 mA 16.6 mA 9.8 mA
Normal power mode with registered IP address in idle state no GNSS 26.5 mA 13.1 mA 5.79 mA
Normal power mode with IP socket connected and transmitting data no GNSS 130.1 mA 85.1 mA 46.4 mA
Normal power mode with active data call in progress no GNSS 210.5 mA 133.2 mA 71.4 mA

Designed to operate permanently in a low power state, the Siretta Industrial Modem consumes less power than other modems available. The modem will use less power in its standard operating state for sending and receiving data which can reduce the overall power consumption in some applications by up to 75%.

blank

GSM Network Coverage
B3 (1800MHz)
B8 (900MHz)

UMTS Network Coverage
B1 (2100MHz)
B3 (1800MHz)
B8 (900MHz)

LTE Cat 4 Network Coverage
B1 (2100MHz)
B3 (1800MHz)
B7 (2600MHz)
B8 (900MHz)
B20 (800MHz)
B28A (700MHz)

GNSS Network Coverage
GPS
Glonass
Beidou
Galileo

Mechanical Specifications
Dimensions: 93mm x 67mm x 28mm
Weight: 90 grams
Operating temperature range: -40 to +85°C
Relative humidity: <95% (non-condensing)

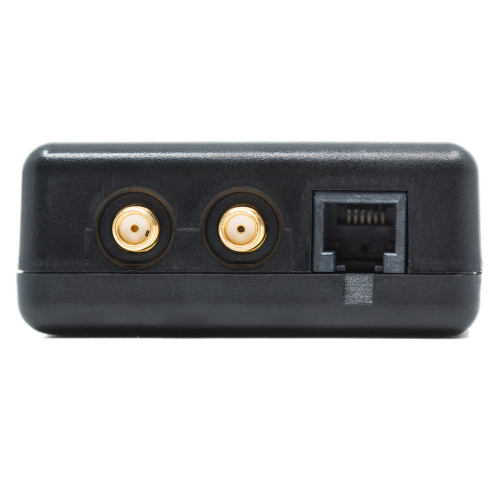

Physical Interfaces
1 x RS232 serial port interface (9-wire)
1 x USB 2.0 FS
1 x RJ12 power connection (5 – 42V)
1 x SMA female cellular antenna connector
1 x SMA female GNSS antenna connector
1 x standard mini SIM (2FF push-push)
3 x GPI: Inputs (0-42V)
2 x GPO: Outputs (0-42V @ 1A)
1 x ADC (0-42V)
1 x RS232 secondary serial port (3-wire)
1 x PSU Output @ Vcc
3 x external LED status indicators (Red, Green, Blue)

Power and Consumption
Power: 5V to 42V
Idle: 12.4mA @ 12v
Idle On Network: 12.7mA @ 12v
Idle On Network with 3D Fix: 16.6mA @ 12v

Certification
CE
RoHS

Datasheets

ZETA Modem Starter Kit Datasheet
ZETA-GEP-LTE4 (EU) Datasheet

Quick Start Guides

ZETA-xxP Quick Start Guide

Hardware Manuals

ZETA-xxP Series Hardware User Manual

Software Manuals

Advanced Connectivity with AT Commands
Startup Modem with AT Commands
SirettaSPARK User Manual
ZETA-xxP-LTE1 / ZETA-xxP-LTE4 AT Command Reference Manual

Software Downloads

Register to download the SirettaSPARK Tool
RS232 USB to Serial Device Drivers

Accessories

ZETA DIN Rail Datasheet

Additional Documents

Modem Starter Kit Fact Sheet
Modem Fact Sheet
Siretta Device Safety and Product Care
ZETA-xxP Brochure

Ordering Information

Siretta Part Number: 61019
Description: ZETA-GEP-LTE4 (EU) with RS232, USB serial, GPIO and GNSS

Request For Quote

Siretta Part Number: 61057
Description: ZETA-GEP-LTE4 (EU) with RS232, USB serial, GPIO and GNSS with accessory kit (Adaptor, Cables and Antenna)
