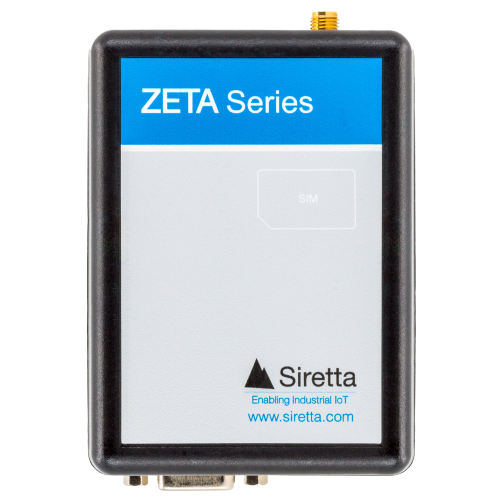

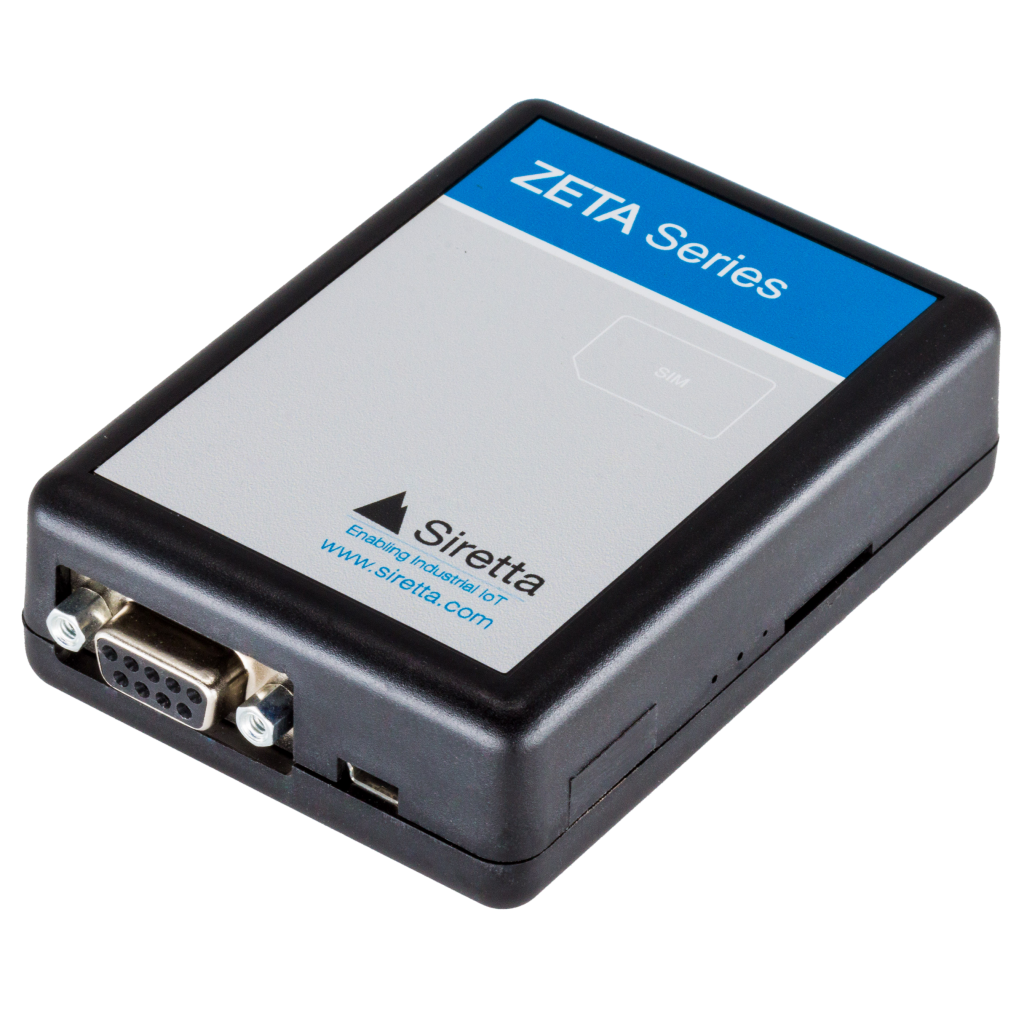

Ultra Low Power Global LTE Cat NBIoT ModemZETA-NLP-LTEM (GL) with RS232 and USB serial

The ZETA-NLP-LTEM (GL) is a cutting edge, extremely low power industrial modem. It will connect equipment to the new global LTE Cat M1 and NB1 networks as they become available also providing connectivity to the existing global 2G / GSM cellular network. The modem is able to operate in an extremely low power state which makes it ideal for use in industrial IoT applications today and for long term future developments.

The unique feature of the ZETA-NLP-LTEM (GL) allows it to run in an ultra low power state due to its intelligent power saving design. Additionally the range offers interface options including legacy RS232 for connection to existing equipment and a high speed USB interface.

The powerful C development environment reduces redundancy and lowers system component costs, allowing developers to maximise the power of their application directly on the device and eliminating the requirement for an external microcontroller. As a result the ZETA-NLP-LTEM (GL) lends itself to rapid proof-of-concept developments with minimal investment, providing fast time to market and maximum scalability.

  • Access Control Systems
  • Car Parking Payment
  • Environmental Monitoring
  • Vending Machines
  • Agriculture
  • Tank Monitoring
  • Alarm Panels
  • Industrial Sensors
  • Dialup Cellular Connectivity
  • Automatic Meter Reading
  • Utilities

2G
GSM
5~42V
Industrial
AT
Commands
CODE
Embedded
CSD
Dialup
FOTA
Updates
GPRS
Enabled
IP
Services
LTE
Cat M1
LTE
NB1
PSM
Low Power
RS232
Serial
SIM
Toolkit
SMS
Enabled
TEMP
-40 to +85 C
ULTRA
Low Power
USB
Serial
WIN
Linux/MAC
WW
Global
eDRX
Low Power


RoHS
Compliant
Airlink modem, BGS2T modem, BGS5T modem, FX30 modem, Gemalto modem, multitech, Sierra Wireless, “Upgrade Airlink modem”,”Upgrade BGS2T modem”,”Upgrade BGS5T modem”,”Upgrade FX30 modem”,”Upgrade Gemalto modem”,”Upgrade multitech modem”,”Upgrade Sierra Wireless modem”,”Upgrading 2G modem to”,”Upgrading 3G modem to”,upgrade 2G, upgrade 3G modem, wireless serial connection,”RS232 modem,”USB modem
Mode of operation 7V 12V 42V
Ultra low power mode enabled registered on network in idle state 1.3 mA

715 uA

485 uA
Ultra low power mode enabled registered on network with socket connected in idle state 1.42 mA

780 uA

495 uA
Normal power mode with registered IP address in idle state 15.9 mA 9.5 mA 5.56 mA
Normal power mode with IP socket connected and transmitting data 126.7 mA 81.9 mA 42.4 mA
Normal power mode with active data call in progress 205.5 mA 128.2 mA 67.4 mA

Using the low power function on the Siretta Industrial Modem allows the device to consume very little power in its idle state. The modem will remain in the idle state for the majority of time and when there is data to send, the modem will enter normal power state for the duration of the transmission. This can reduce the overall power consumption in some applications by up to 97%.

blank

GSM Network Coverage
B2 (1900MHz)
B3 (1800MHz)
B5 (850MHz)
B8 (900MHz)

LTE Cat M / LTE Cat NB IoT Network Coverage
B1 (2100MHz)
B2 (1900MHz)
B3 (1800MHz)
B4 (AWS 1700MHz)
B5 (850MHz)
B8 (900MHz)
B12 (700MHz)
B13 (700MHz)
B18 (800MHz)
B19 (800MHz)
B20 (800MHz)
B26 (850MHz)
B28 (700MHz)

Mechanical Specifications
Dimensions: 93mm x 67mm x 28mm
Weight: 90 grams
Operating temperature range: -40 to +85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces
1 x RS232 serial port interface (9-wire)
1 x USB 2.0 FS
1 x RJ12 power connection (5 – 42V)
1 x SMA female cellular antenna connector
1 x standard mini SIM (2FF push-push)
3 x external LED status indicators (Red, Green, Blue)

Power and Consumption
Power: 5V to 42V
Low Power Idle: 715uA @ 12v
Low Power Idle On Network: 780uA @ 12v
Full Power Idle On Network: 9.5mA @ 12v

Certification
CE
RoHS

Datasheets

ZETA Modem Starter Kit Datasheet
ZETA-NLP-LTEM (GL) Datasheet

Quick Start Guides

ZETA-xxP Quick Start Guide

Hardware Manuals

ZETA-xxP Series Hardware User Manual

Software Manuals

Advanced Connectivity with AT Commands
Startup Modem with AT Commands
SirettaSPARK User Manual
ZETA-xxP-LTEM AT Command Reference Manual

Software Downloads

Register to download the SirettaSPARK Tool
RS232 USB to Serial Device Drivers

Accessories

ZETA DIN Rail Datasheet

Additional Documents

Modem Starter Kit Fact Sheet
Modem Fact Sheet
Siretta Device Safety and Product Care
ZETA-xxP Brochure

Ordering Information

Siretta Part Number: 60790
Description: ZETA-NLP-LTEM (GL) Low Power Modem with RS232 and USB serial

Request For Quote

Siretta Part Number: 60796
Description: ZETA-NLP-LTEM (GL) Low Power Modem with RS232 and USB serial, with accessory kit (Adaptor, Cables and Antenna)

Request For Quote
