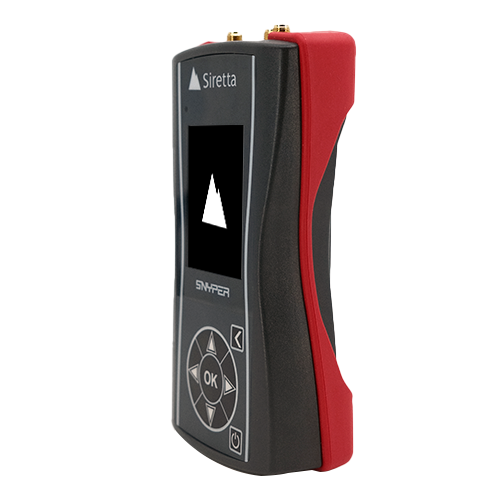

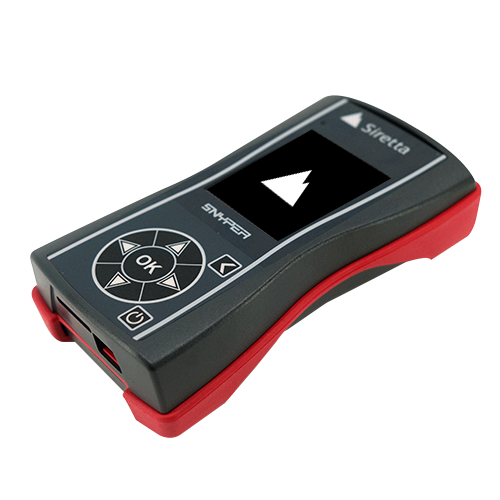

The SNYPER-IoTS Graphyte is a handheld, multi-language network signal analyser and logger for Non-Terrestrial Networks (satellite). It listens (not transmit) for NTN broadcast channels, identifies the provider and band, measures signal strength/quality, and geotags every reading. Use it to prove on-site NTN coverage, pick the right provider and antenna.
For more information on NTN Technology please click here:
The SNYPER-IoTS can be left to conduct sequential surveys in a fixed location and automatically save them. Different types of survey can be performed: a “FULL” survey (NTN, LTE-M,NB-IoT and 2G), or any combination of NTN, LTE-M, NB-IoT and GSM. Each survey logs network signal strength, cell parameters, and location via the internal GNSS receiver. Surveys can be chosen to be a single cycle or multiple cycles. Multicycle surveys can identify unreliable cells or satellites & intermittent cellular service which is not possible with single surveys.

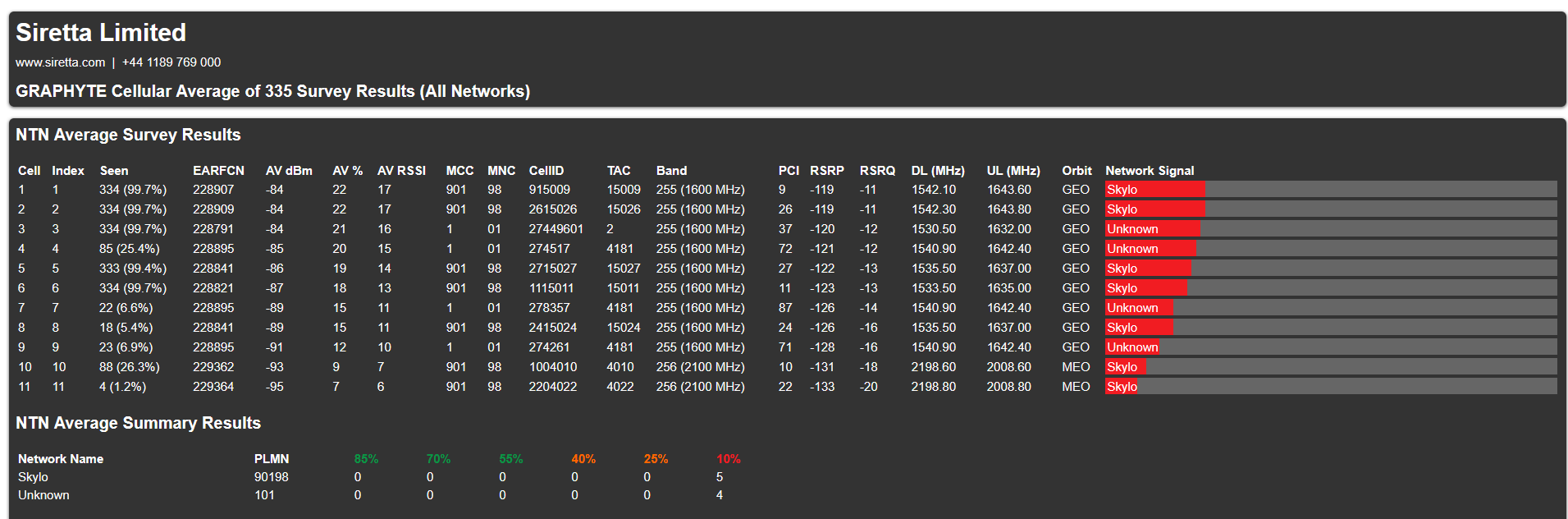

The SNYPER-IoTS Graphyte (GL) can typically save 10,000 single-cycle surveys onto the internal solid-state memory. Results may be downloaded using a USB-C connection to a PC in CSV or HTML formats. This allows users to analyse the collected cell data in a spreadsheet or a web browser to make informed decisions.
The powerful SNYPER-IoTS Graphyte (GL) summary page displays the relative signal levels and operators of all the cells discovered, allowing the user to determine the most suitable mobile network operator available.

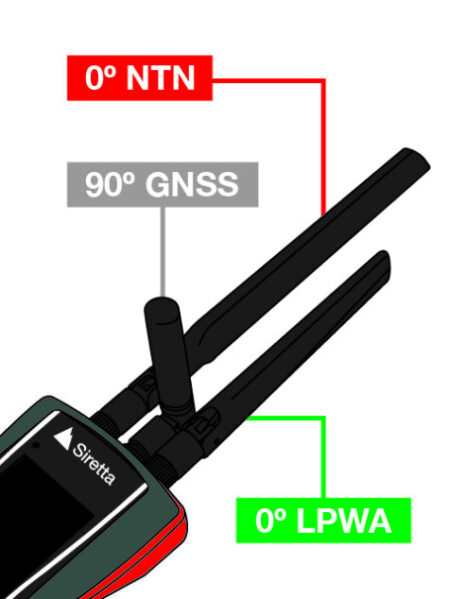

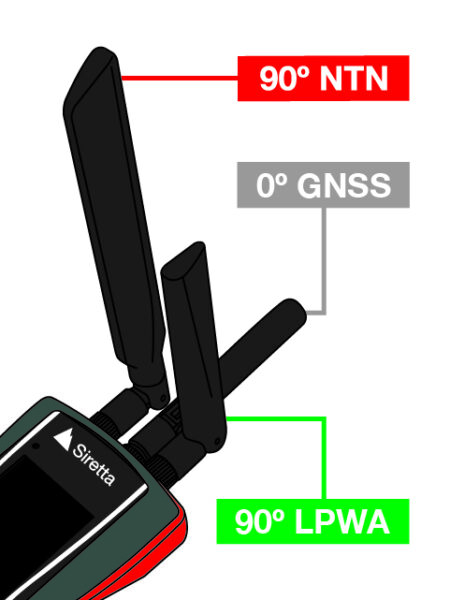

The SNYPER-IoTS Graphyte (GL) can also be used to help establish optimum antenna placement and perform local site surveys.
The SirettaSPARK Tool is an automated device management application developed by Siretta to simplify the process of keeping your devices up to date with the latest software and firmware. Software updates provide new features, performance improvements and bug fixes to applications developed by Siretta and enhance your products overall capabilities. Firmware updates provide improvements to the devices core operation, add performance improvements and enhance device network interaction.
Both of these elements are important to keep your device running in optimal condition and the SirettaSPARK tool helps to make this process simple and easy.
The SirettaSPARK Tool automates software and firmware updates for all of your Siretta devices and offers the following benefits:
In addition the SirettaSPARK Tool incorporates advanced features which offer the following:
The SirettaSPARK integrated tools provide automated device updates and allow the Siretta Engineering team to understand and debug any underlying issues with your application integration remotely.
NOTE: If SirettaSPARK does not find your connected equipment you may be running an outdated version of software or you may have a problem with your devices setup.
Please contact Siretta support for further assistance.
Siretta Part Number: 62530

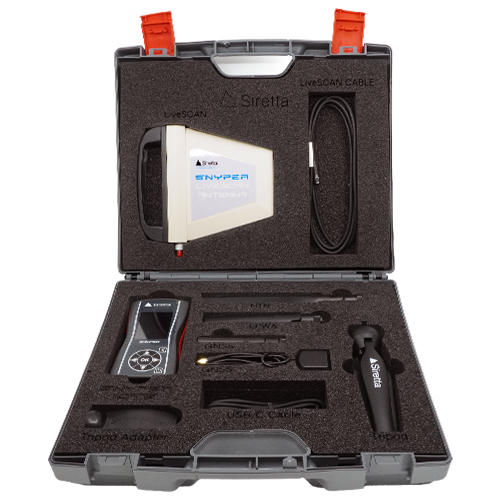

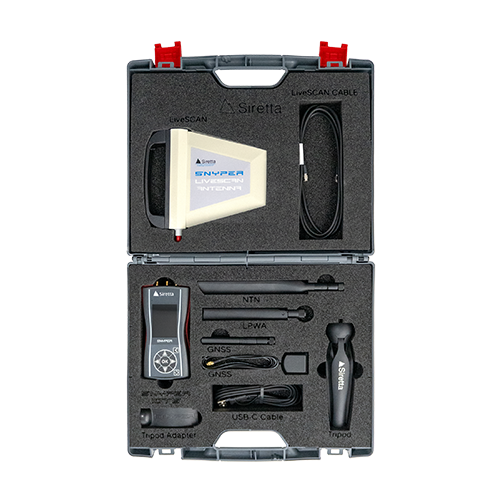

Description: SNYPER-IoTs-Graphyte (GL) Network Signal Analyser & Data Logger with Accessories and Hard Carry Case
