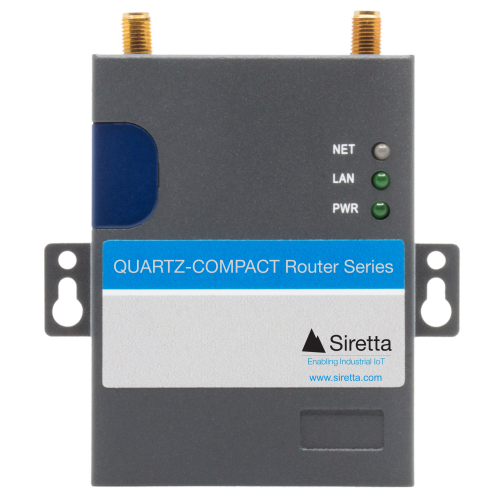

Single Port Compact LTE Router (EU) with GPSQUARTZ-COMPACT-LTE (EU) Single LAN Ultra Small Footprint Industrial Router

The QUARTZ-COMPACT-LTE router is an ultra compact, high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-COMPACT-LTE fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fallback to 3G communication should 4G/LTE be unavailable. It is well suited for IoT/mobile broadband applications, offering reliable, secure wireless connectivity.

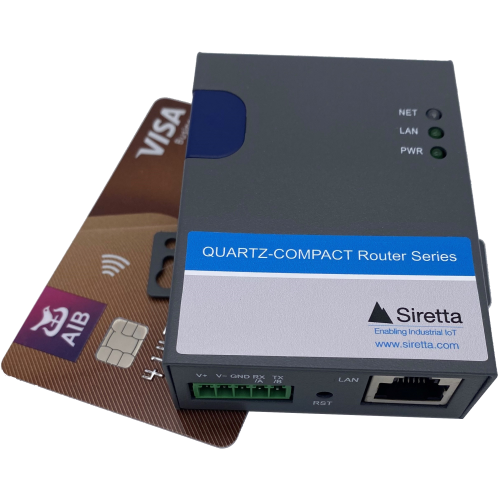

The QUARTZ-COMPACT-LTE router has a robust design, in an ultra compact metal enclosure, making it ideal for deployment in industrial embedded applications where space is at a premium.

Cellular coverage is designed to match European frequencies. The QUARTZ-COMPACT-LTE software means VPN security is supported, allowing the router to be used in commercial as well as industrial applications.

The QUARTZ-COMPACT-LTE Compact router meets the needs for management of remote communication and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring and many other IoT/mobile broadband applications.

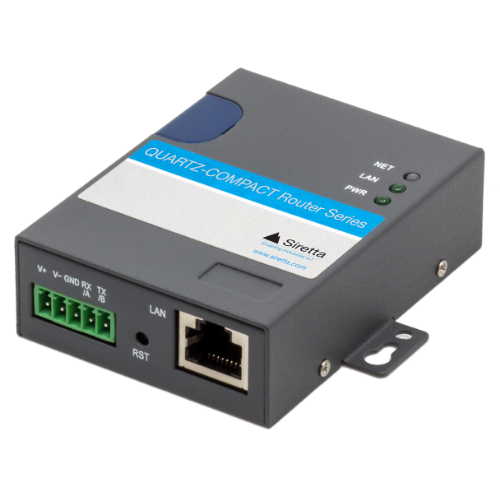

The QUARTZ-COMPACT-LTE router comes equipped with a single SIM slot, single 10/100 ethernet LAN port and a serial port. Setting up the QUARTZ-COMPACT router is quick and easy – simply insert your 4G SIM card and connect the antennas. Power up the router and connect to the internet by entering the correct APN settings in the web interface. The router will then connect and provide high speed 4G mobile broadband.

  • European 4G / LTE bands
  • High speed data via LTE network
  • Strong resistance to electromagnetic interference
  • Built-in watch dog, multi-link detection
  • Ultra compact industrial design
  • Excellent temperature endurance
  • VPN: OpenVPN, PPTP, L2TP, GRE, IPSec
  • 1 x LAN, 1 x Serial port

2G
GSM
3G
UMTS
4G
LTE
CLI
Telnet
EMEA
Europe
GPRS
Enabled
GPS
Position
LAN
Single Port
LIVE
Stats
NAT
Mapping
PSU
6V to 32V
PTP
Connect
SERIAL
Port
SNMP
Protocol
SSH
Manage
Syslog
Service
TEMP
-30 to +70 C
TRACE
Route
ULTRA
Compact
UPNP
Protocol
VPN
Tunnel
WEB
Portal
WIN
Linux/MAC


RoHS
Compliant
3g router, 4g openvpn router, 4g router, 4g router with dual sim slot, 4g wifi router, dual sim router, industrial router, lte wireless router, machine to machine, umts router,open vpn,vpn router,mica-compact-lte,mica-compact

GSM Network Coverage
B3 (1800MHz)
B8 (900MHz)

UMTS Network Coverage
B1 (2100MHz)
B5 (850MHz)
B8 (900MHz)

LTE Network Coverage
B1 (2100MHz)
B3 (1800MHz)
B5 (850MHz)
B7 (2600MHz)
B8 (900MHz)
B20 (800MHz)
B38 (2600MHz)
B40 (2300MHz)
B41 (2500MHz)

Mechanical Specifications
Dimensions: 78.5mm x 68.2mm x 25 mm
Operating temperature range: -30 to 70°C
Storage temperature range: -40 to 85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces
1 × 10/100Mb LAN interface
1 × RS232 serial port

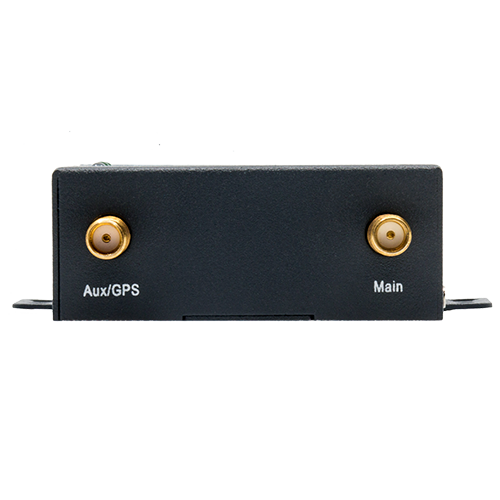

2 × SMA antenna interface
1 × Standard mini SIM interface (2FF)
1 × Standard DC power interface

Power and Consumption
Idle: 165mA @ +12V DC
Online without WiFi: 195mA @ +12V DC
Online with Wifi 235mA @ +12V DC
Power Supply: 5V – 32V DC

Certification
UKCA
CE
RoHS

Features
Remote Access over HTTP/HTTPS
HTTPS Support
ICMP Ping Support
Integrated TCP/IP Services
NAT Support
DMZ Support
Port Redirection Support
Custom NTP Server Support
Internal logging and Remote Syslog Support
Current Routing Table
Static Routes

VPN Tunnel Support
OpenVPN Client
IPSec Tunnel
GRE Tunnel
L2TP Tunnel
PPTP Tunnel

Datasheets

QUARTZ-COMPACT-LTE Datasheet

Quick Start Guides

QUARTZ Family Quick Start Guide

Hardware Manuals

QUARTZ-COMPACT Hardware Manual

Software Manuals

QUARTZ-COMPACT Software Manual

Additional Documents

Router Fact Sheet
Siretta Device Safety and Product Care

Ordering Information



Siretta Part Number: 60746
Description: QUARTZ-COMPACT-G11-LTE Compact (EU) single port router with GPS

Request For Quote



Siretta Part Number: 60747

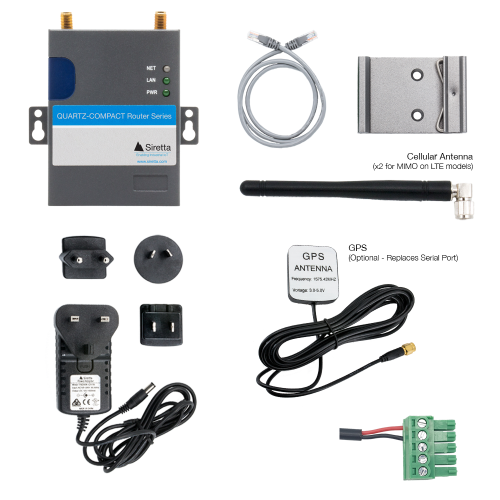

Description: QUARTZ-COMPACT-G11-LTE Compact (EU) single port router with GPS and accessory kit (Connecting cables and Antennas)

Request For Quote
