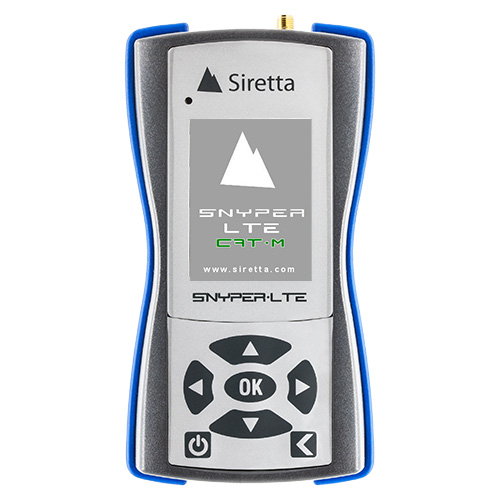

The SNYPER-LTEM (GL) is a high performance, multi-language network signal analyser dedicated to surveying the LTE Cat M, LTE Cat NB IoT & 2G / GSM Global networks.

It incorporates a number of important features and can perform three types of survey:

  • LTE Cat M (LTE Cat M network with signal strength in the area)
  • LTE Cat NB IoT (LTE Cat NB IoT network without signal strength in the area *)
  • 2G / GSM (2G / GSM networks with signal strength in the area)

The LTE Cat M and LTE Cat NB IoT surveys will record the base-station with the strongest signal for each operator in the local area. The 2G / GSM survey will provide multiple results from each network operator, in one single survey.

The powerful SNYPER summary page displays percentage thresholds to determine the most suitable mobile network operator available and the performance of a “preferred” MNO can be evaluated against the other networks.

The SNYPER can also be used to help establish optimum antenna placement and perform local site surveys.

* NOTE:
The SNYPER results for the LTE Cat NB IoT network do not include the received signal strength. This is a limitation based on the internal chipset and network infrastructure interaction providing a suitable metric to measure received signal strength.

  • Enhanced cellular surveying of new and existing installations on LTE Cat M, LTE Cat NB IoT and 2G / GSM networks
  • Establish most suitable operator for application
  • Evaluate your “preferred” MNO’s performance
  • Determine optimum antenna placement
  • Results are reported in CSV & graphical HTML format

2Ah
Battery
2G
GSM
CSV
Reports
GEAR
Accessories
HARD
Carry Case
HTML
Reports
LTE
Cat M1
LTE
NB1
MAP
Portal
MNO
Summary
MULTI
Language
RTC
Timestamp
SAVE
1 Survey
TEMP
-10 to +50 C
TFT
Display
USB
Power
USB
Serial
WIN
Linux/MAC
WW
Global
3g signal strength tester,4g network analyser,4g network base station detection,4g network signal logging,lte network analyser,lte network signal logging,lte signal strength tester,network signal logging,

SNYPER-LTEM (GL) V2

13 Supported Bands LTE Cat M / LTE Cat NB IoT
B1 (2100 MHz)
B2 (1900 MHz)
B3 (1800 MHz)
B4 (AWS 1700 MHz)
B5 (850 MHz)
B8 (900 MHz)
B12 (700 MHz)
B13 (700 MHz)
B18 (800 MHz)
B19 (800 MHz)
B20 (800 MHz)
B26 (850 MHz)
B28 (700 MHz)

4 Supported Bands 2G / GSM / GPRS
B2 (1900 MHz)
B3 (1800 MHz)
B5 (850 MHz)
B8 (900 MHz)

Mechanical Specifications
Operating temperature range: -10 to +50°C
Storage temperature range: -20 to +50°C
Relative humidity: <85% (non-condensing)

Physical Interfaces
1 x USB 2.0 FS (12 MBits/s)
1 x SMA female cellular antenna connector
1 x Red LED charging indicator
1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multifunction keypad

Power and Consumption
Power: 5V @ 500mA from USB supply
Battery: Lithium Ion 3.7V, 2000mAh
Life: 48 hours based on 20 surveys/day
Warm up time: 2s

Certification
CE
FCC
RoHS

Datasheet

SNYPER-LTEM (GL) Datasheet

Manuals

SNYPER Firmware Update Guide
SNYPER Comparison Chart
SNYPER-LTEM – Quick Start Guide
SNYPER-LTEM (GL) – User Manual
SNYPER Programming Guide (Rev 1.1)

Ordering Information

Siretta Part Number: 61161

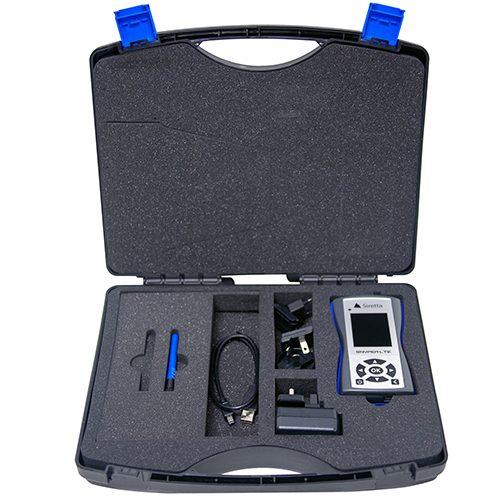

Description: SNYPER-LTEM (GL) Network Signal Analyser with Accessories and Hard Carry Case
