SIM Free - Multiple Survey LTE Analyser (AP)SNYPER-LTE+ Spectrum (AP) High performance 4G / LTE network signal analyser

The SNYPER-LTE+ Spectrum (AP) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE, 3G/UMTS Asia Pacific networks. The SNYPER-LTE+ Spectrum (AP) does not require a SIM in order to provide network survey results.

The SNYPER-LTE+ Spectrum (AP) can save multiple surveys locally in memory and incorporates Siretta’s leading liveSCAN feature which allows you to perform real time graphical site surveys on the full colour SNYPER display.

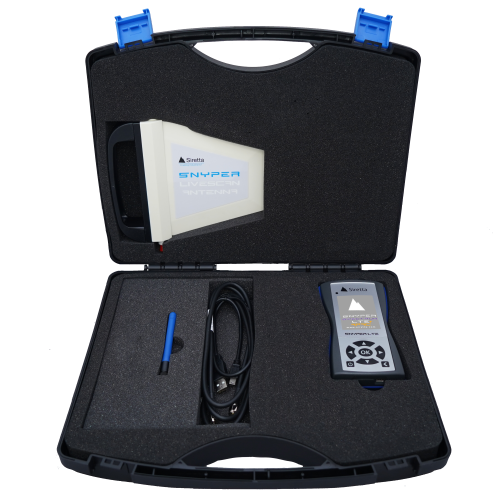

The SNYPER-LTE+ Spectrum is supplied with an omni-directional antenna to detect “hotspots” in buildings and perform site surveys and also includes a directional antenna kit to perform point-to-point antenna alignment. The  SNYPER can survey the local network and display results from all discovered cellular cell towers observed in the area. Results are ordered from highest to  lowest “visible” base-station signal and the key network parameters of each are displayed.

Please note that USB Car and Mains Adapters are NOT included with this variant.

  • Enhanced cellular surveying of new and existing installations on 4G / LTE, 3G / UMTS  networks
  • Establish most suitable operator for application
  • Evaluate your “preferred” MNO’s performance
  • Determines “hotspots” & assists with antenna alignment, through Siretta’s liveSCAN feature
  • Results are reported in CSV & graphical HTML format
  • SIM free operation on all bands and technologies
  • Complete network breakdown and summary results

2Ah
Battery
3G
UMTS
4G
LTE
AP
Coverage
CSV
Reports
Cloud
SURVEY
GEAR
Accessories
HARD
Carry Case
HTML
Reports
LIVE
SCAN Logs
MAP
Portal
MNO
Summary
MULTI
Language
P2P
Alignment
SAVE
50 surveys
SCAN
Realtime
SIM
Free
TEMP
-10 to +50 C
TFT
Display
USB
Power
USB
Serial
WIN
Linux/MAC


RoHS
Compliant
RCM
Compliant
VCCI
Compliant
3g signal strength tester,4g network analyser,4g network base station detection,4g network signal logging,lte network analyser,lte network signal logging,lte signal strength tester,network signal logging

SNYPER-LTE+ Spectrum (AP) V2

9 Supported Bands 4G / LTE
B1 (2100 MHz)
B3 (1800 MHz)
B5 (850 MHz)
B8 (900 MHz)
B9* (1800 MHz)
B18 (850 MHz)
B19 (850 MHz)
B26 (850 MHz)
B28 (700 MHz)

*B9 was intended for use in Japan, but not deployed

5 Supported Bands 3G / UMTS / HSPA+
B1 (2100 MHz)
B5 (850 MHz)
B6 (800 MHz)
B8 (900 MHz)
B19 (850 MHz)

Mechanical Specifications
Operating temperature range: -10 to +50°C
Storage temperature range: -20 to +50°C
Relative humidity: <85% (non-condensing)

Physical Interfaces

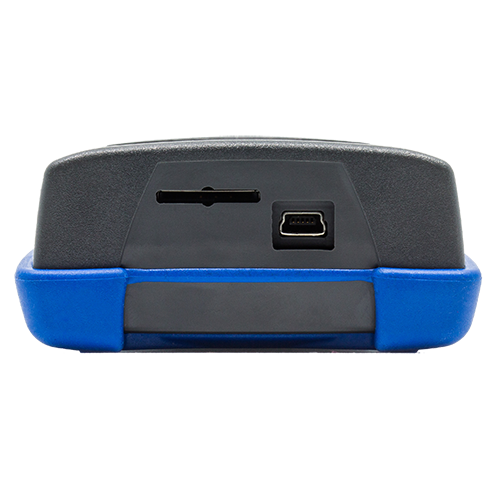

1 x USB 2.0 FS (12 MBits/s)

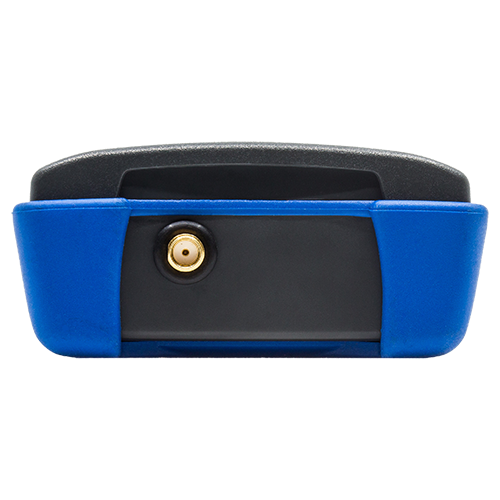

1 x SMA female cellular antenna connector
1 x Red LED charging indicator

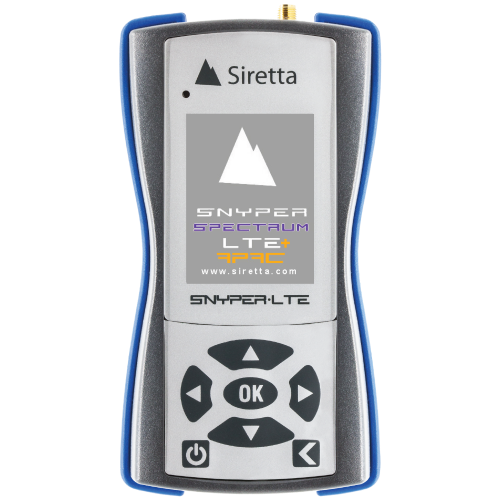

1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multifunction keypad

Power and Consumption
Power: 5V @ 500mA from USB supply*
Battery: Lithium Ion 3.7V, 2000mAh
Life: 48 hours based on 20 surveys/day
Warm up time: 2s

*12V Car USB Adapter and Mains Adapter are not included

Certification
VCCI (TBC)
RCM (TBC)
RoHS

Datasheet

SNYPER LTE+ Spectrum (AP) Datasheet

Manuals

Software Manuals

SNYPER Programming Guide (Rev 1.1)
CloudSURVEY User Manual

Hardware

SNYPER-LTE+ Family User Manual

User Manuals

SNYPER Programming Guide (Rev 1.1)
SNYPER-LTE+ Family Quick Start Guide
CloudSURVEY User Manual
SNYPER-LTE+ Family User Manual

Datasheets

SNYPER-LTE+ Spectrum (EU) Datasheet

Quick Start Guides

SNYPER-LTE+ Family Quick Start Guide

Marketing Documents

SNYPER V2 – Comparison Chart
7 Great Things about the SNYPER-LTE+
SNYPER-LTE+ & Spectrum Flyer
SNYPER-LTE Family Product Comparison

Antenna Tests

Datasheets

ALPHA 4a IP Test Certificate
Alpha 6 IP Test Certificate
TANGO 11A/23/44 IP Test Certificate
RF Antenna Test Data Mike 1C
TANGO 41 IP Test Certificate
TANGO 42 IP Test Certificate
TANGO 38 IP67 Test Certificate
TANGO 39 IP Test Certificate
TANGO 27 IP Test Certificate
TANGO 24 IP Test Certificate
TANGO 15 IP Test Certificate
MIKE 11 IP Test Certificate
MIKE 3a IP Test Certificate
ALPHA 19 IP Test Certificate
ALPHA 8 IP Test Certificate
ALPHA 6 IP Test Certificate
ALPHA 4a IP Test Certificate
TANGO 43 IP Test Certificate
TANGO 24 IP Test Certificate
TANGO 17 IP Test Certificate
TANGO 16 IP Test Certificate
TANGO 11A IP Test Certificate
TANGO 420 IP Test Certificate
TANGO 40 IP Test Certificate
TANGO 38 IP Test Certificate
TANGO 37 IP Test Certificate
TANGO 26 IP Test Certificate
TANGO 25 IP Test Certificate
TANGO 16 IP Test Certificate
TANGO 14 IP Test Certificate
RF Antenna Test Data Delta 22A
RF Antenna Test Data Alpha 17
RF Antenna Test Data Alpha 41
RF Antenna Test Data Alpha 8
RF Antenna Test Data Alpha 1A
RF Antenna Test Data Alpha 11
RF Antenna Test Data Delta 2C
RF Antenna Test Data Alpha 10
RF Antenna Test Data Delta 6C
RF Antenna Test Data Delta 6A
Tango 22A Handheld Antenna Test
TANGO 22 Snyper Graphyte Test
TANGO 27 Snyper Graphyte Test
TANGO 44 Snyper Graphyte Test
TANGO 11A Snyper Graphyte Test
TANGO 37 Snyper Graphyte Test
TANGO 43 Snyper Graphyte Test
TANGO 19 Snyper Graphyte Test
OSCAR 18 Snyper Graphyte Test
OSCAR 17 Snyper Graphyte Test
Oscar 3A Snyper Graphyte Test
OSCAR 1A Snyper Graphyte Test
ECHO 30 Snyper Graphyte Test
ECHO 14 Snyper Graphyte Test
ECHO 2 Snyper Graphyte Test
ECHO 1A Snyper Graphyte Test
DELTA 40 Snyper Graphyte Test
DELTA 26 Snyper Graphyte Test
DELTA 7B Snyper Graphyte Test
DELTA 6A Snyper Graphyte Test
DELTA 2D Snyper Graphyte Test
DELTA 2C Snyper Graphyte Test
DELTA 2A Snyper Graphyte Test
DELTA 1D Snyper Graphyte Test
DELTA 1C Snyper Graphyte Test
DELTA 1A Snyper Graphyte Test
Alpha 41 Snyper Graphyte Test
Alpha 40 Snyper Graphyte Test
Alpha 18 Snyper Graphyte Test
Alpha 15 Snyper Graphyte Test
Alpha 14 Snyper Graphyte Test
Alpha 11 Snyper Graphyte Test
Alpha 7 Snyper Graphyte Test
Alpha 6 Snyper Graphyte Test
Alpha 3A Snyper Graphyte Test
Alpha 1A Snyper Graphyte Test
Mike 2A Snyper Graphyte Test
Mike 1A Snyper Graphyte Test
ECHO 40 – Snyper Graphyte Test

Marketing Documents

Mike 15 Snyper Graphyte Test
Mike 16 Snyper Graphyte Test

Ordering Information

Siretta Part Number: 61933
Description: SNYPER-LTE+ Spectrum (AP) Network Signal Analyser with Accessories and Hard Carry Case
