Multiple Survey UMTS Analyser (GL)SNYPER-3G Spectrum UMTS network signal analyser with liveSCAN

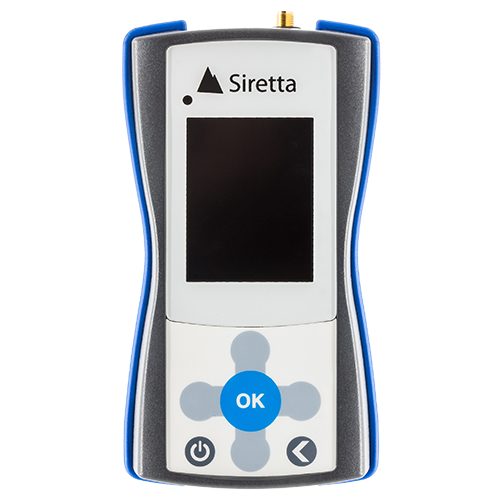

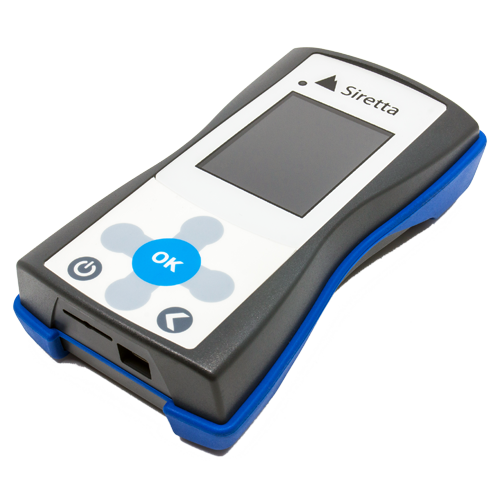

The SNYPER-3G Spectrum is a high performance network signal analyser dedicated to surveying the global 3G/UMTS & 2G/GSM cellular networks.

The unit does not require a SIM and incorporates a number of unique features. The Spectrum can save multiple surveys locally in memory and incorporates Siretta’s leading liveSCAN feature which allows you to perform real time graphical site surveys on the full colour SNYPER display.*

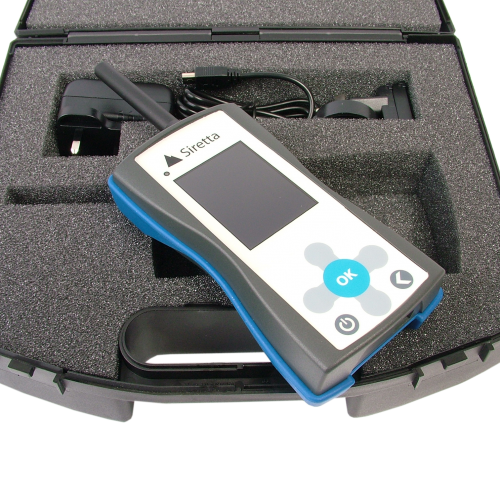

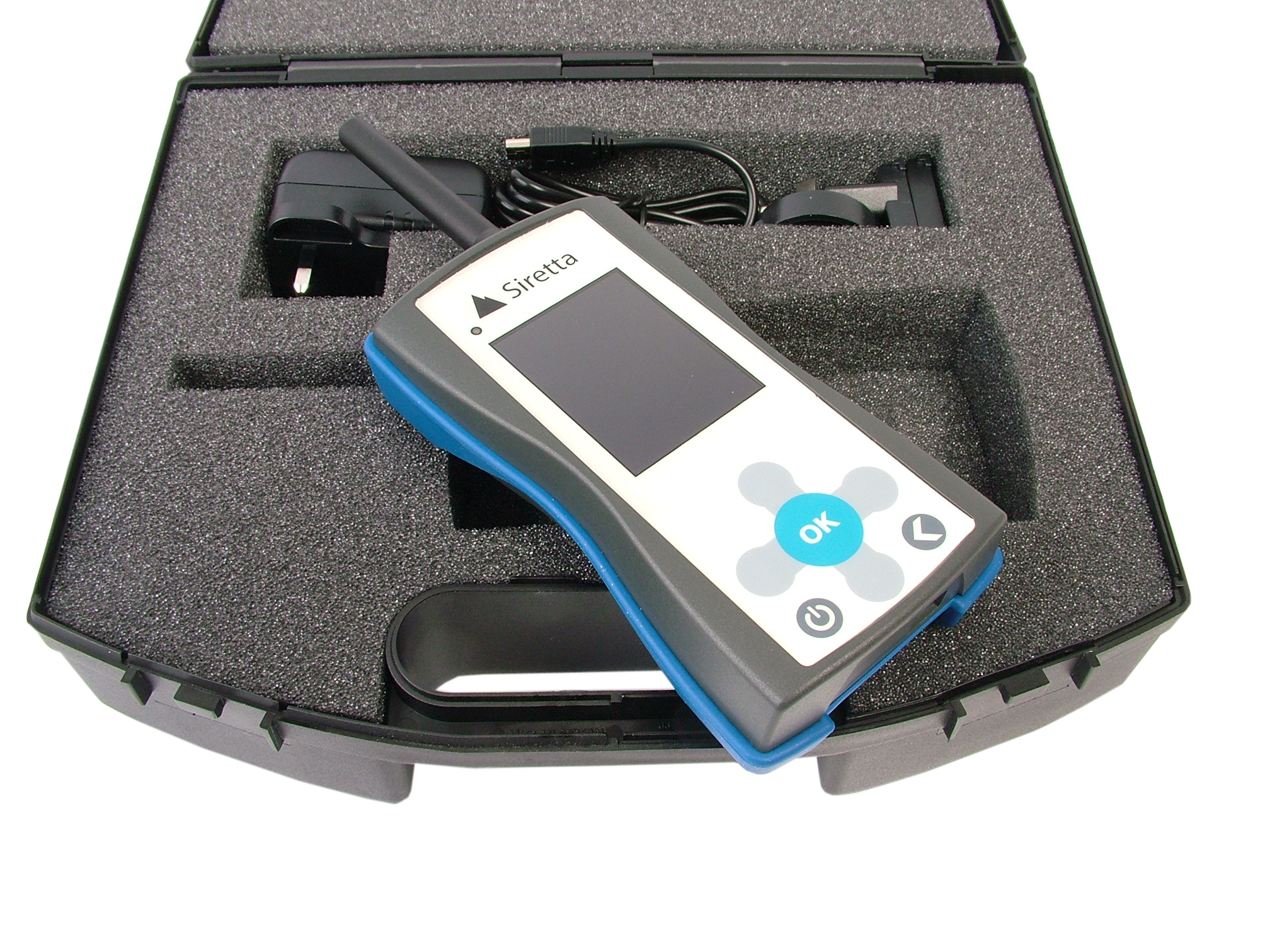

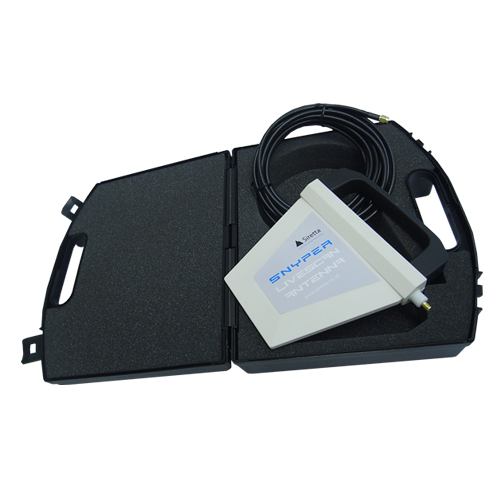

The SNYPER-3G Spectrum is supplied with an omni-directional antenna to detect “hotspots” in buildings and perform site surveys and also includes a directional antenna kit to perform point-to-point antenna alignment.

The SNYPER can survey the local network and display results from all discovered cellular cell towers observed in the area. Results are ordered from highest to lowest “visible” base-station signal and the key network parameters of each are displayed.

*liveSCAN requires an active SIM to operate correctly

  • Enhanced cellular surveying of new and existing installations on 3G and 2G networks
  • Establish most suitable operator for application
  • Perform liveSCAN on selected basestation result
  • Use to establish “hotspots” and assist with antenna alignment
  • Results are reported in CSV & graphical HTML format

2Ah
Battery
2G
GSM
3G
UMTS
CSV
Reports
GEAR
Accessories
HARD
Carry Case
HTML
Reports
MAP
Portal
MNO
Summary
P2P
Alignment
SAVE
50 surveys
SCAN
Realtime
SIM
Free
TEMP
-10 to +50 C
TFT
Display
USB
Power
USB
Serial
WIN
Linux/MAC
WW
Global


RoHS
Compliant
3g signal strength tester,network analyser

Datasheet

SNYPER-3G Spectrum Datasheet

Manuals

Software Manuals

SNYPER Programming Guide (Rev 1.1)

User Manuals

SNYPER Programming Guide (Rev 1.1)
SNYPER-3G Spectrum Quick Start Guide
SNYPER-3G Family User Manual

Quick Start Guides

SNYPER-3G Spectrum Quick Start Guide

Hardware Manuals

SNYPER-3G Family User Manual

Ordering Information

Siretta Part Number: 60186
Description: SNYPER-3G Spectrum (GL) Network Signal Analyser
