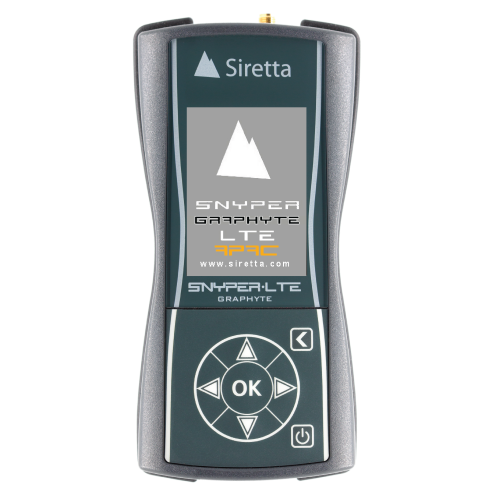

SIM Free - Continuous Survey LTE Logger (AP)SNYPER-LTE Graphyte (AP) High performance 4G / LTE signal analyser & cell logger

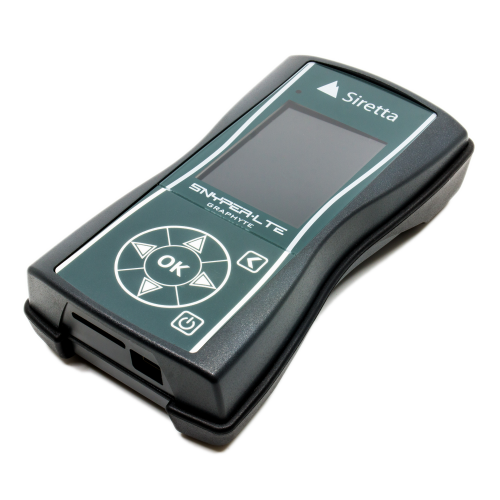

The SNYPER-LTE Graphyte (AP) is a high performance, multi-language network signal analyser and cellular signal logger, dedicated to surveying and logging the 4G/LTE, 3G/UMTS Asia Pacific networks.

The unit can be left to conduct sequential surveys in a fixed location and automatically saving them. Three types of survey can be performed: a “FULL” survey (4G, 3G combined), 4G/LTE only, 3G/UMTS only.

SNYPER-LTE Graphyte (AP) can save multiple surveys each with different logging options and all survey results can be downloaded to a PC and displayed in a HTML graphical format to clearly show the logged detail over the survey session. This can identify unreliable base-stations & intermittent cellular service which is not possible with spot surveys. The full breakdown for the HTML summary graphs are displayed in corresponding CSV files (Summary and full detail files).

The SNYPER-LTE Graphyte (AP) also incorporates Siretta’s leading liveSCAN feature, which allows you to select a base-station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording.

The SNYPER-LTE Graphyte (AP) is an invaluable tool for understanding local network performance over hours, days and weeks to assist in the selection of reliable mobile network operators before cellular installations.

  • Enhanced cellular surveying & sequential logging of new and existing installations on 4G, 3G networks
  • User selectable survey logging options to determine most suitable & reliable mobile operator
  • Evaluate “preferred” MNO’s performance over time
  • Determines “hotspots” & assist with antenna alignment, through Siretta’s liveSCAN feature
  • Results are reported in CSV & graphical HTML format
  • Save over 100 logged surveys with multiple liveSCAN logs

2Ah
Battery
3G
UMTS
4G
LTE
AP
Coverage
AUTO
SAVE Logs
CSV
Reports
Cloud
SURVEY
GEAR
Accessories

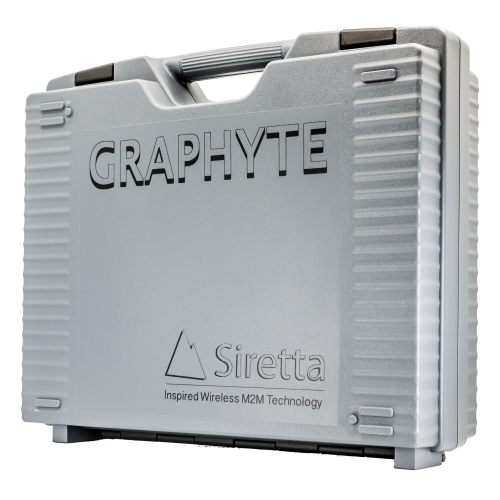

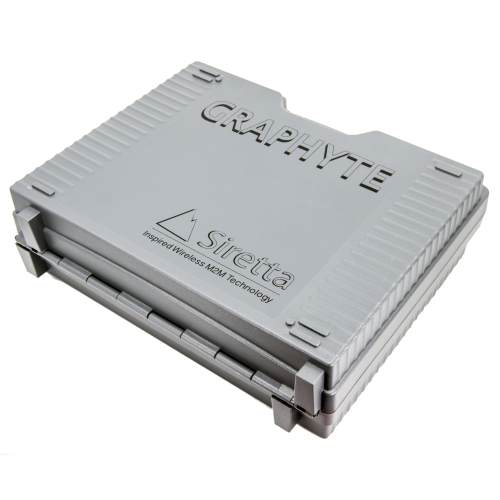

HARD
Carry Case
HTML
Reports
LIVE
SCAN Logs
LOG
Surveys
MAP
Portal
MNO
Summary
MULTI
Language
P2P
Alignment
RTC
Timestamp
SAVE
84 surveys
SCAN
Realtime
SIM
Free
TEMP
-10 to +50 C
TFT
Display
USB
Power
USB
Serial
WIN
Linux/MAC


RoHS
Compliant
RCM
Compliant
VCCI
Compliant
3g signal strength tester,4g network analyser,4g network base station detection,4g network signal logging,lte network analyser,lte network signal logging,lte signal strength tester,network signal logging, logger, 4g scanner

SNYPER-LTE Graphyte (AP) V2

9 Supported Bands 4G / LTE
B1 (2100 MHz)
B3 (1800 MHz)
B5 (850 MHz)
B8 (900 MHz)
B9* (1800 MHz)
B18 (850 MHz)
B19 (850 MHz)
B26 (850 MHz)
B28 (700 MHz)

*B9 was intended for use in Japan, but not deployed



5 Supported Bands 3G / UMTS / HSPA+
B1 (2100 MHz)
B5 (850 MHz)
B6 (800 MHz)
B8 (900 MHz)
B19 (850 MHz)



Mechanical Specifications
Operating temperature range: -10 to +50°C
Storage temperature range: -20 to +50°C
Relative humidity: <85% (non-condensing)

Physical Interfaces

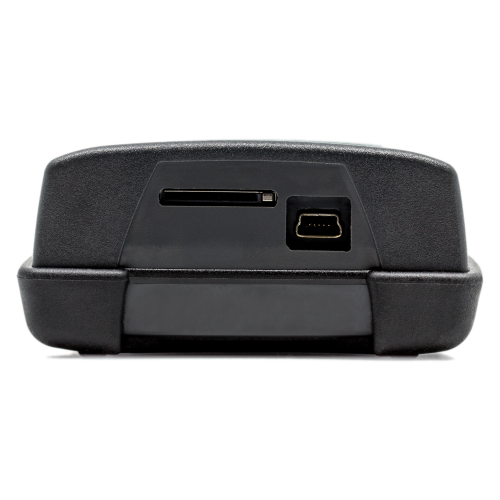

1 x USB 2.0 FS (12 MBits/s)

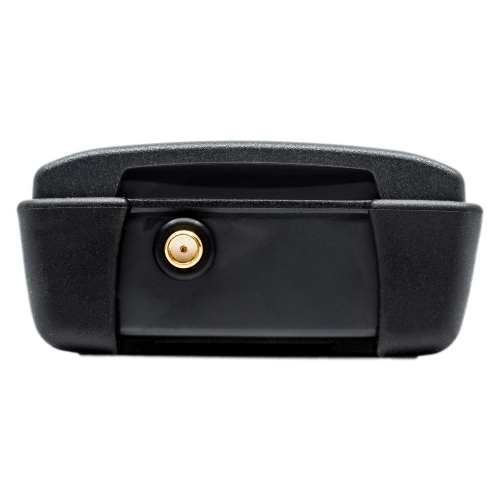

1 x SMA female cellular antenna connector
1 x Red LED charging indicator
1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multifunction keypad

Power and Consumption
Power: 5V @ 500mA from USB supply*
Battery: Lithium Ion 3.7V, 2000mAh
Life: 48 hours based on 20 surveys/day
Warm up time: 2s

*12V Car USB Adapter and Mains Adapter are not included

Certification
VCCI (TBC)
RCM (TBC)
RoHS

Datasheets

SNYPER-LTE Graphyte (AP) Datasheet
CloudSURVEY Datasheet

Quick Start Guides

SNYPER-LTE Graphyte Quick Start Guide

Hardware Manuals

SNYPER-LTE Graphyte User Manual

Software Manuals

SirettaSPARK User Manual
CloudSURVEY User Manual

Software Downloads

Register to download the SirettaSPARK Tool

Additional Documents

SNYPER V2 Fact Sheet
SNYPER – Feature Comparison
Siretta Device Safety and Product Care
SNYPER-LTE Graphyte Brochure
Show Me How Guide Rev 1.3
SNYPER-LTE Family Product Comparison

Ordering Information

Siretta Part Number: 61834

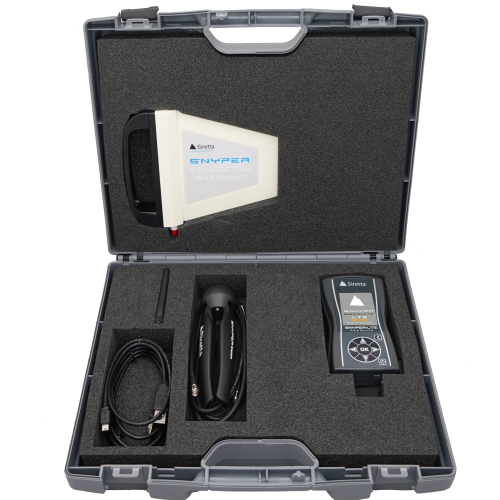

Description: SNYPER-LTE Graphyte (AP) Network Signal Analyser & Data Logger with Accessories and Hard Carry Case
