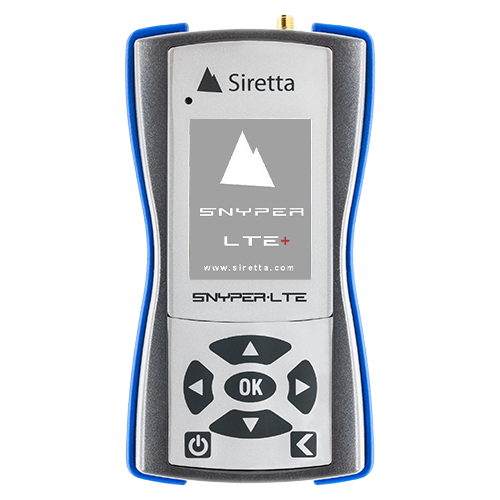

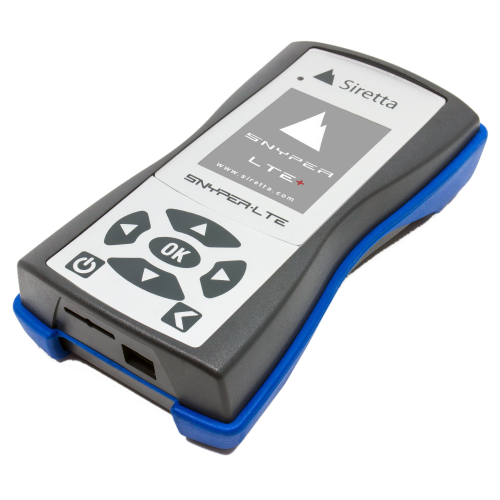

SIM Free - Single Survey LTE Analyser (USA)SNYPER-LTE+ (USA) High performance 4G / LTE network signal analyser

The SNYPER-LTE+ (USA) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE & 3G/UMTS North American networks. The SNYPER-LTE+ (USA) does not require a SIM in order  to provide network survey results.

It incorporates a number of important features and can perform three types of survey: 4G/LTE only, 3G/UMTS only and a combined 4G/LTE & 3G/UMTS survey. The combined 4G/LTE & 3G/UMTS survey will provide multiple results from each network operator, in one single survey.

The powerful SNYPER summary page displays percentage thresholds to determine the most suitable mobile network operator available and the performance of a “preferred” MNO can be evaluated against the other networks.

The SNYPER can also be used to help establish optimum antenna placement and perform local site surveys.

  • Enhanced cellular surveying of new and existing installations on 4G and 3G networks
  • Establish most suitable operator for application
  • Evaluate your “preferred” MNO’s performance
  • Determine optimum antenna placement
  • Results are reported in CSV & graphical HTML format
  • SIM free operation on all bands and technologies
  • Complete network breakdown and summary results

2Ah
Battery
3G
UMTS
4G
LTE
CSV
Reports
Cloud
SURVEY
GEAR
Accessories
HARD
Carry Case
HTML
Reports
MAP
Portal
MNO
Summary
MULTI
Language
SAVE
1 Survey
SIM
Free
TEMP
-10 to +50 C
TFT
Display
USA
Americas
USB
Power
USB
Serial
WIN
Linux/MAC


RoHS
Compliant
CE
Compliant
3g signal strength tester,4g network analyser,4g network base station detection,4g network signal logging,lte network analyser,lte network signal logging,lte signal strength tester,network signal logging

SNYPER-LTE (USA) V1

4 Supported Bands 4G / LTE
B12-B13 (700 MHz)
B5 (850 MHz)
B4 (1700 MHz)
B2 (1900 MHz)

2 Supported Bands 3G / UMTS / HSPA+
B5 (850 MHz)
B2 (1900 MHz)

SNYPER-LTE (USA) V2

8 Supported Bands 4G / LTE
B71 (600 MHz)
B12-B13 (700 MHz)
B14 (700 MHz)
B5 (850 MHz)
B4 (1700 MHz)
B66 (1700 MHz)
B2 (1900 MHz)

3 Supported Bands 3G / UMTS / HSPA+
B5 (850 MHz)
B4 (1700 MHz)
B2 (1900 MHz)

Mechanical Specifications
Operating temperature range: -10 to +50°C
Storage temperature range: -20 to +50°C
Relative humidity: <85% (non-condensing)

Physical Interfaces
1 x USB 2.0 FS (12 MBits/s)
1 x SMA female cellular antenna connector
1 x Red LED charging indicator
1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multifunction keypad

Power and Consumption
Power: 5V @ 500mA from USB supply
Battery: Lithium Ion 3.7V, 2000mAh
Life: 48 hours based on 20 surveys/day
Warm up time: 2s

Certification
FCC
RoHS

Datasheet

SNYPER-LTE+ (USA) V1/V2 Datasheet

Manuals

User Manuals

SNYPER Programming Guide (Rev 1.1)
SNYPER-LTE+ Family Quick Start Guide
CloudSURVEY User Manual
SNYPER-LTE+ Family User Manual

Datasheets

SNYPER LTE+ Spectrum (AP) Datasheet
SNYPER-LTE+ (EU) V2 Datasheet
SNYPER-LTE+ Spectrum (EU) V1/V2 Datasheet
SNYPER-LTE+ (USA) V1/V2 Datasheet
SNYPER-LTE+ (EU) Datasheet

Quick Start Guides

SNYPER-LTE+ Family Quick Start Guide

Marketing Documents

SNYPER V2 – Comparison Chart
7 Great Things about the SNYPER-LTE+
SNYPER-LTE+ & Spectrum Flyer
SNYPER-LTE Family Product Comparison

Software Manuals

SNYPER Programming Guide (Rev 1.1)
CloudSURVEY User Manual

Hardware

SNYPER-LTE+ Family User Manual

Software Updates

User Manuals

SirettaSPARK User Manual

Software Downloads

Register to download the SirettaSPARK Tool

Software Manuals

SirettaSPARK User Manual

Ordering Information

Siretta Part Number: 61216

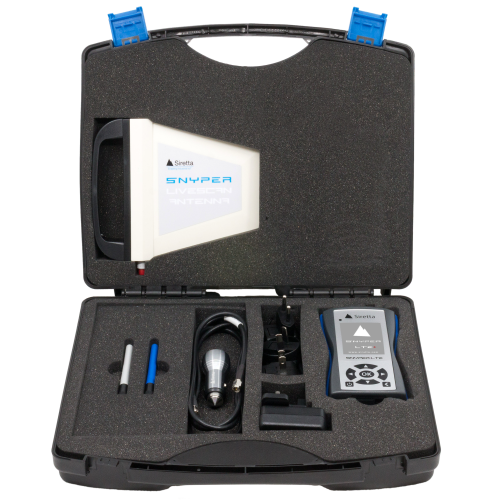

Description: SNYPER-LTE+ (USA) V2 Network Signal Analyser with Accessories and Hard Carry Case
