SIM Free - Multiple Survey LTE Analyser (EU)SNYPER-LTE+ Spectrum (EU) High performance 4G / LTE network signal analyser

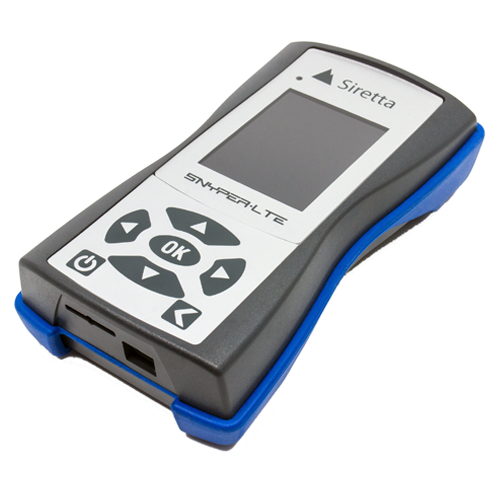

The SNYPER-LTE+ Spectrum (EU) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE, 3G/UMTS & 2G/ GSM European networks. The SNYPER-LTE+ Spectrum (EU) does not require a SIM in order to provide network survey results.

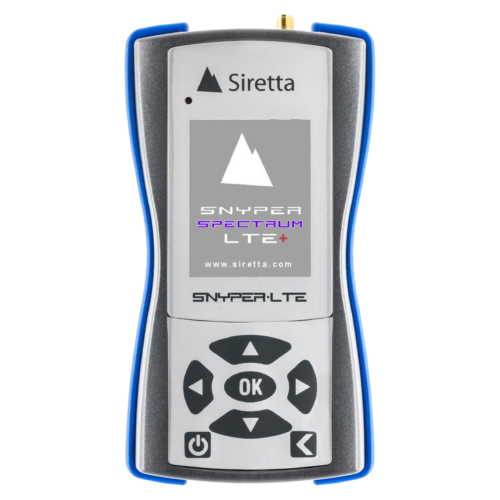

The SNYPER-LTE+ Spectrum (EU) can save multiple surveys locally in memory and incorporates Siretta’s leading liveSCAN feature which allows you to perform real time graphical site surveys on the full colour SNYPER display.

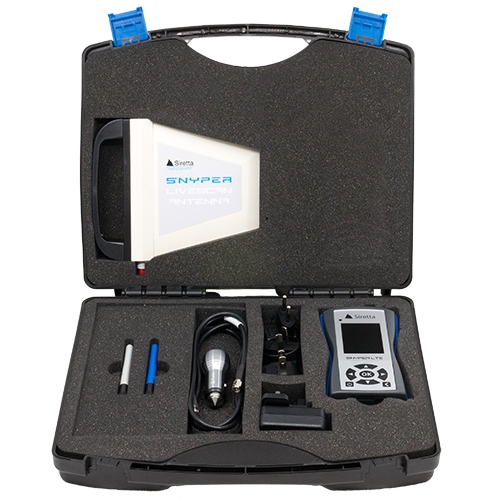

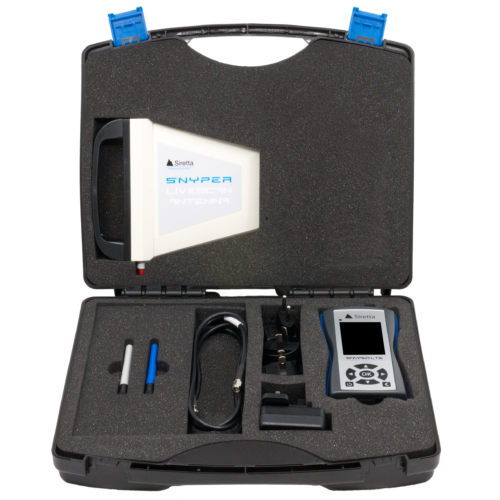

The SNYPER-LTE+ Spectrum is supplied with an omni-directional antenna to detect “hotspots” in buildings and perform site surveys and also includes a directional antenna kit to perform point-to-point antenna alignment. The  SNYPER can survey the local network and display results from all discovered cellular cell towers observed in the area. Results are ordered from highest to  lowest “visible” base-station signal and the key network parameters of each are displayed.

  • Enhanced cellular surveying of new and existing installations on 4G / LTE, 3G / UMTS and 2G / GSM networks
  • Establish most suitable operator for application
  • Evaluate your “preferred” MNO’s performance
  • Determines “hotspots” & assists with antenna alignment, through Siretta’s liveSCAN feature
  • Results are reported in CSV & graphical HTML format
  • SIM free operation on all bands and technologies
  • Complete network breakdown and summary results

2Ah
Battery
2G
GSM
3G
UMTS
4G
LTE
CSV
Reports
Cloud
SURVEY
EMEA
Europe
GEAR
Accessories
HARD
Carry Case
HTML
Reports
LIVE
SCAN Logs
MAP
Portal
MNO
Summary
MULTI
Language
P2P
Alignment
SAVE
50 surveys
SCAN
Realtime
SIM
Free
TEMP
-10 to +50 C
TFT
Display
USB
Power
USB
Serial
WIN
Linux/MAC


RoHS
Compliant
CE
Compliant
3g signal strength tester,4g network analyser,4g network base station detection,4g network signal logging,lte network analyser,lte network signal logging,lte signal strength tester,network signal logging

SNYPER-LTE Spectrum (EU) V1

5 Supported Bands 4G / LTE
B1 (2100 MHz)
B3 (1800 MHz)
B7 (2600 MHz)
B8 (900 MHz)
B20 (800 MHz)

2 Supported Bands 3G / UMTS / HSPA+
B8 (900 MHz)
B1 (2100 MHz)

2 Supported Bands 2G / GSM / GPRS
B8 (900 MHz)
B3 (1800 MHz)

SNYPER-LTE Spectrum (EU) V2

6 Supported Bands 4G / LTE
B1 (2100 MHz)
B3 (1800 MHz)
B7 (2600 MHz)
B8 (900 MHz)
B20 (800 MHz)
B28A (700 MHz)

3 Supported Bands 3G / UMTS / HSPA+
B8 (900 MHz)
B1 (2100 MHz)
B3 (1800 MHz)

2 Supported Bands 2G / GSM / GPRS
B8 (900 MHz)
B3 (1800 MHz)

Mechanical Specifications
Operating temperature range: -10 to +50°C
Storage temperature range: -20 to +50°C
Relative humidity: <85% (non-condensing)

Physical Interfaces
1 x USB 2.0 FS (12 MBits/s)
1 x SMA female cellular antenna connector
1 x Red LED charging indicator
1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multifunction keypad

Power and Consumption
Power: 5V @ 500mA from USB supply
Battery: Lithium Ion 3.7V, 2000mAh
Life: 48 hours based on 20 surveys/day
Warm up time: 2s

Certification
CE
RoHS

Datasheets

SNYPER-LTE+ Spectrum (EU) V1/V2 Datasheet
CloudSURVEY Datasheet

Quick Start Guides

SNYPER-LTE+ Family Quick Start Guide

Hardware Manuals

SNYPER-LTE+ Family User Manual

Software Manuals

SirettaSPARK User Manual
CloudSURVEY User Manual

Software Downloads

Register to download the SirettaSPARK Tool

Additional Documents

SNYPER V2 Fact Sheet
SNYPER – Feature Comparison
Siretta Device Safety and Product Care

Ordering Information

Siretta Part Number: 61774
Description: SNYPER-LTE+ Spectrum (EU) V2 Network Signal Analyser with Accessories and Hard Carry Case
