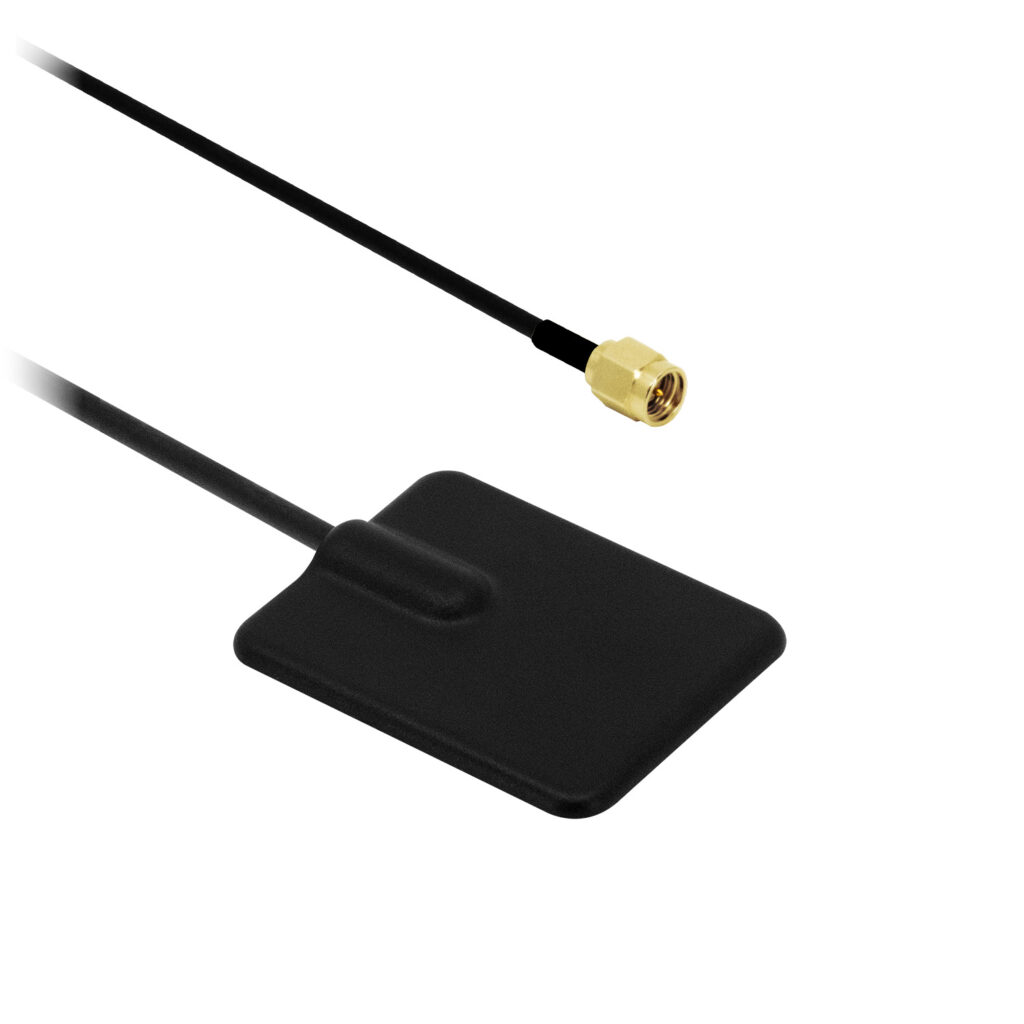

Alpha 14

The Alpha 14 is one of the most compact adhesive antennas, with a slim low profile design.

Typically used for applications such as smart energy meters or telemetry equipment, the Alpha 14 achieves a high gain in the 1.8-2.1 GHz frequency range despite its
small size.

Supplied with a 3M adhesive base. The Alpha 14 is tuned to certain bands of UMTS (3G), LTE (4G) and NR (5G), allowing for worldwide use.

The Alpha 14 is supplied with different length cables and SMAM/FMEF connectors.

Alternative cable lengths and connectors can be specified for volume orders.

5G compatible
Low profile of 3mm
Small footprint
ISM: 868 and 915MHz
Intended for indoor use

GSM

UMTS

LTE

New Radio

Adhesive

LTE

Cat M1

LTE

NB1

RoHS

Compliant

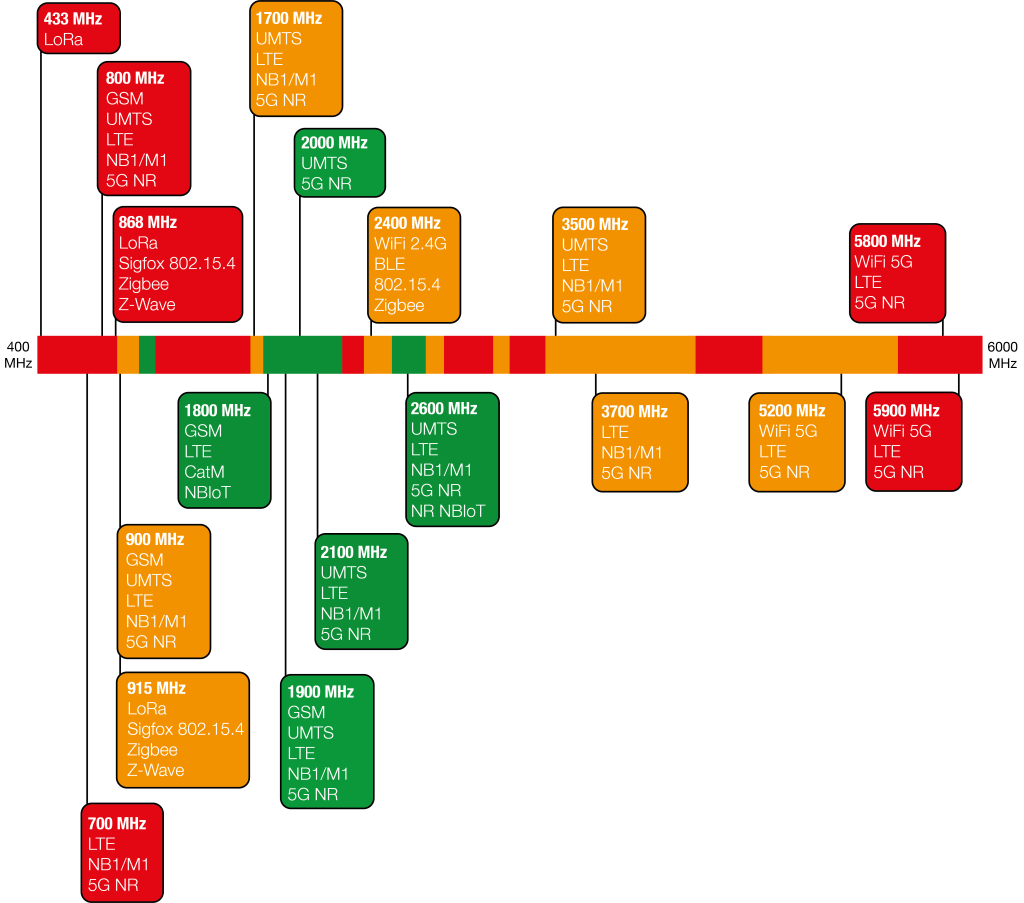

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
