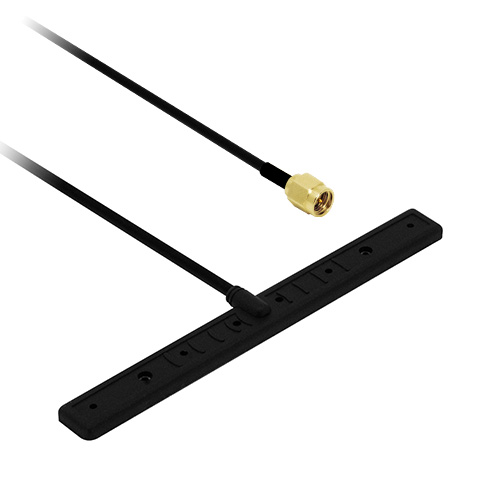

The Alpha 1A is a slim, low profile, T-Bar antenna measuring 104 x 10.8 x 4 mm, which will mount discreetly onto most surfaces using the adhesive base.

The Alpha 1A is tuned to GSM (2G), UMTS (3G), LTE (4G), NR (5G), Dual-band WiFi (2.4 GHz and 5 GHz) & the 2.4 GHz ISM frequencies.

Typical applications are for smart energy meters, in-vehicle communications for hands free car kit or on the side of telemetry equipment.

However, this antenna will suit a wide variety of environments and applications.

  • Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM
  • Supports LTE Cat M, LTE Cat NB and NR Cat NB Bands
  • Supports Dual-band WiFi 2.4 GHz and 5 GHz
  • Supports Bluetooth and BLE, Zigbee and ISM 2.4 GHz,
    ISM 5.8GHz and IEEE 802.15.4 Bands
  • Adhesive Mount
  • Low Profile
  • Flexible Housing

alpha 1a


2G
GSM
3G
UMTS
4G
LTE
5G
New Radio
A
Adhesive
BLE
Bluetooth
IEEE
802.15.4
ISM
2450
ISM
5800
LTE
Cat 1
LTE
NB1
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WLAN
2400
WLAN
5800
ZB
Zigbee

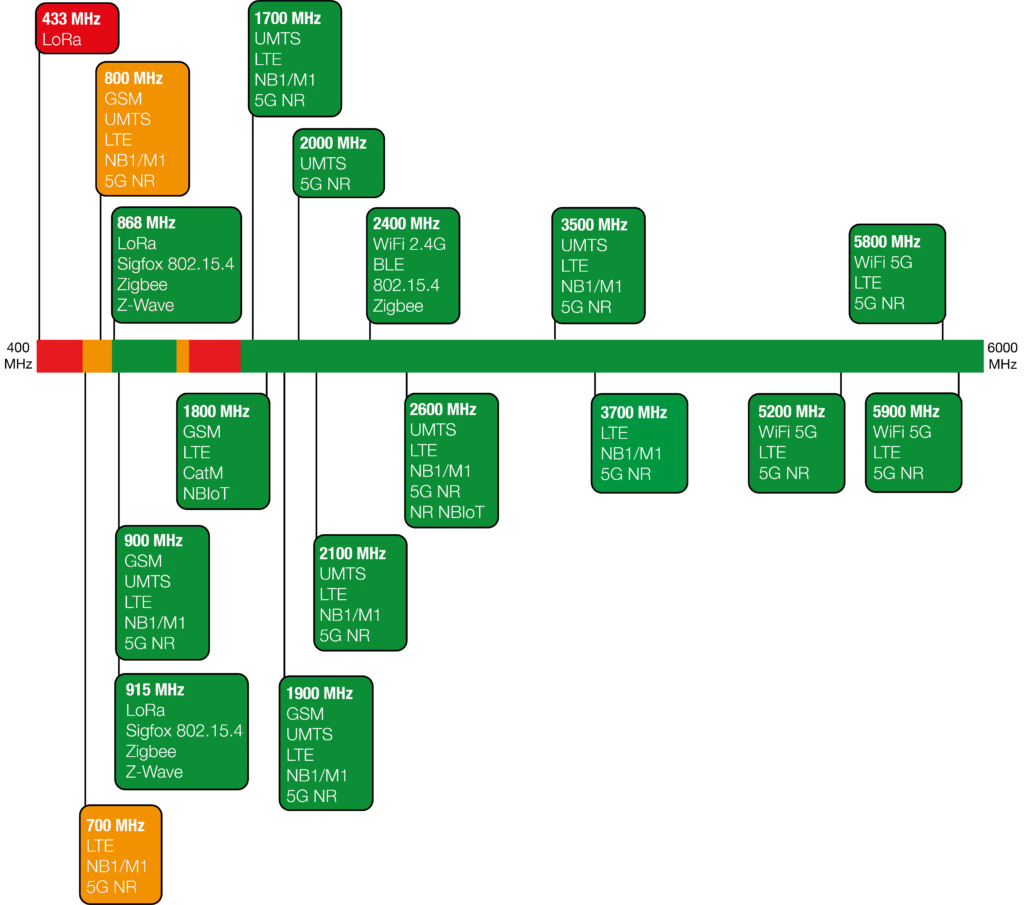

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheet

Alpha 1A Datasheet
Version: 1.6

RF Antenna Test Data

RF Antenna Test Data Alpha 1A

Handheld Antenna Test

Alpha 1A Snyper Graphyte Test

Ordering Information

Siretta Part Number: ALPHA1A/1M/SMAM/S/S/11
Description: 5G/4G/3G/2G/Dual-band WiFi/2.4G/BT/Zigbee/Adhesive T-bar Antenna 1M SMA Male

Request For Quote

Siretta Part Number: ALPHA1A/2.5M/SMAM/S/S/11
Description: 5G/4G/3G/2G/Dual-band WiFi/2.4G/BT/Zigbee/Adhesive T-bar Antenna 2.5M SMA Male

Request For Quote

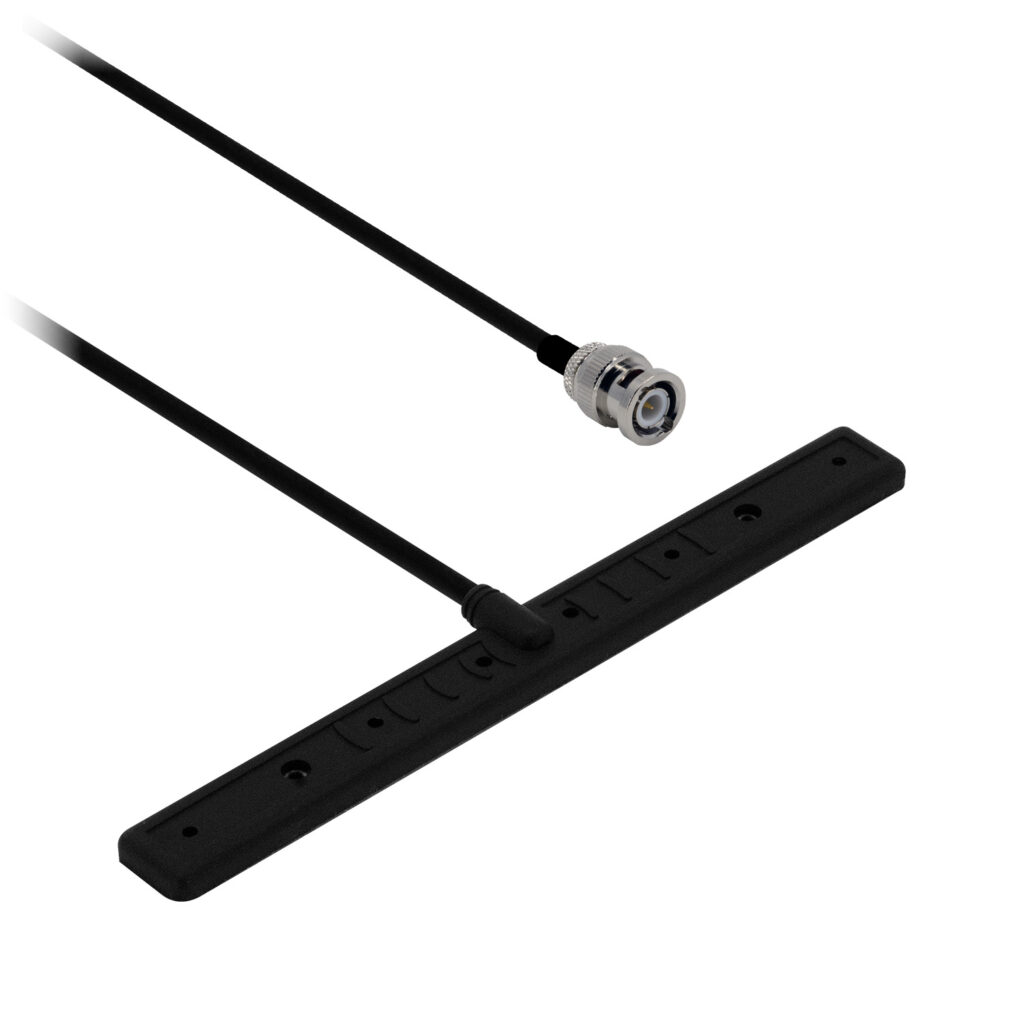

Alternative cable lengths and connector types can be specified for volume orders
