Alpha 41GSM/UMTS/LTE/WiFi and Bluetooth Antenna

The Alpha 41 is a flexible over moulded antenna designed for vertical polarisation but having similar properties in the horizontal plane. The antenna comes fitted with a quality 3M adhesive pad for simple installation.

The wide bandwidth of the antenna makes it ideal for multiple uses across both telephony and WiFi.

• Overall Frequency Coverage 700-960 and 1700-2700MHz
• Ideal for Wireless LAN, Bluetooth and ZigBee
• Slim unobtrusive design


2G
GSM
3G
UMTS
4G
LTE
A
Adhesive
BLE
Bluetooth
ISM
2450
WLAN
2400
ZB
Zigbee


RoHS
Compliant

Datasheets

Alpha 41 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: ALPHA41/2M/SMAM/RP/S/19

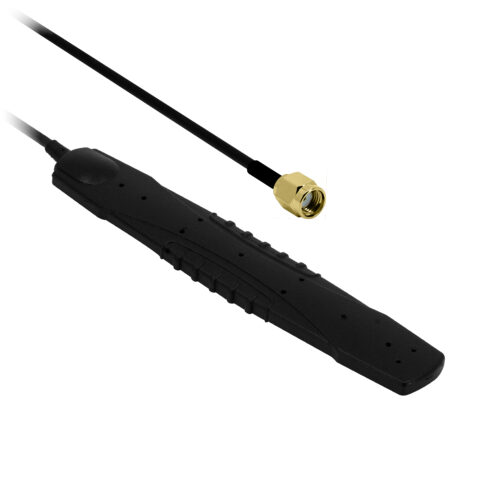

Description: GSM/UMTS/LTE/WiFi and Bluetooth Antenna, 2m Cable SMA Male Reverse Polarity

Request For Quote

Siretta Part Number: ALPHA41/3M/SMAM/S/S/19

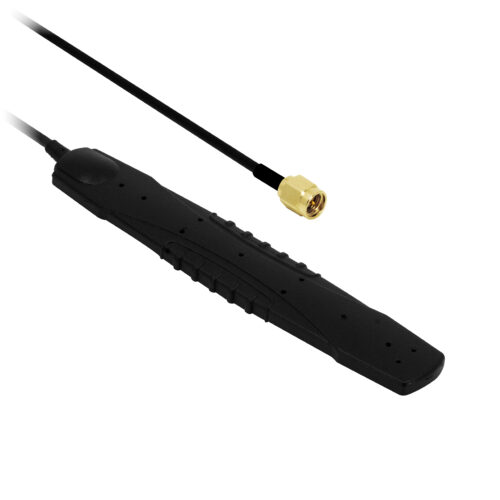

Description: GSM/UMTS/LTE/WiFi and Bluetooth Antenna, 3m Cable SMA Male

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
