The Alpha 7 is an adhesive mount compact, puck-shaped GSM/GPRS & GPS combination antenna.

The GSM/GPRS antenna is a dual band 900/1800MHz dipole providing GSM and GPRS coverage throughout Europe, Africa and most of Asia.

The GPS antenna is built with a 30dB Low Noise Amplifier (LNA) to help provide strong satellite fixing.

• 30dB pre-amplifier
• High grade mounting adhesive
• Improves signal to noise ratio for mobile applications
• Works on all UK and European GSM / GPRS cellular networks

Alpha 7


2G
GSM
A
Adhesive
GPS
Position

Datasheet

Alpha 7 Datasheet

Handheld Antenna Test

Alpha 7 Snyper Graphyte Test

Ordering Information

Siretta Part Number: ALPHA7/3M/SMAM/SMAM/S/S/11

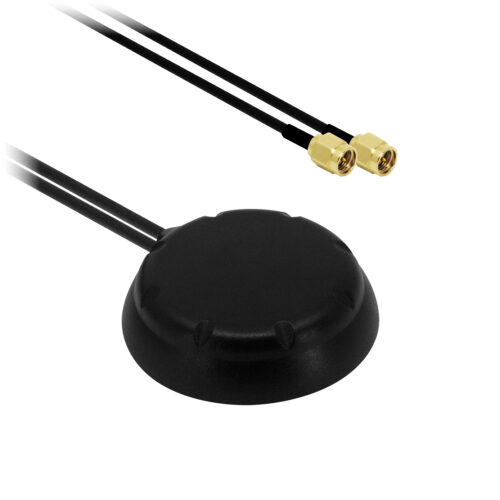

Description: Combined GSM/GPRS (2G) & GPS Puck Antenna 3M SMA Male

Request For Quote

Siretta Part Number: ALPHA7/3M/FMEF/SMAM/S/S/11

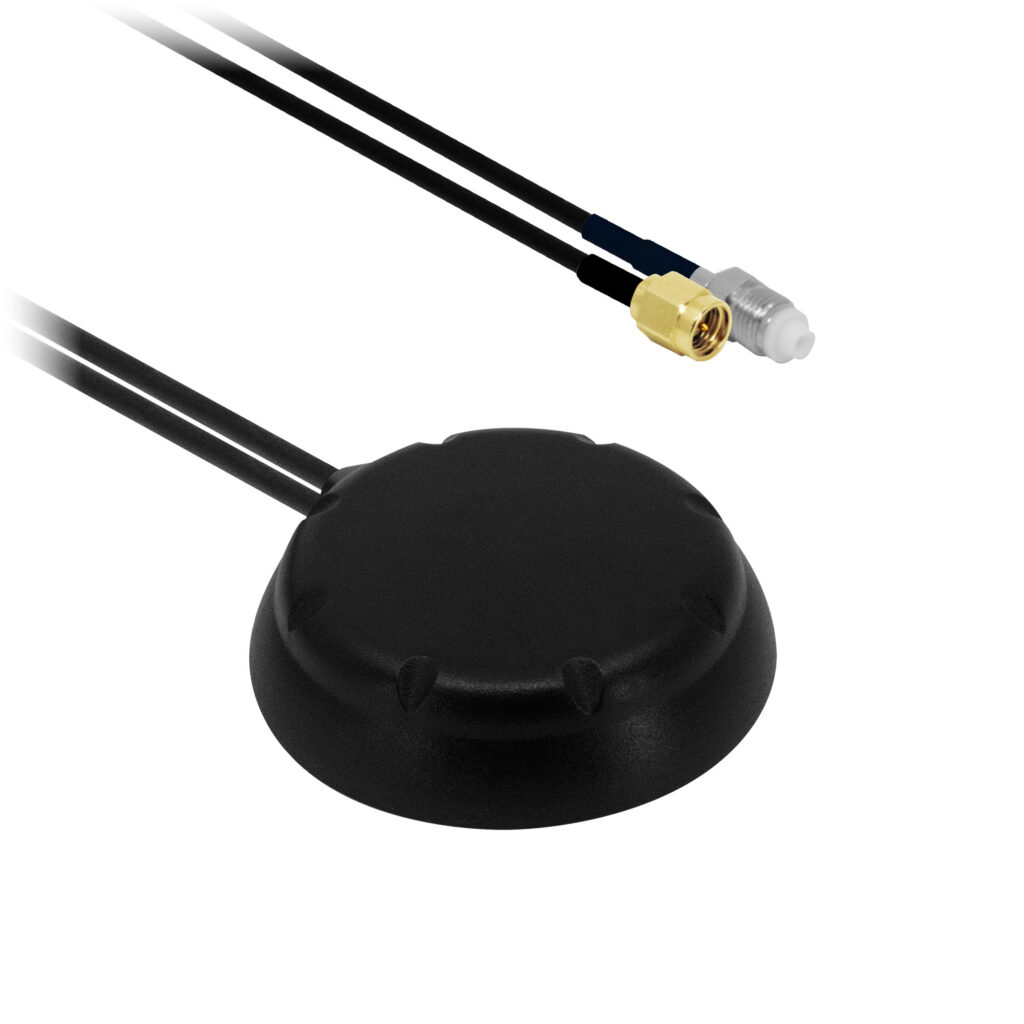

Description:  Combined GSM/GPRS (2G) & GPS Puck Antenna 3M FME Female (GSM)/SMA Male (GPS)

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
