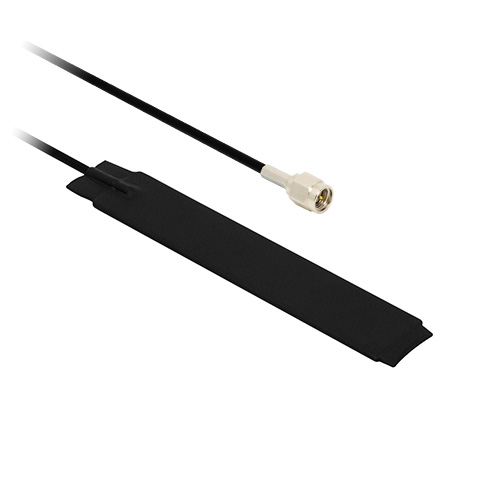

Alpha 84G LTE / LoRa / Bluetooth Flat Blade Antenna

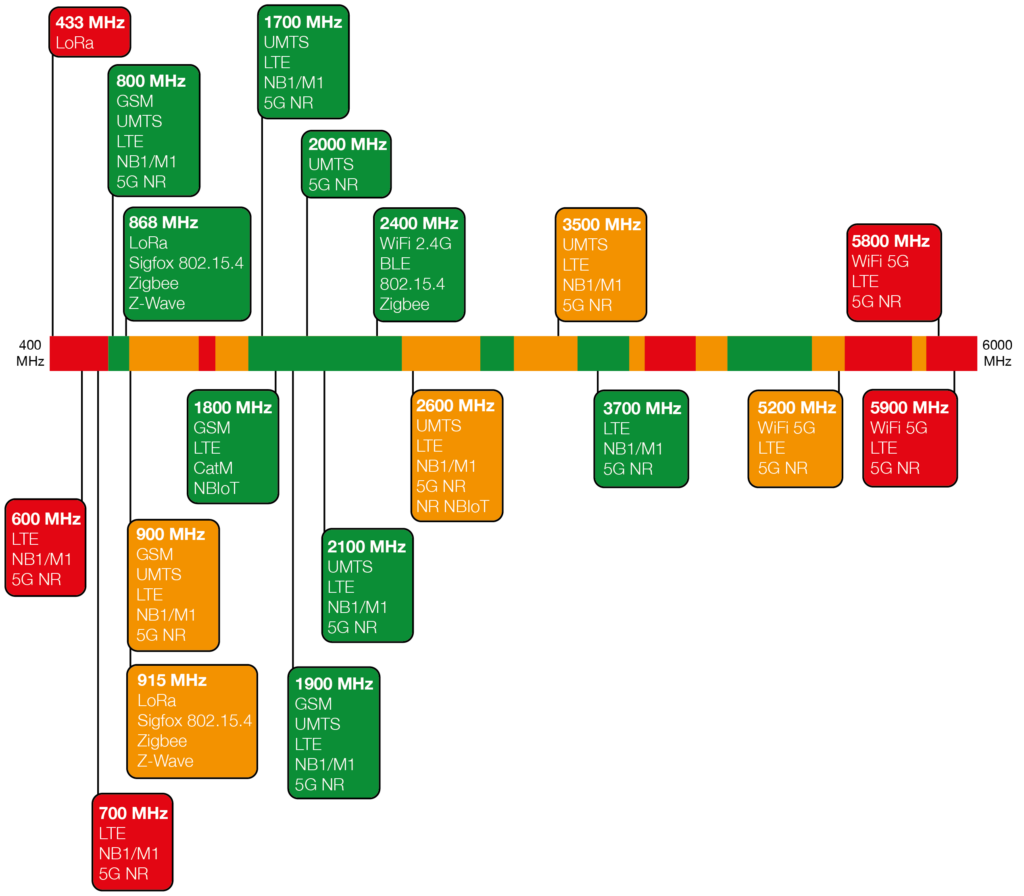

The Alpha 8 has been tuned for 2.4 GHz use, with additional support for 868 MHz for LoRa applications in Europe. This antenna also covers the Key 4G LTE, NB-IoT and Cat M bands.
The dipole PCB of the Alpha 8 is encased and heat sealed to protect against moisture ingress and is versatile enough to fit in many environments.

Supplied with various cable lengths and connector options, it is a reliable design which is already field proven, making it ideal for today’s telemetry applications which demand effective performance at a competitive price.

Alternative cable lengths and connector types can be specified for volume orders.

Key Features

• IP67 rated (no dust ingress and submergible in up to 1 meter of water for 30 minutes)
• Supports Key 4G LTE Frequencies
• Supports 2.4 GHz Wi-Fi / Bluetooth / Zigbee
• Supports LoRa / Sigfox / ISM 868 MHz
• Supports some 5G NR / 4G LTE / 3G UMTS Bands
• Supports key Cat M, NB-IoT Bands
• Compact size and covert / anti-vandal design
• Sealed housing protects against moisture ingress
• Low profile and ultra thin design allows installation into many applications

Electrical Specifications

• Impedance: 50 Ohm
• Polarization:  Vertical
• Max input power: 6 W
• Ground plane independent: No

Environmental Specifications

• Operating temperature range: -40 °C – +85 °C
• Storage temperature range: -40 °C – +85 °C

Mechanical Specifications

• Dimensions: 113 x 21 x 3mm (without cable)
• Weight: 5g

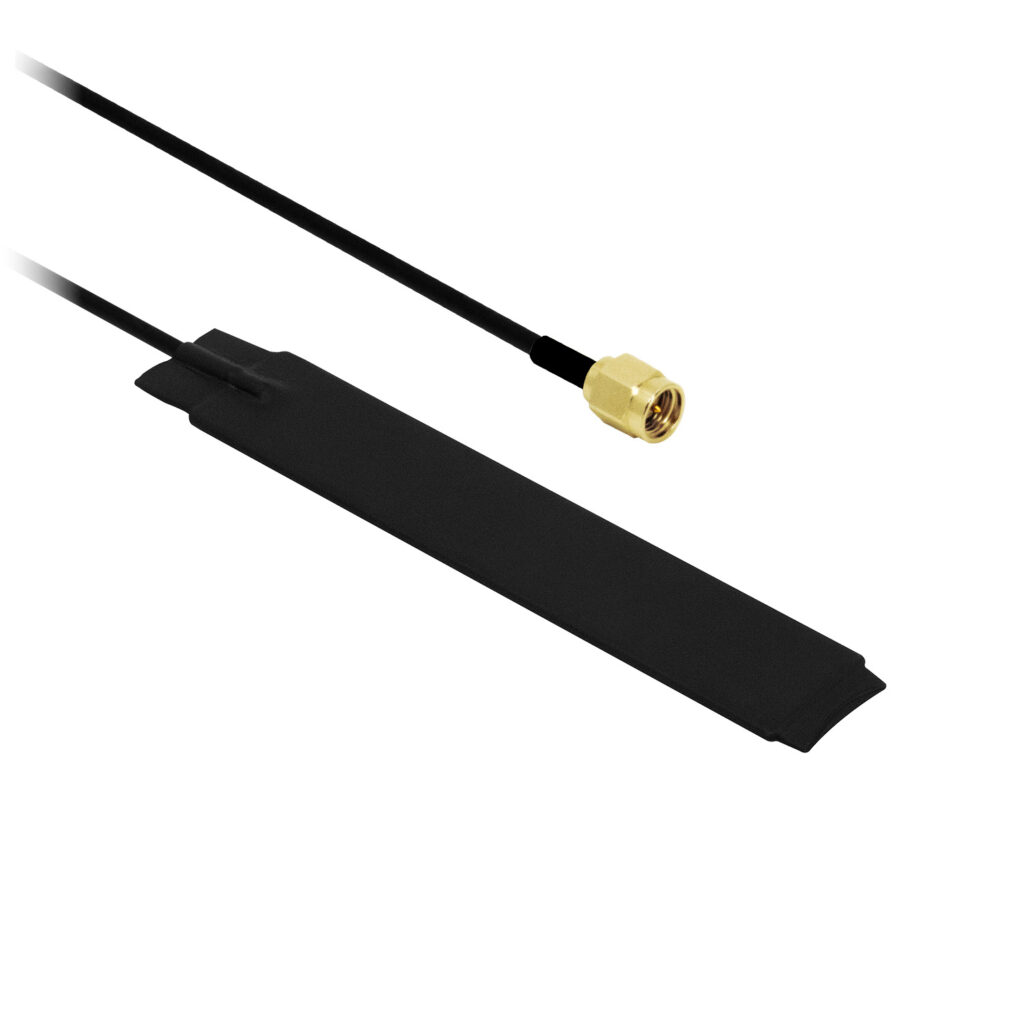

• Connector:  SMA Male / FME Female
• Cable: 113 x 21 x 3mm (without cable)
• Mounting method: Direct Connect
• Housing materials: NP-140TL-B
