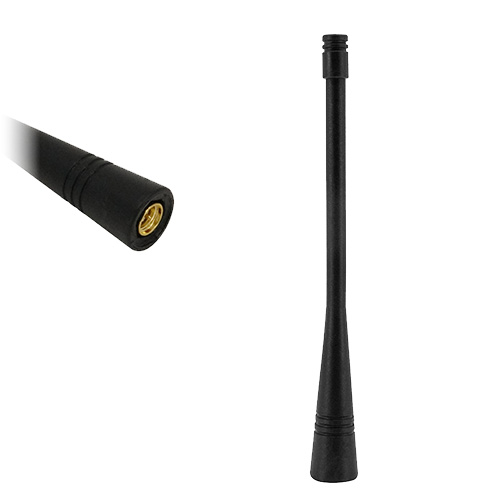

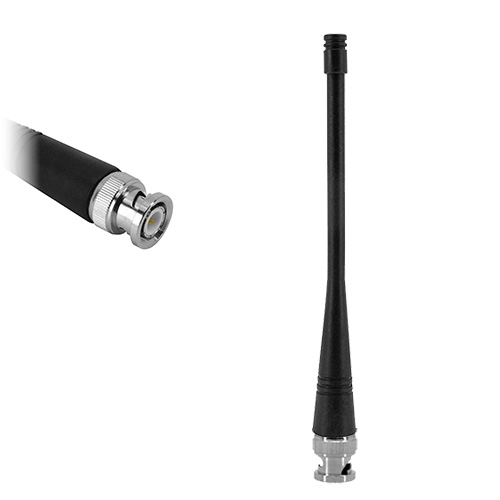

Delta 12C915 MHz LoRa Terminal Mount Whip Antenna

The Delta 12 antenna range are ¼ wave ISM whip antennas. This style of antenna is offered in a number of different frequencies covering the popular ISM bands.

This antenna is perfect for high volume ISM applications within the mobile applications world. The Delta 12C is tuned to the ISM (Industrial, Scientific and Medical) radio frequency band of 915MHz.

Key Features

• Range of ISM frequency bands available
• 3dBi gain
• 150 mm whip antenna
• Small format design for applications with limited space
• Meets all EU compliance criteria for electronic goods

Electrical Specifications

• Temperature range: -30° to +75°C
• Gain: 3 dBi
• VSWR: <3.0:1
• Impedance: 50 Ohms
• Frequency Bands: 902 -928 MHz
• Polarization: Linear

Mechanical Specifications

• Dimensions: 150mm x 15mm
• Connector: SMA
• Mounting Method: Terminal Mount
