Delta 14

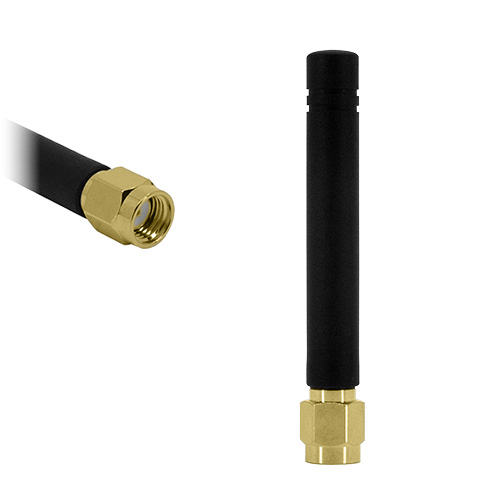

The Delta 14 antenna is a direct connect stubby antenna tuned to 2.4 GHz – the Wi-Fi / WLAN / Bluetooth / Zigbee frequencies.

Typical applications for this cost-effective antenna are Wi-Fi enabled terminals and modems, Bluetooth applications including angle of arrival and departure direction finding.

This 2.4 GHz antenna can be used with most modern-day Wi-Fi modems such as NetGear and TP-link that operate on the traditional 2.4 GHz frequency.

The Delta 14 is supplied, as standard, with a reverse polarity (RP) SMA male connector but can be built with an alternative connector for volume orders.

Compact design: only 56mm long
Cable free 2.4 GHz Wi-Fi antenna solution
Supports 2.4 GHz applications: Wi-Fi 2.4 GHz / Bluetooth/ Zigbee / IEEE 802.15.4
Supports some of the 4G and 5G cellular bands around 2.4 GHz
Made of TPS for durability
Supplied with RP SMA connector for direct connection to a device
Omnidirectional radiation for even coverage

BLE

Bluetooth

Direct

ISM

2450

WIFI 4

802.11n

WIFI 5

802.11ac

WIFI 6

802.11ax

WLAN

2400

Zigbee

RoHS

Compliant

Spectral Frequency Diagram

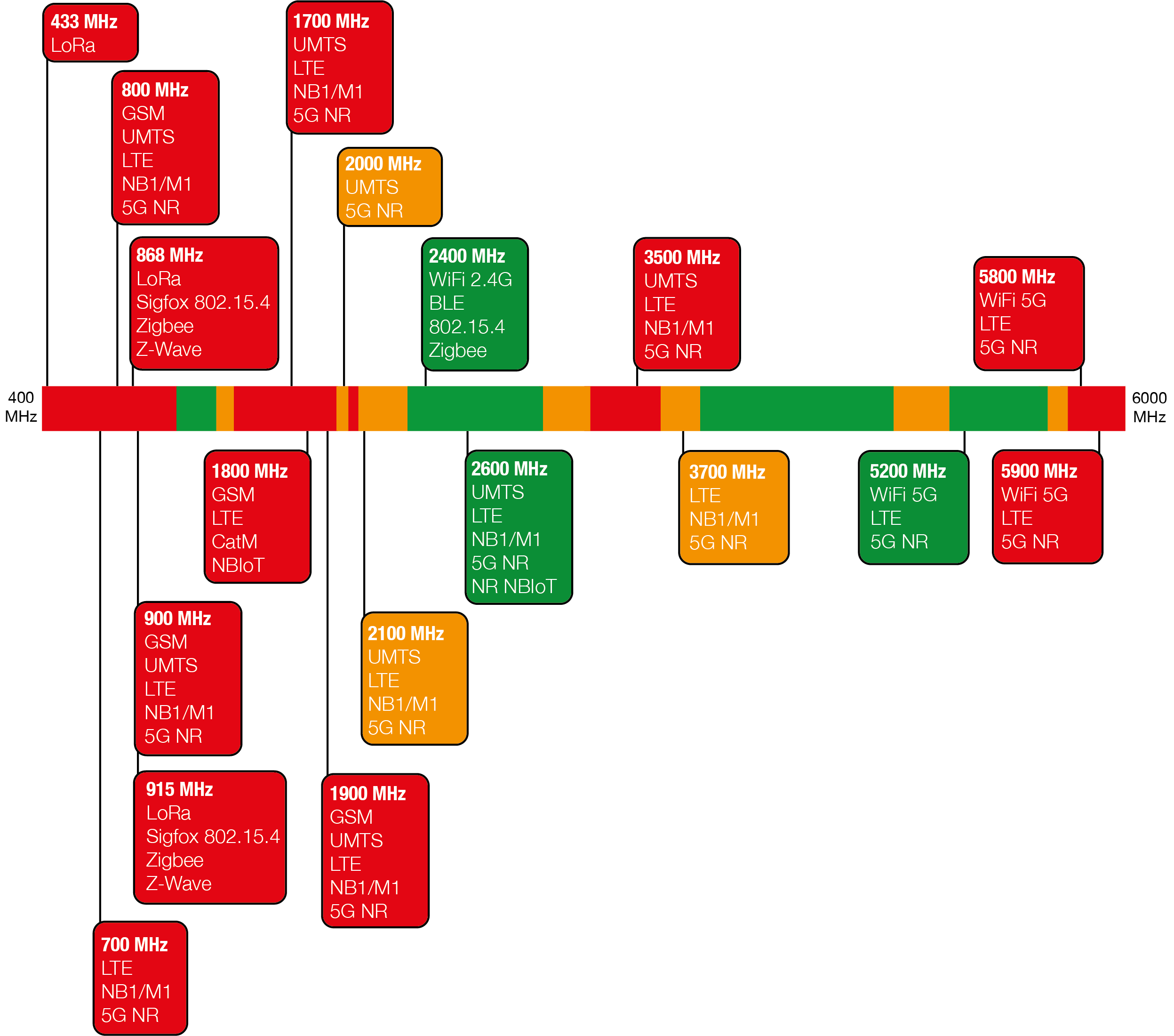

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
