Delta 15Right Angled 2.4GHz Stubby WiFi/WLAN & Bluetooth Antenna

The Delta 15 antenna is a direct connect, stubby antenna tuned to 2.4 GHz – the Wi-Fi / WLAN / Bluetooth / Zigbee frequencies.

A popular choice for cost effective connection of Point-of-Sale terminals and other IoT devices.

This 2.4 GHz antenna can be used with most modern-day Wi-Fi modems such as NetGear and TP-link that operate on the traditional 2.4 GHz frequency.

The Delta 15 has a right-angled reverse polarity (RP) SMA male connector.

  • Compact design: only 53.5mm
  • Cable free 2.4 GHz Wi-Fi antenna solution
  • Supports 2.4 GHz applications: Wi-Fi 2.4 GHz / Bluetooth/ Zigbee / IEEE 802.15.4 / ISM 2450
  • Supports some bands of 5G/4G/3G/2G, LTE Cat M, LTE Cat NB, NR Cat NB between 1600 MHz and 5000 MHz
  • Made of TPS for durability
  • Omnidirectional radiation for even coverage


2G
GSM
3G
UMTS
4G
LTE
5G
New Radio
BLE
Bluetooth
D
Direct
ISM
2450
LTE
Cat M1
LTE
NB1
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WLAN
2400
ZB
Zigbee


RoHS
Compliant

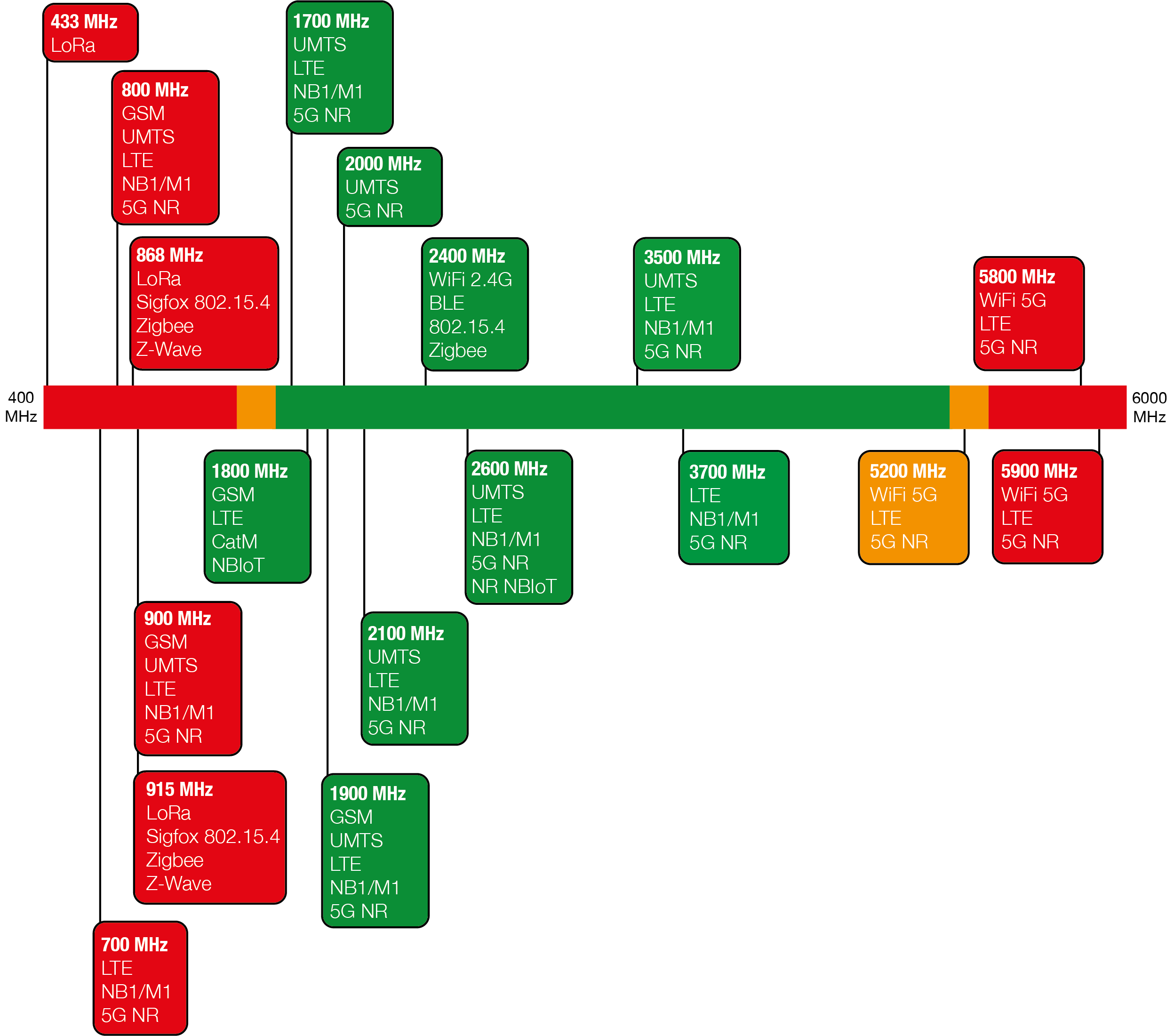

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

Delta 15 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: DELTA15/X/SMAM/RA/RP/11
Description: Right Angled 2.4 GHz Stubby Wi-Fi/WLAN & Bluetooth Antenna RP SMA Male Connector
