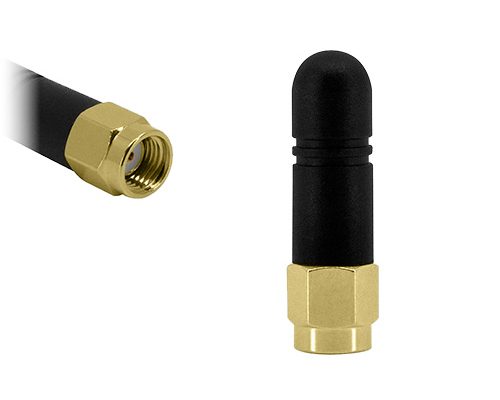

Delta 202.4Ghz 28.5mm stubby WiFi / Bluetooth Antenna

The Delta 20 is a compact, direct connect 2.4GHz stubby antenna commonly used with WiFi, Bluetooth and Zigbee applications.

The antenna can be used with IoT industrial systems. This antenna is available with the SMA male and the reverse polarity SMA male connectors.

Key Features

• 1/4 wave monopole
• Ground-plane independent
• WiFi, Bluetooth and ZigBee compatible
• Does not rely on mounting on metallic surface
• Omnidirectional radiation
• Meets all EU compliance criteria for electronic good

Electrical Specifications

• Impedance: 50 Ohm
• Gain: 0dBi
• VSWR: <1.5
• Frequency: 2.4GHz – 2.5GHz
• Electric Wave: 1/4 monopole antenna

Mechanical Specifications

• Dimensions: L28.5 x W7.9mm Ø
• Connector: SMA Male
• Connecting Method: Direct Connect
