The Delta 25 is a compact, right angled direct connect 2.4 GHz stubby antenna.
Typical applications are Point-of-Sale terminals and networked IoT modules.
The antenna can be used with most modern-day Wi-Fi modems such as NetGear and TP-link that operate on the traditional 2.4 GHz frequency.
The Delta 15 is available with the SMA male and the reverse polarity (RP) SMA male connectors.

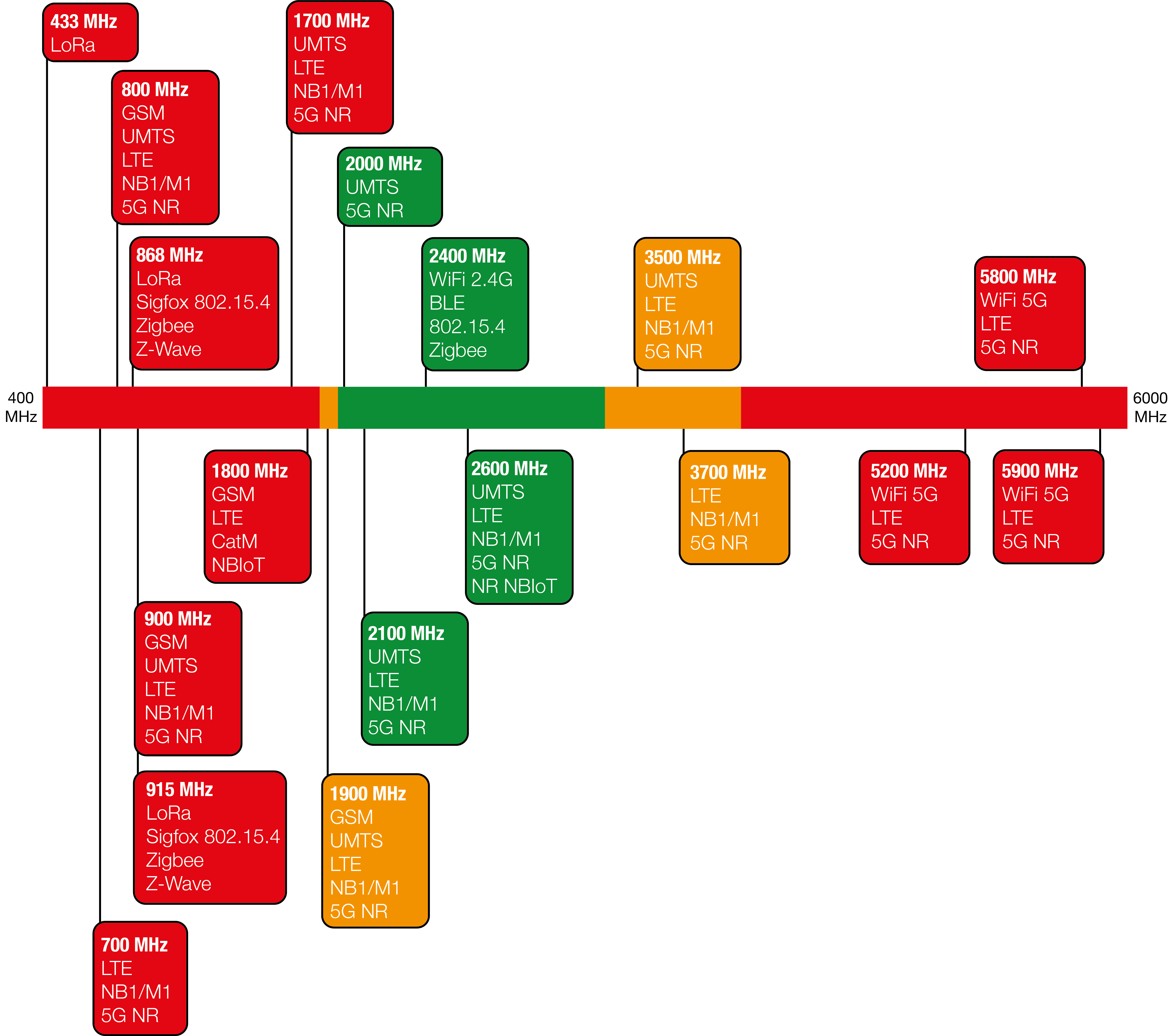

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
Siretta Part Number: DELTA25/X/SMAM/S/RA/35
Description: Wireless LAN and Bluetooth Stubby 28mm Right Angle Antenna SMA Male Connector
Siretta Part Number: DELTA25/X/SMAM/RP/RA/35
Description: Wireless LAN and Bluetooth Stubby 28mm Right Angle Antenna Reverse Polarity SMA Male Connector
