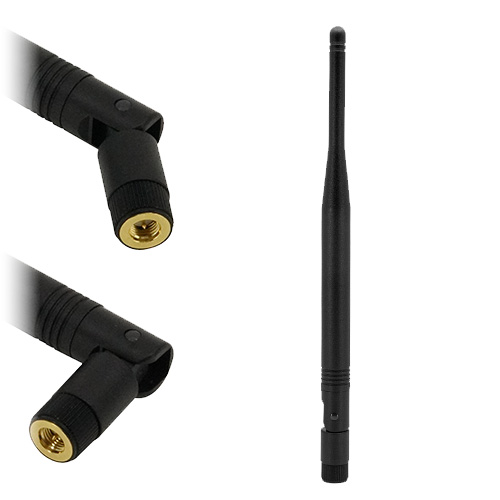

The Delta 26 is a hinged direct connect antenna that provides the most gain at the higher frequencies for 2G/3G/4G/5G, WiFi, Bluetooth and Zigbee.

Variable antenna positioning allows the best signal to be obtained using the built-in knuckle and swivel functionality.

The Delta 26 is supplied as standard with an SMA male connector, and it can be supplied with a reverse polarity connector for volume orders.

  • Supports 5G NR/4G LTE/3G UTMS/2G GSM
  • Supports LTE Cat M, LTE Cat NB & NR Cat NB
  • Supports WiFi 4/5/6 on 2.4 GHz Bands
  • Supports Bluetooth/Zigbee/Z-Wave/ISM 2450/WLAN2400/IEEE 802.15.4 Band
  • Supports ISM 5800/WLAN5800 Band
  • Supports ISM 915 Band
  • Supports LoRa, Sigfox
  • Wide bandwidth 700-960 MHz and 1700-2700 MHz
  • Ideal for Wireless LAN and Bluetooth
  • Omni-directional


2G
GSM
3G
UMTS
4G
LTE
5G
New Radio
BLE
Bluetooth
D
Direct
IEEE
802.15.4
ISM
2450
ISM
5800
ISM
915
LTE
Cat M1
LTE
NB1
LoRa
Wireless
SF
Sigfox
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI
2.4G
WLAN
2400
WLAN
5800
Z
Wave
ZB
Zigbee

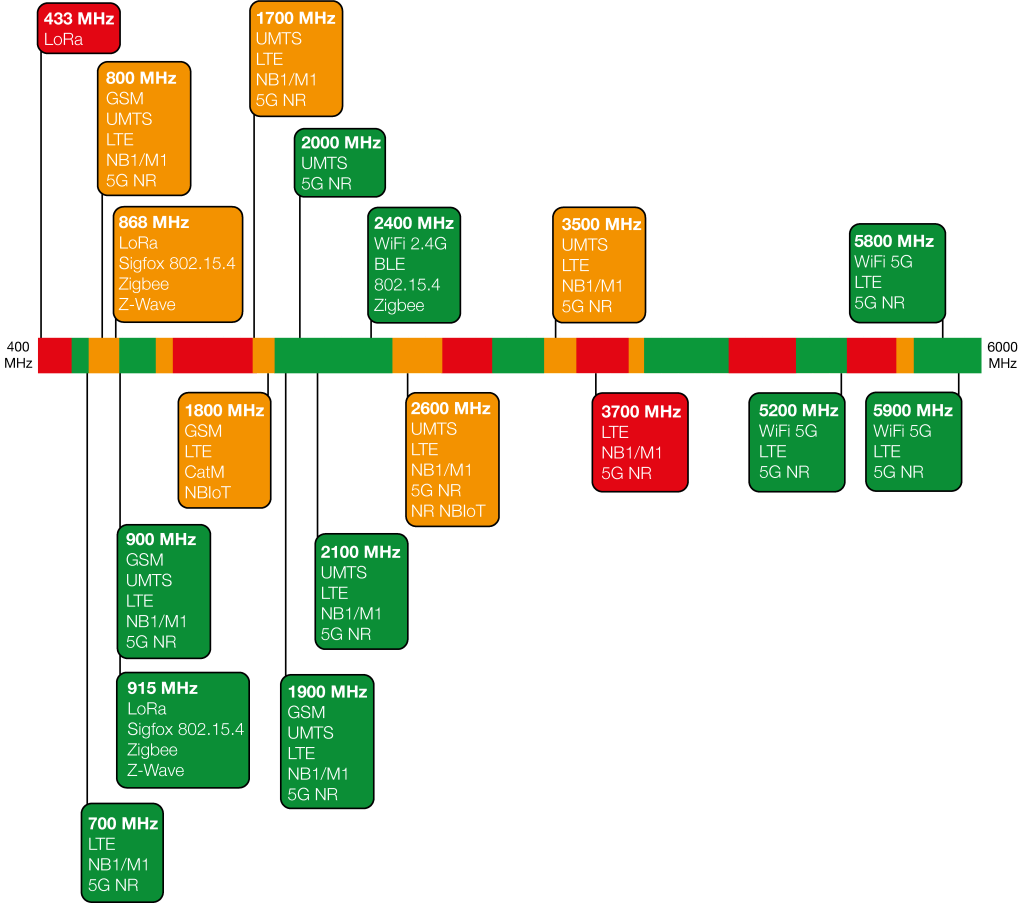

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheet

Delta 26 Datasheet

Handheld Antenna Test

DELTA 26 Snyper Graphyte Test

Ordering Information

Siretta Part Number: DELTA26/X/SMAM/S/S/19
Description: 5G/4G/3G/2G/WiFi 2.4G/Bluetooth/LoRa Hinged Antenna, SMA Male

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
