The Delta 7A primarily designed as a dual band WiFi antenna, tuned to the 2.4 GHz and 5 GHz bands.

It also supports some of the 5G NR and 4G LTE Cellular bands.

The hinged joint provides a flexible means of setting the antenna into the optimum position for WiFi transmission.

The Delta 7A supports WiFi, Bluetooth, Zigbee and ISM based applications and can be used with most modern-day WiFi modems that operate on the traditional 2.4 GHz and extended 5 GHz bands.

The table for 4G and 5G bands lists the supported frequency bands for LTE.

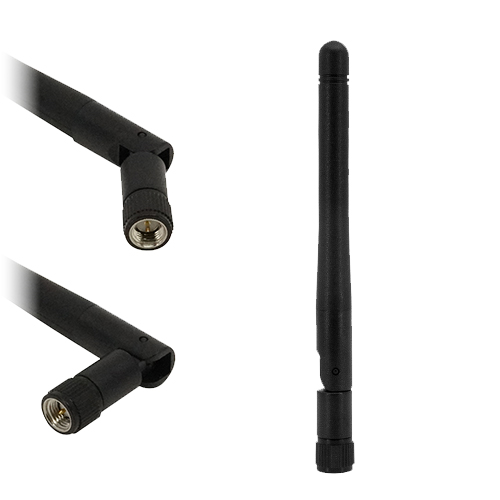

The Delta 7A is supplied, as standard, with either an SMA male or a reverse polarity SMA male connector.

  • Supports 5G NR / 4G LTE
  • Supports Dual-Band WiFi full 2.4 GHz & 5 GHz spectrum
  • Supports Bluetooth and BLE, Zigbee, ISM 2.4 GHz, ISM 5.8 GHz & IEEE 802.15.4 bands
  • Hinged Mount
  • Omni-Directional

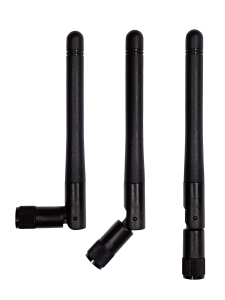

Delta7A Group


4G
LTE
5G
New Radio
BLE
Bluetooth
D
Direct
ISM
2450
ISM
5800
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI
2.4G & 5G
WLAN
2400
WLAN
5800
ZB
Zigbee

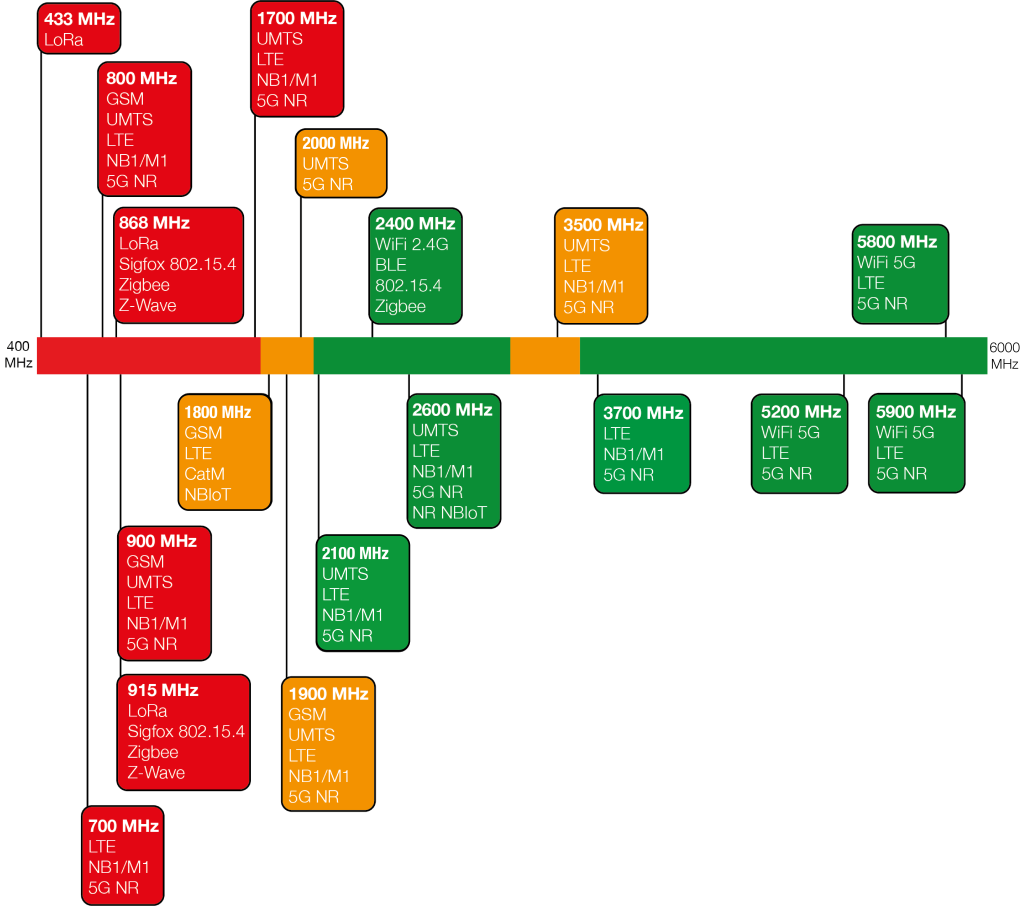

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheet

Delta 7A Datasheet

Antenna 2D Radiation Plot Guide

Antenna 2D Radiation Plot Guide

Antenna Technical Parameter Guide

Siretta Antennas 101 eBook

Ordering Information

Siretta Part Number: DELTA7A/x/SMAM/S/S/11
Description: DUAL BAND WIFI / 5G / 4G / Bluetooth / Zigbee / ISM 2.4G & 5.8G HINGED ANTENNA, SMA MALE

Request For Quote

Siretta Part Number: DELTA7A/x/SMAM/RP/S/11
Description: DUAL BAND WIFI / 5G / 4G / Bluetooth / Zigbee / ISM 2.4G & 5.8G HINGED ANTENNA SMA MALE REVERSE POLARITY

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
