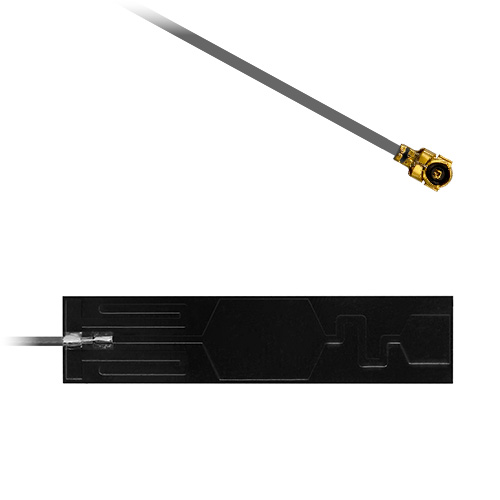

Echo 11WiFi/WLAN PCB Antenna

The Echo 11 2.4GHz PCB antenna is an efficiently tuned PCB element that is suited to a wide variety of RF modules. Suitable for Bluetooth, Zigbee, WLAN and ISM embedded applications.

The antenna allows users a longer working range than a standard on board chip antenna which is offered on many modules.

Alternative cable lengths and connector types may be specified for volume orders.

Key Features

• Compact size
• 2.4 – 2.5GHz operation
• 1.13mm Coax Cable
• Suitable for ISM, Bluetooth, Zigbee and WiFi
• Adhesive mounting pad on back
• Improved gain over “on-board” chip antennas

Electrical Specifications

• Operating Temperature Range: -20 – +65°C
• Impedance: 50 Ohm
• Peak Gain: 2.6dBi
• VSWR: <1.6
• Operating Frequency: 2.4 – 2.5GHz
• Polarization: Vertical
• Radiating element and wave: ¼ wave dipole

Mechanical Specifications

• Dimensions: L45 x W10 x H1mm
• Cable: 1.13mm Coax
• Connector: IPEX / UFL
