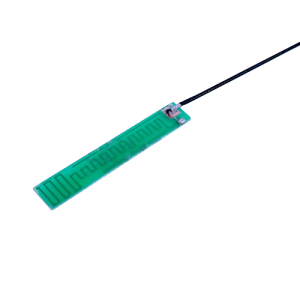

Echo 18WiFi / WLAN PCB Antenna

The Echo 18 is a WiFi / WLAN dedicated PCB antenna tuned between 2.4 and 2.5GHz and achieving a peak gain of 0.8dBi. It is suitable for applications where internal space for components is extremely limited or when using an external antenna is simply not appropriate.

The small design allows this antenna to be simply fixed to the inside of an enclosure. The Echo 18 is therefore suitable for a host of wireless IoT applications that require a space conscious embedded antenna solution.

• Compact size of 37 x 6mm
• 2.4 – 2.5GHz operation
• WiFi, Bluetooth, Zigbee and ISM Band 2450MHz compatible


BLE
Bluetooth
E
Embedded
ISM
2450
WLAN
2400
ZB
Zigbee


RoHS
Compliant

Datasheets

Echo 18 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots

Ordering Information

Siretta Part Number: ECHO18/0.1M/UFL/S/S/15
Description: WiFi / WLAN PCB Antenna 100mm uFL

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
