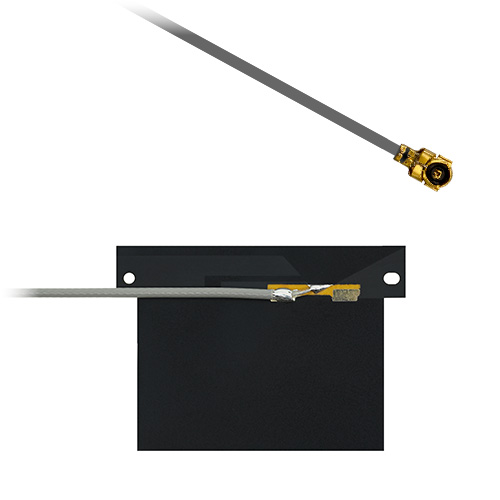

Echo 28BFlexible Printed Circuit Board Dual Band WiFi 2.4GHz/5.8GHz Antenna

The Echo 28b in an improved dual band design for WiFi / WLAN Flexible Printed Circuit Board (FPC) antenna. It is tuned to both the 2.4 to 2.5GHz band and 5.1 to 5.8GHz band supporting: WiFi, Bluetooth, Zigbee and ISM based applications.

The FPC design means the Echo 28b is capable of curving around objects. Providing a unique way of integrating the antenna compared to a rigid PCB design.

Alternative cable lengths and connector types to the standard product can be specified for moderate volume orders.

Key Features

• Flexible radiating element
• WiFi, Bluetooth & ZigBee compatible
• 2.4 to 2.5GHz and 5.1 to 5.8GHz operating frequencies
• Designed for embedded integration
• Thin lightweight design for small spaces
• Meets all EU compliance criteria for electronic goods

Electrical Specifications

• Operating temperature: -10 – +60°C
• Storage temperature: -10 – +70°C
• Impedance: 50 Ohm
• Peak Gain: 3.0dBi @2.47GHz (excluding cable loss)
• VSWR: ≤1.5:1
• Frequency Range: 2.4GHz – 2.5GHz 5.15GHz – 5.8GHz
• Radiation: Omni
• Polarization: Vertical

Mechanical Specifications

• Dimensions: L33 x W23.4 x H1mm excludes cable and connector
• Cable: 1.13mm Ø
• Weight: 40 g
• Connector: IPEX
• Mounting Method: Embedded
