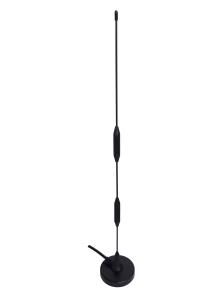

Mike 15IP65 4G / LoRa Magnetic 460mm Whip Antenna

The Mike 15 is a high-performance 4G LTE antenna that also excels in providing reliable wireless connectivity for Bluetooth, Wi-Fi, and ISM LoRa applications.

Designed for versatile use, the Mike 15 supports 4G LTE networks while also performing exceptionally well in the 2.4 GHz band, making it ideal for Bluetooth and Wi-Fi communications. Additionally, it covers the 868/915 MHz ISM bands, ensuring strong connectivity for LoRa and other IoT applications.

With its magnetic mount, the Mike 15 allows for quick and damage-free installation and removal on any surface. It is also IP65-rated, making it a robust choice for outdoor use in demanding environments.

Custom connector options and cable lengths are available for larger orders to suit specific installation needs.

• Magnetic Mount
• Quad band 2G GSM/GPRS, 3G and 4G Frequency Coverage
• 5dBi Peak Gain


Product Features
2G
GSM
3G
UMTS
4G
LTE
5G
NR
BLE
Bluetooth
HNT
Helium
IP
65
ISM
433
ISM
450
ISM
458
ISM
868
ISM
915
ISM
2450
LoRa
Wireless
M
Magnetic
SF
Sigfox
W
Weightless
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WLAN
2400
ZB
Zigbee
z
wave

Cellular Band Support
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B13
B14
B17
B18
B19
B20
B21
B24
B25
B26
B27
B28
B28A
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B41
B44
B45
B50
B51
B53
B65
B66
B67
B68
B69
B70
B72
B73
B74
B75
B76
B103

5G NR Band Support
n1
n2
n3
n5
n7
n8
n13
n14
n18
n20
n24
n25
n26
n28
n30
n34
n38
n39
n41
n50
n51
n53
n65
n66
n67
n70
n74
n75
n76
n80
n81
n82
n84
n86
n89
n90
n91
n92
n93
n94
n95
n98
n99
n101

Environmental Support
RoHS
Compliant

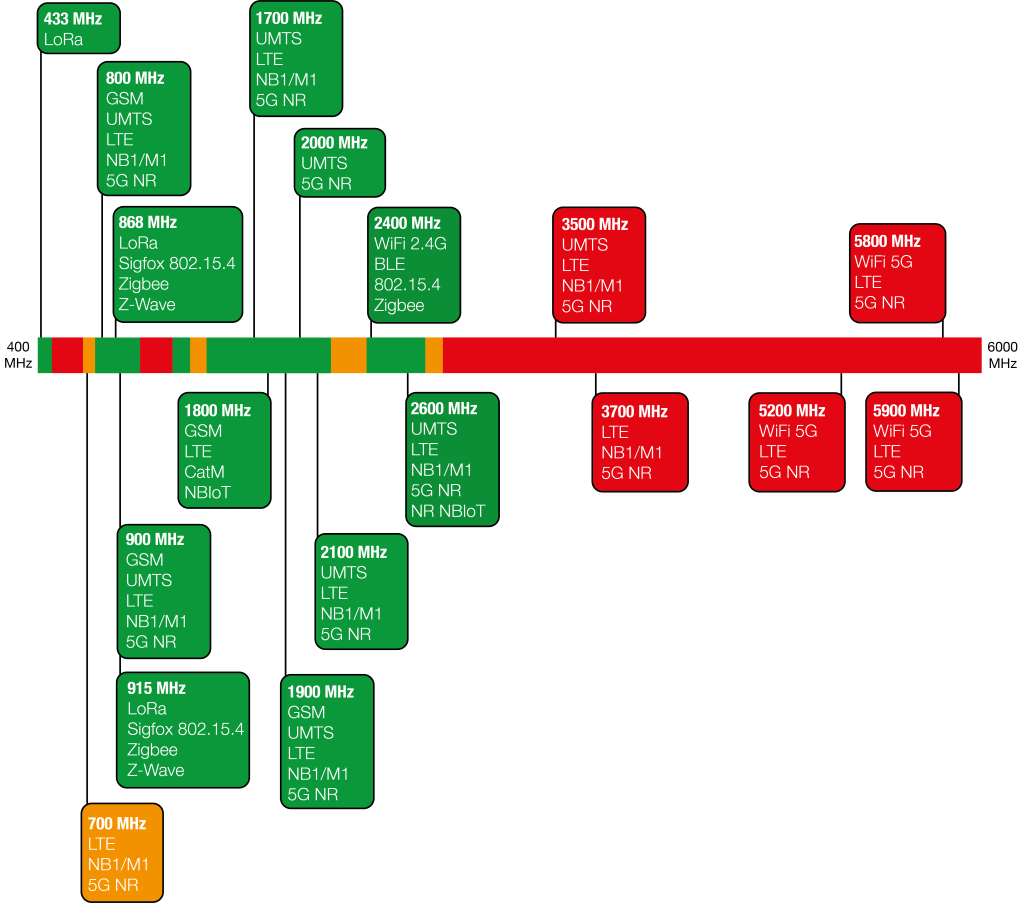

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.



MIKE 15 IP Test Certificate
Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
Mike 15 Datasheet
IP Rating Guide

Ordering Information

Siretta Part Number: MIKE15/2.5M/FMEF/S/S/26
Description: LoRa/SigFox/Bluetooth/Zigbee Magnetic 460mm Whip Antenna FME Female Connector 2.5M Cable

Request For Quote

Siretta Part Number: MIKE15/2.5M/SMAM/S/S/26
Description: LoRa/SigFox/Bluetooth/Zigbee Magnetic 460mm Whip Antenna SMA Male Connector 2.5M Cable

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders.
