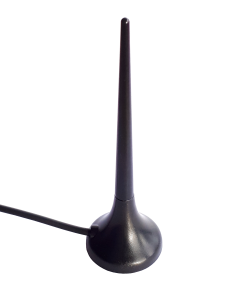

Mike 1C5G / 4G / Dual Band Wi-Fi 6 Stubby Magmount Antenna

The Mike 1C magnetic mount antenna is a versatile wide-band antenna for a multitude of systems needs across all cellular systems from 2G (GSM/GPRS), 3G, 4G to 5G.

The antenna is also well suited to Wi-Fi, Bluetooth, Zigbee, LoRa, Sigfox applications.

Typical applications for this antenna are utility metering, alarm panels and sensor monitoring.

A variety of connector options and cable lengths are available, and others can be specified for volume orders

  • Supports cellular networks from 5G NR, 4G LTE, 3G UMTS, to Quad-band 2G GSM
  • Supports LTE Cat M, LTE Cat NB, NR Cat NB
  • Supports Dual-Band Wi-Fi 2.4 GHz & 5 GHz Bands
  • Supports all 2.4G applications: Bluetooth, Zigbee, ISM 2.4 GHz & IEEE 802.15.4
  • Supports LoRa, Sigfox, ISM 868 MHz, ISM 915 MHz bands
  • Magnetic mount
  • Ground Plane Independent


2G
GSM
3G
UMTS
4G
LTE
5G
New Radio
BLE
Bluetooth
HNT
Helium
IEEE
802.15.4
ISM
2450
ISM
5800
ISM
868
ISM
915
LoRa
Wireless
M
Magnetic
SF
Sigfox
W
Weightless
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI
2.4G & 5G
WLAN
2400
WLAN
5800
ZB
Zigbee
z
wave


RoHS
Compliant

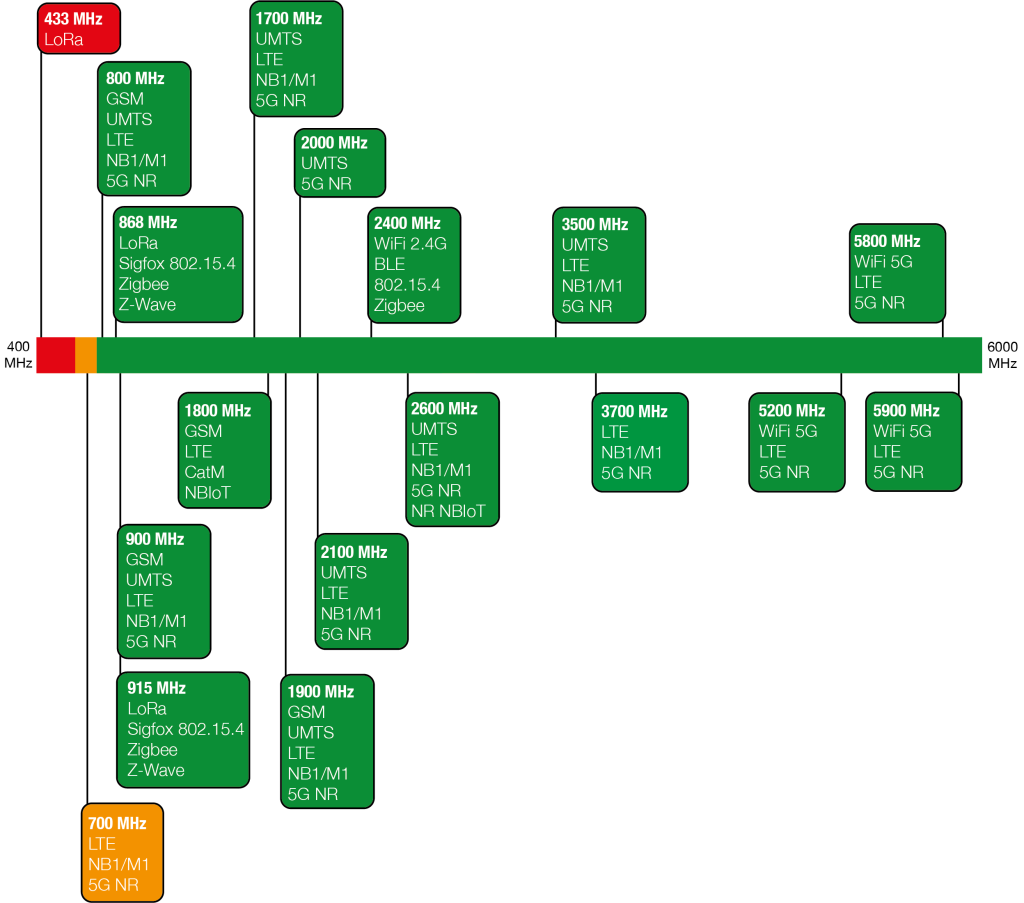

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

Mike 1C Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: MIKE1C/1.5M/SMAM/S/S/19
Description: 5G/4G/Dual Band Wi-Fi Stubby Magmount Antenna SMA Male Connector 1.5M Cable

Request For Quote



Siretta Part Number: MIKE1C/2M/SMAM/S/S/19
Description: 5G/4G/Dual Band Wi-Fi Stubby Magmount Antenna SMA Male Connector 2M Cable

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders.
