Mike 2A5G/4G Magnetic 311mm Whip Antenna

The Mike 2A is a ½ wave omni-directional antenna that operates on quad band 2G, 3G, 4G, 5G LTE and ISM 868 and 915 frequencies.

The Mike 2A comes with a magnetic base giving good stability.

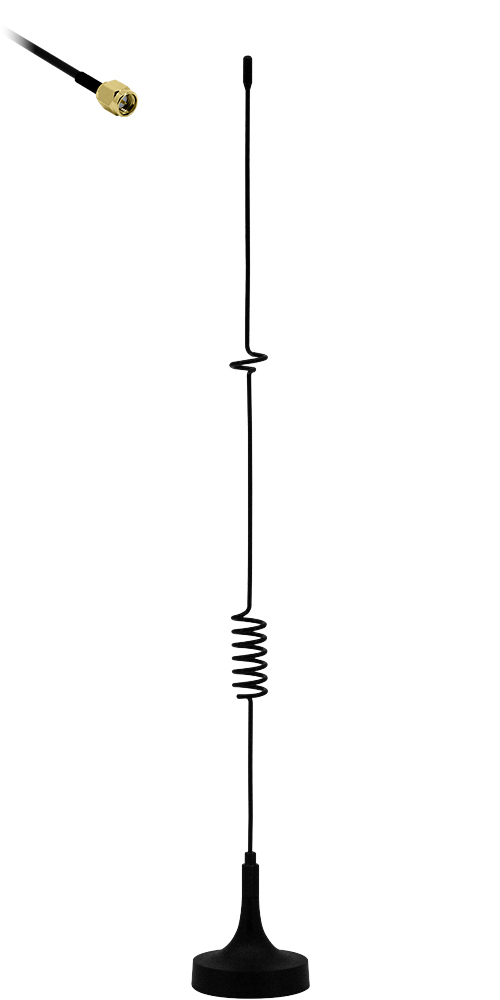

As standard, the Mike 2A comes with an SMA Male on RG174 cable or a low loss variant.

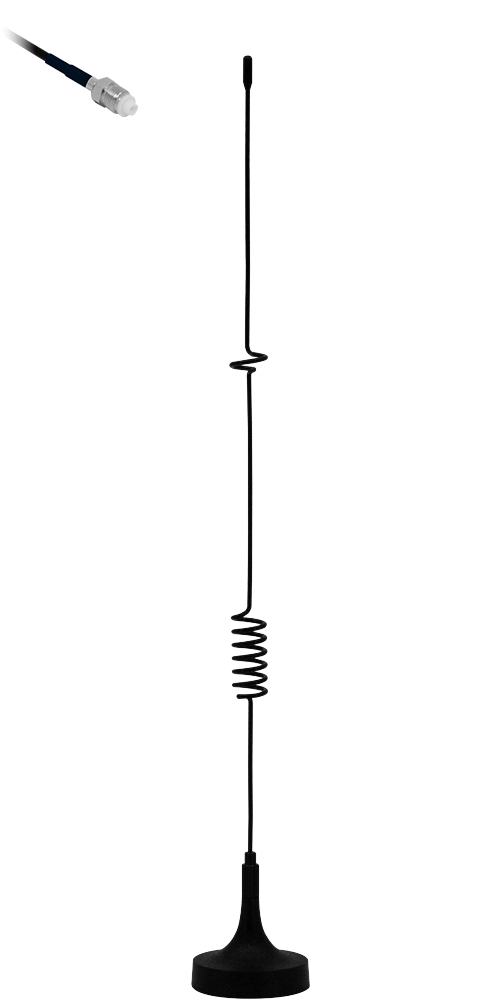

The antenna is also available as standard with an FME Female connector on.

Alternative cable lengths and connector types can be fitted for small volume orders.

Key Features

• Supports 5G NR / 4G LTE / 3G UMTS / 2G Quad-band GSM
• Supports LTE Cat M, LTE Cat NB, NR Cat NB
• Supports LoRa, Sigfox, IMT 868 MHz, ISM 915 MHz bands
• Allows quick and easy implementation into target applications
• Magnetic mounting allows versatility in positioning

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Vertical
• Max Input Power: 10 W
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -40 to +85 °C
• Storage Temperature range: -40 to +85 °C

Mechanical Specifications

• Dimensions: 311 mm (Height) x 40 mm (Base)
• Weight: 4.8 g
• Cable: RG174 or Low Loss LMR100
• Connector: SMA Male
• Mounting method: Magnetic
• Housing materials: ABS
