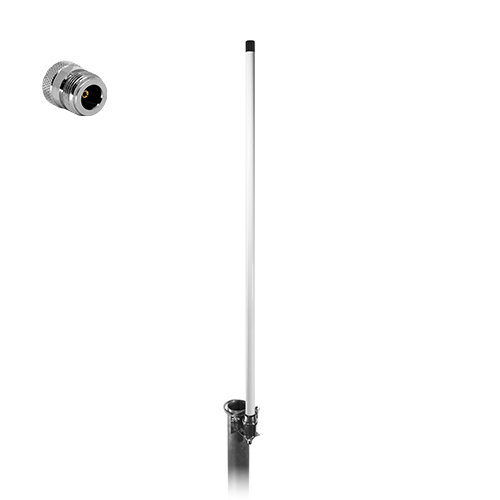

Oscar 17

The Oscar 17 is an Omni-directional wall / bracket mount antenna, operating on 5G/NR and 4G/LTE as well as some GSM/GPRS (2G) and 3G/UMTS frequencies.

Its high-quality monopole design provides a peak gain of 10dBi within its operating frequency range for improved site communication.

Supplied with a lightweight, durable aluminium mounting bracket, the antenna is designed for outdoor use to improve cellular signal strength reception and transmission.

Common applications for the Oscar 17 include base stations, remote monitoring and alarm/security systems.

Cable assemblies to match the antenna and device connectors are available from Siretta in the RF Cables Section.

Supports some bands of 5G NR / 4G LTE / 3G UMTS / 2G GSM
Supports Dual-band 2.4 GHz/5 GHz Wi-Fi
Supports Bluetooth, Zigbee, ISM 2.4 GHz, ISM 5.8 GHz
Omnidirectional
Ideal base station antenna
Selection of cable assemblies available – see ordering information tab

GSM

UMTS

LTE

New Radio

BLE

Bluetooth

IEEE

802.15.4

ISM

2450

ISM

5800

Wall/Pole

WIFI 4

802.11n

WIFI 5

802.11ac

WIFI 6

802.11ax

WIFI

2.4G & 5G

WLAN

2400

WLAN

5800

Zigbee

RoHS

Compliant

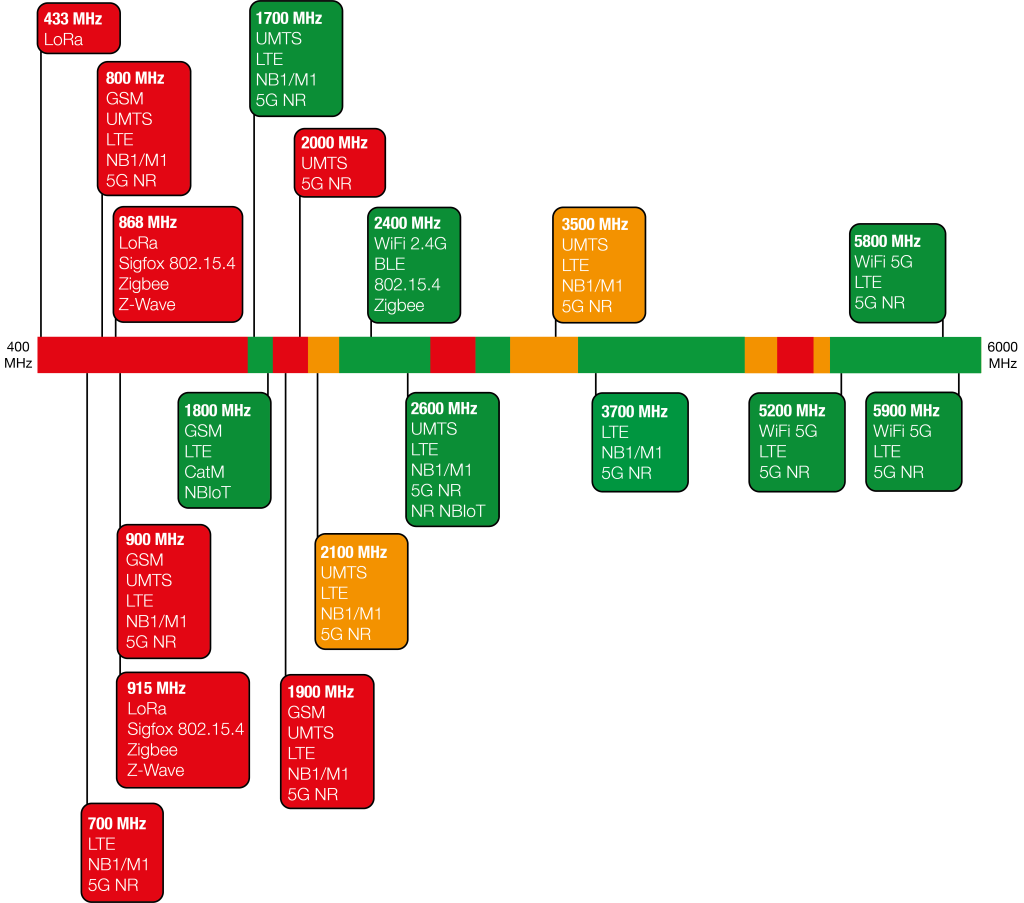

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
