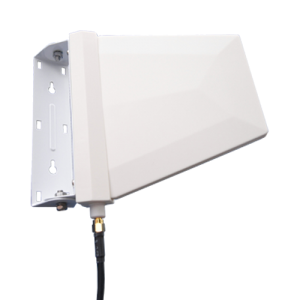

Oscar 20A5G / 4G / LoRa / Sigfox / Bluetooth / Zigbee Directional Yagi Antenna

The Oscar 20A antenna is a high gain, wide frequency range antenna for connectivity in remote environments where a point-to-point link is the only effective method of communication between equipment and single cell site.

It is recommended to be used in fixed locations where the base station direction is known.

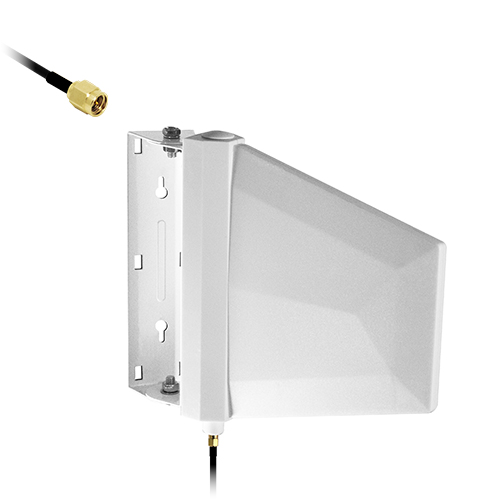

Designed for indoor or outdoor environments the antenna is supplied with a hinged mounting bracket and 5 meters of cable with an SMA male termination (The antenna has an SMA Female connector).

The advantage of using a yagi type antenna is to improve performance over omnidirectional antennas whist keeping the small size.

See the Snyper cellular signal tester for a tool to locate the best base station in your area.

Key Features

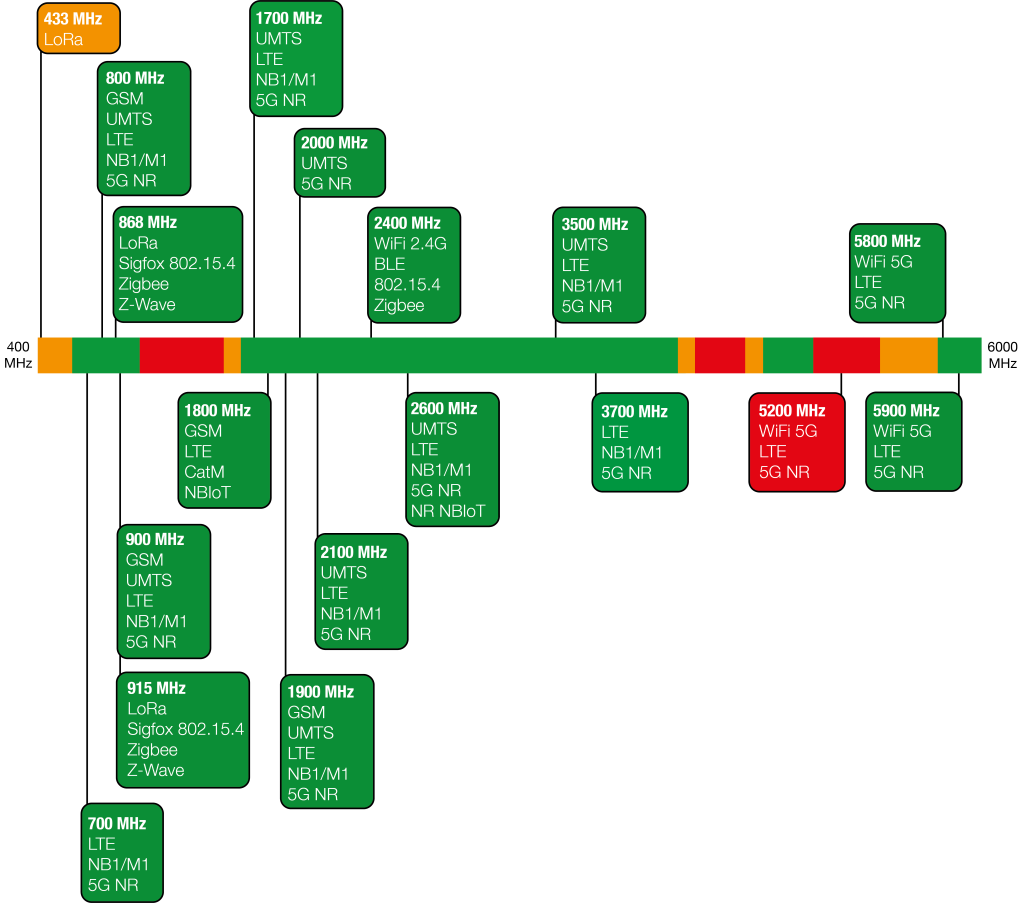

• Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM
• Supports LTE Cat M, LTE Cat NB, NR Cat NB bands
• Supports Wi-Fi 2.4 GHz / WLAN 2400 / ISM 2400 / Bluetooth / Zigbee bands
• Supports LoRa / Sigfox / ISM 433 / ISM 868 / ISM 915 / ISM 5800 / IEEE 802.15.4 bands
• Highly sensitive
• Small size
• Suitable for Indoor and Outdoor use

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Vertical
• Max Input Power: 50 W
• Ground plane independent: No

Environmental Specifications

• Operating Temperature range: -35 to +75 °C
• Storage Temperature range: -40 to +80 °C

Mechanical Specifications

• Dimensions: W147 x L176 x H27 mm
• Weight: 430 g (includes the 5 metres cable)

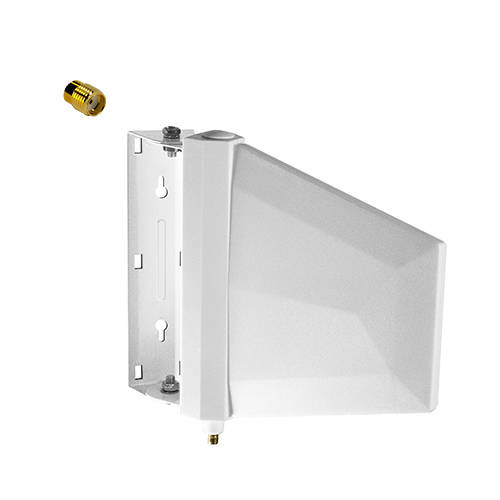

• Connector: SMA (Female) / SMA (Male)
• Antenna Cable: RG58U Low Loss
• Housing materials: ABS
