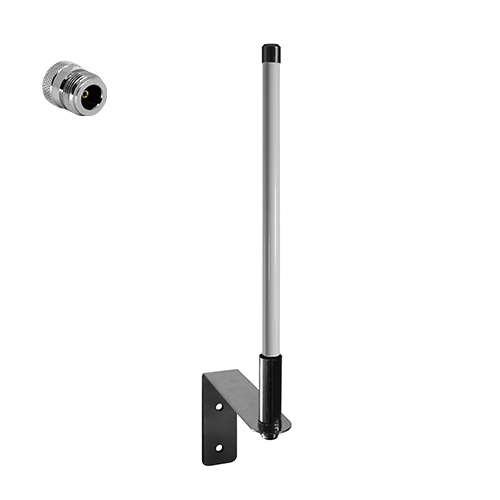

The Oscar 42 is a compact, weather resistant, Quad band GPRS/3G and 4G multiband antenna designed for wall / bracket mounting. The Oscar 42 is weather resistant in its construction and comes with a stainless steel wall mounting bracket.

The antenna itself is fixed to the bracket using the supplied nut and washer.

Suitable cables for the Oscar 42 are available from Siretta (see ‘RF Cables’ section). Popular cable lengths are 5m, 10m and 15m.

• Compact design at 300mm length
• 700-960, 1700-2700MHz range
• Gain: 1dB (700-960MHz), 4dB (1.7-2.7GHz) typical


2G
GSM
3G
UMTS
4G
LTE
O
Wall/Pole

Datasheet

Oscar 42 Datasheet

Ordering Information

Siretta Part Number: OSCAR42/X/NTYPEF/S/S/19
Description: Fibreglass compact 3G/4G omni-directional antenna N-Type Female Connector

Request For Quote

Cable Assemblies to suit different devices and applications can be found in the ‘RF Cables’ section
